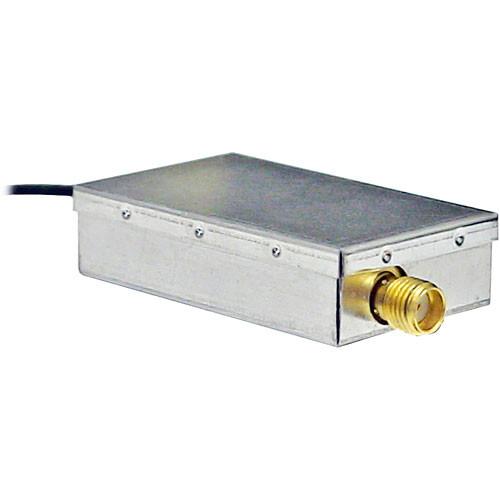

User Manual for RF-Links MX-3000B Ultra Compact 2.4 GHz Video & Audio Transmitter Click to enlarge the picture
Contents of the user manual for the RF-Links MX-3000B Ultra Compact 2.4 GHz
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links MX-3000B Ultra Compact 2.4 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video MX-3000B is an industrial grade 2.4 GHz transmitter capable of sending superior quality video and audio wirelessly up to 3 miles in open air. Its ultra compact size plus its tolerance for extreme high and low temperatures make it particularly useful for military applications. It is also a viable option for surveillance, scientific and numerous other fields and applications. - Withstands extremely high and low temperatures, ideal for military applications
- Features 8 easy to change channels
- Broadcast quality video and sound
- Tested to transmit up to 3000 ft (1 km) in open air
- Accepts SMA type antennas
In the Box RF-Links MX-3000B Ultra Compact 2.4 GHz Video & Audio Transmitter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links MX-3000B Ultra Compact 2.4 GHz Video & Audio Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links MX-3000B Specs | Signal System | NTSC/PAL | | Operating Frequency | 2.4 GHz | | Channels | 8 (selectable) | | RF Power Output | 50mW | | Modulation | WFM | | Antenna | Not included (requires SMA type antenna) | | Impedance | 50 ohms | | Wireless Range | Up to 3000 ft (1 km) | | Video Input | Open wire | | Audio Input | Open wire | | Power Requirements | 12 VDC | | Power Consumption | 160mA | | Operating Temperature | -40 ~ 168°F (-40 ~ +75°C) | | Dimensions (WxHxD) | 1 x 0.3 x 1.7" (25.4 x 7.6 x 43.2mm) | | Weight | 0.63 oz (18 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 5.5 x 4.5 x 0.75" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
