User Manual for RF-Links MX-4000 Miniature 2.4GHz Video Transmitter Click to enlarge the picture
Contents of the user manual for the RF-Links MX-4000 Miniature 2.4GHz Video Transmitter
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links MX-4000 Miniature 2.4GHz Video Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|

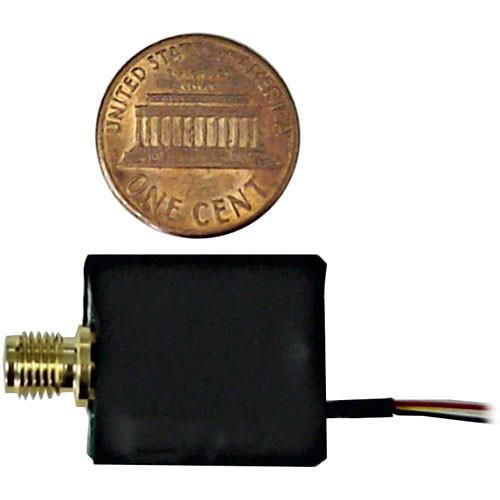

Product description The RF-Video MX-4000 is an ultra compact 2.4GHz video transmitter. At only about the size of a penny, this unit is one of the world's smallest and lightest wireless video transmitters. Despite its miniature size, this unit is capable of transmitting surprisingly high quality over long distances which can then be captured by a receiver and viewed on any TV monitor.
Its small size allows it to be easily placed virtually anywhere or carried around in a pocket, making it an excellent choice for hidden surveillance applications. Furthermore, with its ability to withstand very high and low temperatures, it is also a very useful tool for field use in military, law enforcement, science, exploration and similar applications involving outdoor use in extreme conditions. - Miniature video transmitter suitable for covert surveillance applications (0.7 x 0.35 x 0.8")
- Tested to transmit up to 2 miles in the air using radio controlled model airplanes
- Operates in extremely low and high temperatures
- Supports 4 single channels
- Compatible with NTSC and PAL video systems
In the Box RF-Links MX-4000 Miniature 2.4GHz Video Transmitter (250 mW) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links MX-4000 Miniature 2.4GHz Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links MX-4000 Specs | Signal System | NTSC/PAL | | Operating Frequency | 2300-2500 MHz | | Modulation | WFM | | Channels | 1-4 Single channels | | RF Power Output | 250 mW | | Antenna | Not included (requires SMA type antenna) | | Impedance | 50 ohms | | Wireless Range | Up to 2 miles (3 km) line of sight | | Video Input | Open wire | | Audio Input | No | | Power Requirements | 5 VDC (open wire) | | Power Consumption | 189-460mA | | Operating Temperature | -40 ~ 167°F (-40 ~ +75°C) | | Dimensions (WxHxD) | 0.7 x 0.35 x 0.8" (17.78 x 8.89 x 20.32mm) | | Weight | 0.2 oz (6 g) |
