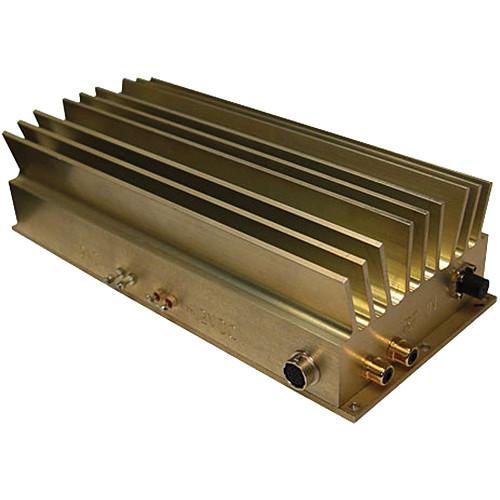

Product description The RF-Video Programmable 100 Watt 1.7 GHz A/V Transmitter is a special design for Military applications capable of working in extremely low or high temperature ranges. This video transmitter gives over 100 watts RF power. This audio/video transmitter is fully programmable from 1,690 to 1,900 MHz. It has been designed for Aeronautic/Space experiments and Special Military applications. This audio/video transmitter must be mounted on a larger metal surface to cool it down. The special LCD programmer is included with the unit. This transmitter works from 12 VDC/22A. Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links Programmable 100 Watt 1.7 GHz A V Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LX-100PM Specs | Channel | Fully programmable from 1,690 MHz to 1,900 MHz with an external programmer | | Operating Frequencies | 2,300 to 2,500 MHz | | RF Power | 100 W | | Minimum Required Voltage | 10 V | | Battery Power | 12.6 V | | Maximum Range | >60 km (line of sight) | | Video Format | NTSC, PAL | | Current Consumption | 22A / 12 VDC | | Antenna | N/A | | Dimensions | 9 x 2.5 x 3.9" / 22.9 x 6.4 x 9.9 cm | | Weight | 2.9 lb / 1.3 kg |
