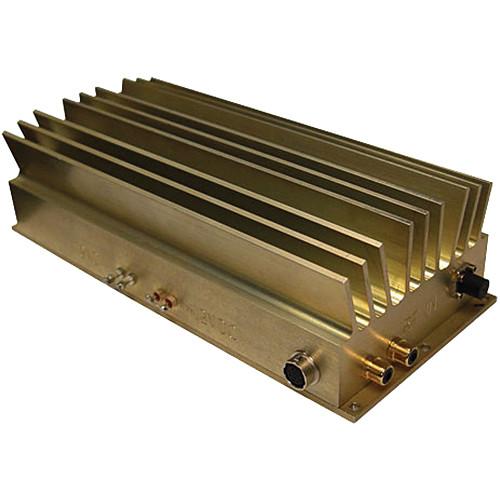

User Manual for RF-Links Programmable 100 Watt 2.4 GHz Audio Video Transmitter Click to enlarge the picture
Contents of the user manual for the RF-Links Programmable 100 Watt 2.4 GHz
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links Programmable 100 Watt 2.4 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description RF-Video's Programmable 100 Watt 2.4 GHz Audio/Video Transmitter is suitable for use in extremes of cold or hot, and is designed for use in aeronautic, aerospace, or military applications. The video transmitter supports NTSC and PAL video, with a separate video and audio input and a local monitor output. The unit must be attached to a large metal surface for heat dissipation during use.
Included with the transmitter is an LCD programmer that allows you to set the transmitter to operate on any frequency from 2,290 to 2,500 MHz. The unit draws 20 amps at 12 volts DC, producing 100 watts of RF transmission power. Please note this item is only for sale to government agencies and is not for commercial use in the United States. - The transmitter features 100W of RF transmission power translating into approximately 37 miles line-of-sight transmission.
- The included special LCD programmer gives you full control of setting transmission frequency from 2.29 to 2.5 GHz.
- This transmitter works in temperature extremes beyond the capabilities of most human beings, from -40 degrees to over 172 degrees Fahrenheit. It is recommended that the transmitter be mounted to a large piece of metal to assist with heat dissipation.
- It draws about 20 amps at about 12 volts DC
In the Box RF-Links Programmable 100 Watt 2.4 GHz Audio/Video Transmitter Special LCD Programmer Unit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links Programmable 100 Watt 2.4 GHz Audio Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LX-100P Specs | Signal System | NTSC, PAL | | Operating Frequencies | 2300 MHz- 2500 MHz Programmable by special LCD controller | | Channels | Agile channels from 2300 - 2500 MHz in 250 kHz steps | | RF Power | 100 W | | Power | Min: 10 VDC minimum
Max: 12.6 VDC maximum
Recommended: 12 VDC
Current Consumption: 18 to 20 A / 12.6 VDC | | Video Distortion | 2% | | Range | Line-of-Sight: over 37.3 miles / 60 km | | Antenna Connector | SMA | | Impedance | 50 Ohms | | Audio Input | 300 MV | | Connectors | Video: RCA, female
Audio: RCA, female | | Video Level | 1 V | | Modulation | WFM | | Video Impedance | 75 Ohms | | Temperature Range | -40 to 172.4°F / -40 to 78°C | | Dimensions | 10 x 4 x 3" / 25.4 x 10.2 x 7.6 cm | | Weight | 2.9 lb / 1.3 kg |
