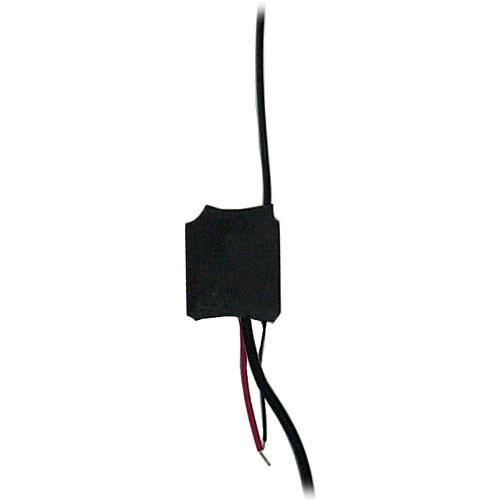

User Manual for RF-Links SDX-22LP Low Power Video Transmitter Click to enlarge the picture
Contents of the user manual for the RF-Links SDX-22LP Low Power Video Transmitter
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links SDX-22LP Low Power Video Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video SDX-22LP is not only incredibly small but also requires very low DC voltage in order to operate. This makes it an excellent choice for mobile application where size and battery power are two of the most crucial factors in determining a transmitter's effectiveness. - Requires only 6 volts of DC power in order to operate
- Ultra compact and lightweight transmitter, ideal for covert and mobile surveillance
- Withstands extreme high and low temperatures
- Compatible with NTSC and PAL video systems
In the Box RF-Links SDX-22LP Low Power Video Transmitter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links SDX-22LP Low Power Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links SDX-22LP Specs | Signal System | NTSC/PAL/SECAM | | Operating Frequency | 2.4 GHz | | Channels | Single channel | | RF Power Output | 35mW | | Modulation | Not Specified by Manufacturer | | Antenna | Not included (requires SMA type antenna) | | Impedance | 50 ohms | | Wireless Range | Not Specified by Manufacturer | | Video Input | Open wire | | Audio Input | No | | Power Requirements | 4.5-6.5 VDC | | Power Consumption | 60mA | | Operating Temperature | -15 - 172°F (-26 ~ +78) | | Dimensions (WxHxD) | 0.5 x 0.12 x 0.5" ( 12.7 x 3 x 12.7mm) | | Weight | 0.07 oz (2 g) |
