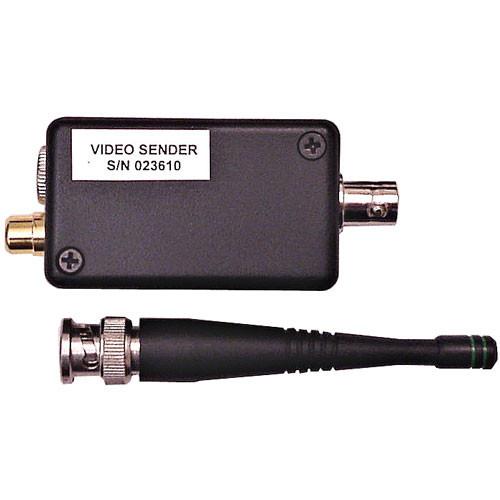

User Manual for RF-Links SPX-50 20U Ultra Compact High Power 507.25 MHz UHF Video Sender for TV Applications Click to enlarge the picture
Contents of the user manual for the RF-Links SPX-50 20U Ultra Compact High
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links SPX-50 20U Ultra Compact High contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video SPX-50/20U is an ultra compact and economically priced transmitter capable of sending broadcast quality video wirelessly for relatively long distances within an on-site location. Transmitted video can be picked up by any TV or VCR tuned to UHF channel 20, eliminating the need to acquire a separate receiver.
Going wireless has numerous practical applications in TV and film production. For example, it allows a director sitting at a video station to monitor in real time the progress of an episode as it is being shot by Steadicam operators.
It also allows news reporters to broadcast live as they are moving around an area or going from one person to another for interviews, without the limitations imposed by the use of physical video cables. - Ultra compact and low-cost wireless video transmitter for TV and film production applications
- Broadcasts over UHF TV channels
- Tested to transmit wirelessly up to 1500 feet (line of sight)
- Perfect for use by Steadicam operators
- Includes matching rubber ducky antenna
- Accepts various optional BNC type antennas
In the Box RF-Links SPX-50/20U Ultra Compact High Power 507.25 MHz UHF Video Sender for TV Applications (UHF Channel 20) Matching antenna 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links SPX-50 20U Ultra Compact High Power 507.25 MHz UHF Video Sender for TV Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links MX-50/18U Specs | Signal System | NTSC/PAL | | Operating Frequency | 507.25 MHz | | Modulation | Negative AM | | Channels | UHF TV Band Channel 20 | | RF Power Output | 250 mW | | Antenna | Includes matching rubber antenna (BNC type) | | Impedance | 50 ohms | | Wireless Range | Up to 1500 ft (460m) | | Video Input | RCA x1 | | Audio Input | No | | Power Requirements | 12-14 VDC | | Power Consumption | 120mA | | Operating Temperature | -40 ~ 167°F (-40 ~ +75°C) | | Dimensions (WxHxD) | 1.9 x 0.8 x 3.9" (48.3 x 20.3 x 99mm) | | Weight | 2.8 oz (80 g) |
