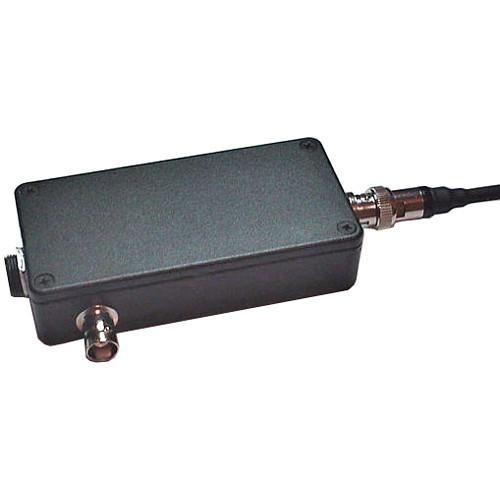

Product description Designed for Steadicam users and other TV/film production applications, the RF-Video SPX-68V UHF Transmitter operates within the 471.25 MHz - 801.25 MHz frequencies and has all UHF channels from CH14 - CH69. It's compact, measuring only 3.9" x 1.9", and offers a transmission range up to 600 ft line-of-sight with an omni dipole antenna and up to 1000 ft with a high gain antenna. Antennas are sold separately. In the Box RF-Links SPX-68V UHF High Power Video Transmitter 471.25 MHz - 801.25 MHz Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links SPX-68V UHF High Power Video Transmitter 471.25 MHz - 801.25 MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links SPX-68V Specs | Operating Frequencies | 471.25 - 801.25 MHz | | Channels | CH14 - 69 UHF | | DC Voltage | 12 V | | RF Power | 100 mW | | Minimum Required Voltage | 12 V | | Battery Power | 12 - 32 V max | | Frequency Stability | 2 ppm | | Video Distortion | 2% | | Maximum Range | 1000 ft (305 m) with high gain antenna | | Video Format | NTSC | | Current Consumption | 190 mA / 12 V | | Antenna | Omni dipole or high-gain supported (not included) | | Antenna Connector | BNC | | Impedance | 50 ohms | | Video Connector | BNC | | Video Impedance | 75 ohms | | Video Level | 1 V | | Modulation | Negative AM | | Temperature Range | 5 to 149°F (-15 to 65°C) | | Dimensions | 3.9 x 1.9 x 0.8" (9.9 x 4.8 x 2 cm) | | Weight | 2.8 oz (80 g) |
