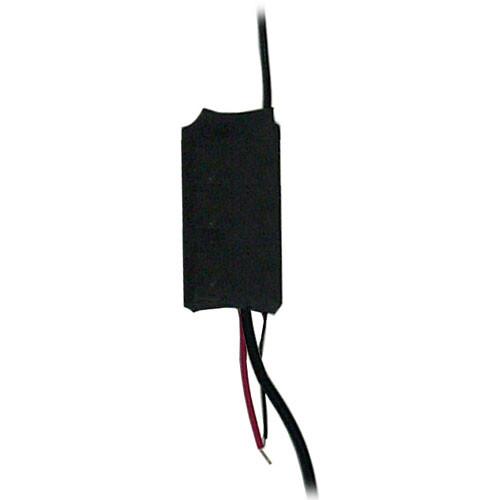

User Manual for RF-Links SPX-916 900 MHz 50mW Video Transmitter Click to enlarge the picture
Contents of the user manual for the RF-Links SPX-916 900 MHz 50mW Video
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links SPX-916 900 MHz 50mW Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video SPX-916 is an ultra compact yet high powered 900 MHz video transmitter. To give you an idea of its power, this transmitter has the ability to transmit great looking video images from a concrete enclosed basement all the way up to the 4th floor of a building. This level of performance coupled with its incredibly small size makes it ideal for use in specialized wireless monitoring applications. Another unique advantage of this transmitter is that it comes pre-wired with an RCA video connection, 9-volt battery snap and antenna. This makes it one of the few miniature wireless transmitters ready to use out of the box. - Ultra compact transmitter, ideal for hidden, portable, and experimental wireless applications
- Comes pre-wired with RCA video input, 9-volt battery snap and antenna
In the Box RF-Links SPX-916 900 MHz 50mW Video Transmitter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links SPX-916 900 MHz 50mW Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links SPX-916 Specs | Signal System | NTSC/PAL | | Operating Frequency | 916 MHz | | Channels | 1 | | RF Power Output | 50mW | | Modulation | WFM | | Antenna | Hard-wired | | Impedance | 75 ohms | | Wireless Range | 1000 ft (305m) | | Video Input | RCA Male | | Audio Input | No | | Power Requirements | 9 VDC | | Power Consumption | 48mA | | Operating Temperature | -4 ~ 168°F (-20 ~ +75°C) | | Dimensions (WxHxD) | 1.4 x 0.6 x 0.12" (36 x 15 x 3mm) | | Weight | 0.28 oz (8 g) |
