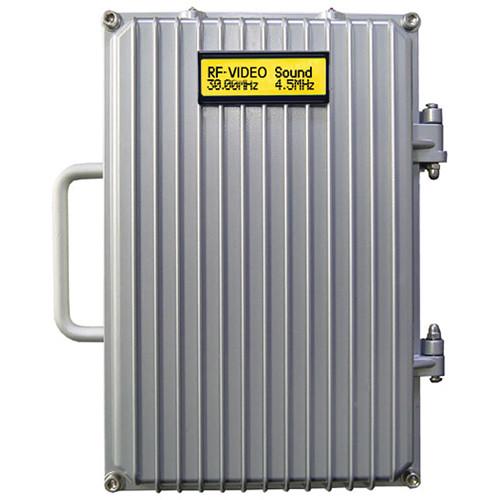

Product description The RF-Video TVX-30900/1 is a fully-synthesized, military-grade audio/video transmitter that operates within the 30 MHz - 920 MHz frequency bands. It outputs 1000 mW RF power and offers a transmission distance from 1 to 30 miles, depending on the antenna used. A standard directional antenna is included. Sales are limited to government/military agencies exclusively.
Frequency is selectable via two push-button switches, without any tuning required. A digital display shows the selected channel and sound carrier frequency, which is adjustable from 4.5 MHz - 6.5 MHz. This transmitter is fully mobile and works on 12 VDC. - Key Features
-
- Fully-synthesized, military-grade audio/video transmitter
- Operates within the 30 MHz - 920 MHz frequency bands
- 1000 mW RF output power
- 1 - 30 mile transmission distance, depending on the antenna
- Standard directional antenna is included
- 4.5 MHz - 6.5 MHz sound carrier frequency
- Push-button frequency selection
- Digital display shows the selected channel and sound carrier frequency
- NTSC/PAL compatible
- Sales are limited to government/military agencies exclusively
In the Box RF-Links TVX-30900/1 Audio/Video Transmitter 30 MHz - 920 MHz Directional Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links TVX-30900 1 Audio Video Transmitter 30 MHz - 920 MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links TVX-30900/1 Specs | Operating Frequencies | 30 - 920 MHz | | Channels | Externally selectable | | DC Voltage | 12 - 14.4 V | | RF Power | 1000 mW (+/-10%) | | Minimum Required Voltage | 9 V | | Battery Power | 12.6 V | | Video Distortion | 1% | | Transmission Range | 1 - 30 miles, depending on antenna (standard directional antenna included) | | Video Format | NTSC/PAL | | Current Consumption | 1400 mA / 6000 mA / 12.6 V | | Audio Input | 300 mV | | Antenna Connector | BNC (50 ohms impedance) | | Video Connector | BNC (75 ohms impedance) | | Video Level | 1 V | | Audio Carrier Frequencies | 4.5 MHz, 5 MHz, 5.5 MHz, 6 MHz (all adjustable internally) | | Channel Spacing | 6 MHz | | Frequency Step | 250 kHz | | Modulation | AM negative, broadcast quality | | Temperature Range | -4 to 167°F (-20 to 75°C) | | Dimensions | 7.5 x 11 x 3.5" (19 x 28 x 9 cm) | | Weight | 7.7 lb (3.5 kg) |
