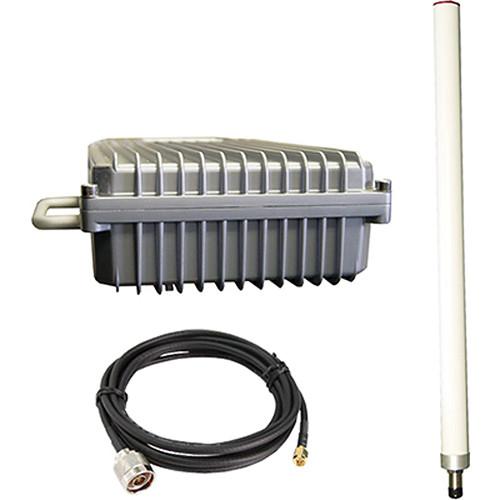

Product description The RF-Video TVX-40 MIL is a 40W high power audio/video transmitter built to military specifications. It operates within the 470 MHz - 860 MHz frequencies and offers a 20 mile line-of-sight transmission distance using an included omni-directional antenna. It is housed in a weatherproof box and is fully portable. It runs on 12 VDC and can be powered with a car battery. The signal can be picked up with any NTSC TV set. In the Box RF-Links TVX-40 MIL Portable TV UHF Transmitter 470 MHz - 860 MHz AD-4786 Omni-Directional Antenna (23", 3 dB Gain) czdtuwduzfbuezdxtaqevezscettusae 30 ft (9.1 m) RF Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links TVX-40 MIL Portable TV UHF Transmitter 470 MHz - 860 MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links TVX-40 MIL Specs | Operating Frequencies | 470 - 860 MHz | | Transmission Distance | 20 miles (32.2 km) line-of-sight | | Battery Power | 12.6 - 15 V | | RF Power | 40 W nominal, 45 W max | | Antenna Connector | N type | | Current Consumption | 8 A | | RF In/Out | 50 ohms | | Video Input | BNC, 1 V | | Video Format | NTSC | | Audio Carrier Frequency Setting | 4.5 MHz | | Channel Selection | Internal by dip-switches | | Dimensions | 9.5 x 3 x 8.5" (24 x 7.6 x 21.6 cm) |
