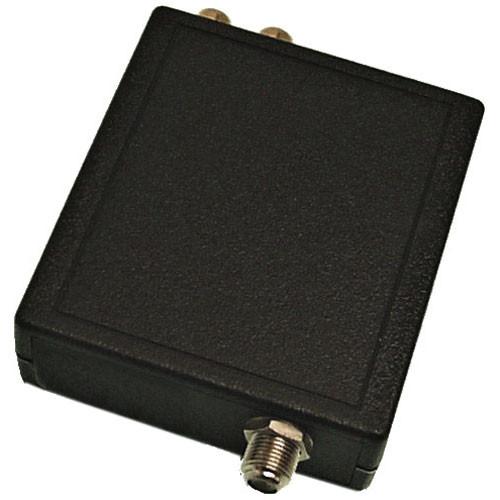

User Manual for RF-Links VRX-24 Compact 2.4 GHz Video Receiver Click to enlarge the picture
Contents of the user manual for the RF-Links VRX-24 Compact 2.4 GHz Video
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links VRX-24 Compact 2.4 GHz Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video VRX-24 is an ultra compact 2.4GHz receiver capable of accessing video signals transmitted in the 2300-2500 MHz frequency range. Its small size makes it a perfect companion for use with RF-Video's line of compact 2.4 GHz transmitters. As with an RF-Video's transmitter, this receiver unit is NTSC and PAL compatible, features 8 selectable channels and operates on optional battery power. Note: Antenna sold separately - Ultra compact design ideal for hidden and body worn surveillance
- Operates on optional battery power
- Supports 8 selectable channels
- Accepts standard SMA type antenna
- Complies with all FCC standards
- Compatible with NTSC and PAL video systems
In the Box RF-Links VRX-24 Compact 2.4 GHz Video Receiver 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links VRX-24 Compact 2.4 GHz Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links VRX-24 Specs | Signal System | NTSC/PAL | | Operating Frequency | 2300-2500 MHz | | Modulation | WFM | | Channels | 1-8 | | Antenna | Not included (requires SMA type) | | Impedance | Not Specified by Manufacturer | | Video Output | RCA x1 | | Audio Output | No | | Power Requirements | 7-12 VDC | | Power Consumption | 180 mA | | Operating Temperature | Not Specified by Manufacturer | | Dimensions (WxHxD) | 2.5 x 1 x 3" (64 x 25 x 76mm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.0 x 4.8 x 2.2" |
