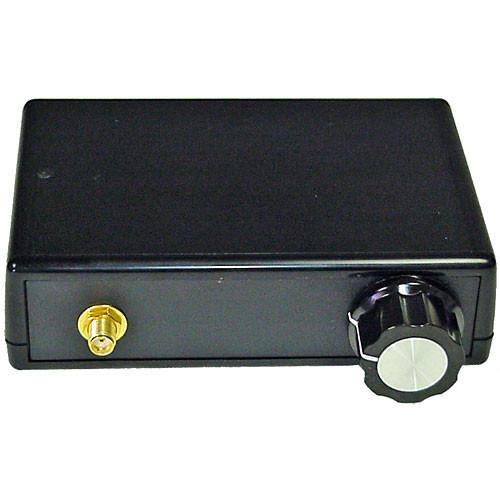

Product description The RF-Video VRX-24LTM is an industrial grade wireless receiver capable of accessing video transmitted in the 2300-2500 MHz frequency range. Through the use of AFT (Auto Frequency Tuning) technology, high quality reception is ensured, with the clarity and sharpness required in professional wireless applications. As with most RF-Video transmitters, this unit is NTSC and PAL compatible and operates on optional battery power.
The only difference between this unit and a VRX-24LTG model receiver is that this unit features a knob style dial instead of a screw-type adjuster. This type of dial is best suited for applications requiring frequent fine tuning to achieve the best picture quality. Note: Antenna sold separately (SMA) - Receives video signals transmitted in the 2.3-2.5 GHz frequency range
- AFT (Automatic Frequency Tuning) technology for improved signal reception
- Compatible with NTSC and PAL TV systems
- Operates on optional battery power (12 VDC)
- Low power consumption (280mA)
In the Box RF-Links VRX-24LTM 2.4 GHz Video Receiver (Knob Dial) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links VRX-24LTM 2.4 GHz Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links VRX-24LTM Specs | Signal System | NTSC/PAL | | Frequency | Tunable frequencies in 2.3-2.5 GHz band | | Modulation | Frequency Demodulation | | Channels | Any | | Tuning | Knob Dial | | Antenna | Not included (high gain, omni directional SMA antenna recommended) | | Video Output | RCA x1 | | Audio Output | No | | Power Requirements | 9-12 VDC (12 VDC for battery) | | Power Consumption | 280mA | | Operating Temperature | -4 ~ 158°F (-20 ~ +70°C) | | Dimensions (WxHxD) | 4.3 x 1 x 2.8" (109 x 25 x 71mm) | | Weight | 3.5 oz (100 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 3.0" |
