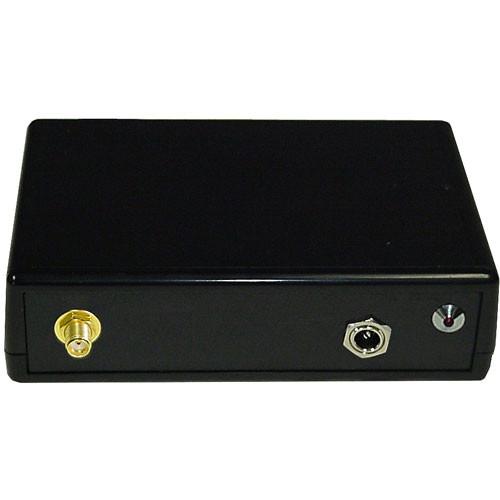

User Manual for RF-Links VRX-58S 5.8 GHz 8-Channel Compact Video Receiver Click to enlarge the picture
Contents of the user manual for the RF-Links VRX-58S 5.8 GHz 8-Channel Compact
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links VRX-58S 5.8 GHz 8-Channel Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video VRX-58S is an industrial grade wireless receiver capable of accessing video transmitted in the 5.6-5.8 GHz range. Fully synthesized, this receiver displays high quality video with the sharpness and color depth required in demanding production environments.
Its small size and its ability to withstand high and low temperature extremes, makes it an ideal choice for field and mobile use in both conventional and experimental applications. As with most RF-Video receivers, this unit is NTSC and PAL compatible and operates on optional battery power. Note: Antenna sold separately (SMA) - Fully synthesized operation
- Compact and durable unit for field and mobile use
- Operates in high and low temperature extremes
- Improved signal reception with polarity protection
- PLL (Phase Locked Loop) controlled
- Operates on optional battery power (12 VDC)
- Low power consumption (375mA)
- Accepts various SMA type antennas
In the Box RF-Links VRX-58S 5.8 GHz 8-Channel Compact Video Receiver 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links VRX-58S 5.8 GHz 8-Channel Compact Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links VRX-58S Specs | Signal System | NTSC/PAL | | Frequency | 5.6-5.9 GHz | | Modulation | WFM | | Channels | 8 (selectable) | | Tuning | Not Specified by Manufacturer | | Antenna | SMA Connector | | Video Output | RCA x1 | | Audio Output | No | | Power Requirements | 9-12 VDC (12 VDC for battery) | | Power Consumption | 375mA | | Operating Temperature | 14 ~ 149°F (-10 ~ +65°C) | | Dimensions (WxHxD) | 4.3 x 1 x 2.8" (109 x 25 x 71mm) | | Weight | 3.5 oz (100 g) |
