User Manual for RF-Links WRX-4962 Audio Video Receiver 4950 MHz - 6200 MHz Click to enlarge the picture
Contents of the user manual for the RF-Links WRX-4962 Audio Video Receiver 4950
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links WRX-4962 Audio Video Receiver 4950 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|

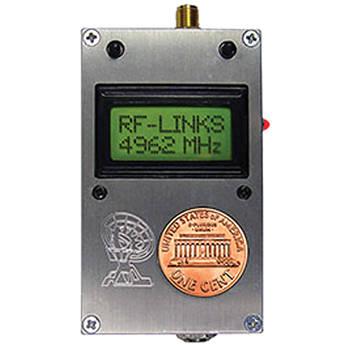

Product description The RF-Video WRX-4962 is a fully-synthesized, highly-compact video receiver measuring only 1.5" x 2.8". It operates within the 4950 MHz - 6200 MHz frequencies, which are selectable via Up/Down push buttons and displayed on a front panel LCD. Note: Because this receiver does not use a video pre-emphasis network, it is only compatible with select transmitters, such as the RF-Video SDX-58B and SDX-58H. -
- Runs on 9 - 12 VDC power
- SMA antenna connector
- Hirose audio/video connector
- 300 mA / 12 V current consumption
- WFM demodulation
- NTSC/PAL compatible
In the Box RF-Links WRX-4962 Audio/Video Receiver 4950 MHz - 6200 MHz Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links WRX-4962 Audio Video Receiver 4950 MHz - 6200 MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links WRX-4962 Specs | Operating Frequency | 4950 - 6200 MHz | | Frequency Step | 500 kHz / 1 MHz | | DC Voltage | 9 - 12 V | | Sensitivity | -88 dBm | | Minimum Required Voltage | 7 V | | Battery Power | 12 V | | Video Distortion | 2% | | Video Format | NTSC/PAL | | Current Consumption | 300 mA / 12 V | | Antenna Connector | SMA (50 ohms impedance) | | Audio/Video Connector | Hirose (75 ohms impedance) | | Video Level | 1 V | | Audio Output | 300 mV | | Demodulation | WFM | | Video Pre-Emphasis Network | No | | Temperature Range | 14 to 149°F (-10 to 65°C) | | Dimensions | 1.5 x 2.8 x 0.75" (3.8 x 7.1 x 1.9 cm) | | Weight | 1.8 oz (50 g) |
