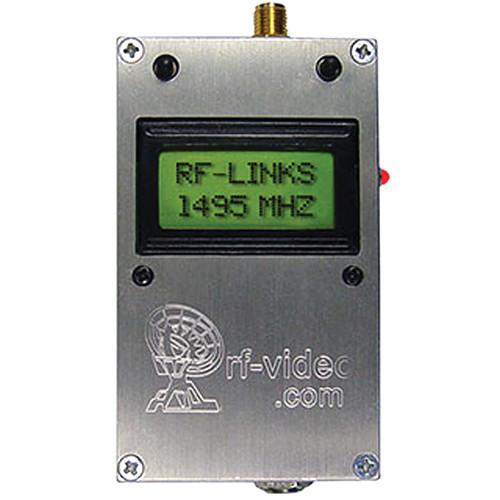

User Manual for RF-Links WTX-1020LCD Audio Video Transmitter 1 GHz - 2 GHz Click to enlarge the picture
Contents of the user manual for the RF-Links WTX-1020LCD Audio Video Transmitter 1
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links WTX-1020LCD Audio Video Transmitter 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description Designed for aeronautic and space military experiments, the RF-Video WTX-1020LCD is a highly compact audio/video transmitter capable of working in extreme high and low temperatures. It operates within the 1 GHz - 2 GHz frequency bands and offers a 1.8 mile transmission distance. Featuring a pre-emphasis video input and regular "flat" video input, it's compatible with any video receiver of matching frequencies.
Frequencies are selectable via Up/Down push-buttons and displayed on a front panel LCD. -
- 100 mW RF output
- Runs on 7.2 - 12 VDC power
- 125 kHz frequency step
- SMA antenna connector
- Hirose video connector
- 360 mA / 12 V current consumption
- WFM modulation
- NTSC/PAL compatible
In the Box RF-Links WTX-1020LCD Audio/Video Transmitter 1 GHz - 2 GHz Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links WTX-1020LCD Audio Video Transmitter 1 GHz - 2 GHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links WTX-1020LCD Specs | Operating Frequency | 1 - 2 GHz | | Frequency Step | 125 kHz | | DC Voltage | 7.2 - 12 V | | RF Power | 100 mW | | Sensitivity | -88 dBm | | Minimum Required Voltage | 9 V | | Battery Power | 9- 12 V | | Video Distortion | 2% | | Transmission Distance | 1.8 miles (3 km) line-of-sight | | Video Format | NTSC/PAL | | Current Consumption | 360 mA / 12 V | | Polarity Protection | Yes | | Antenna Connector | SMA (50 ohms impedance) | | Video Connector | Hirose (75 ohms impedance) | | Video Level | 1 V | | Audio Input | 300 mV | | Modulation | WFM | | Temperature Range | -40 to 167°F (-40 to 75°C) | | Dimensions | 2.5 x 1.5 x 0.75" (6.4 x 3.8 x 1.9 cm) | | Weight | 1.8 oz (50 g) |
