User Manual for RF-Links WTX-2400 Audio Video Transmitter for 2.4GHz, 100 mW with LCD Display Click to enlarge the picture
Contents of the user manual for the RF-Links WTX-2400 Audio Video Transmitter for
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links WTX-2400 Audio Video Transmitter for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|

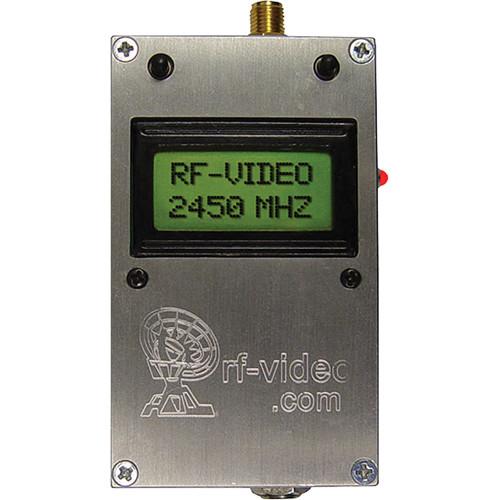

Product description The WTX-2400 Audio / Video Transmitter for 2.4GHz, 100 mW with LCD Display from RF-Video is a special design for Military applications suitable foor use in extremely low or high temperatures. Designed for Aeronautic or Space experiments. You can access any frequency in 2290-2500 MHz simply by pressing the buttons UP/DOWN. The frequency step is 250 kHz. This special video transmitter has 2 different video inputs and it works with any video receiver for 2.4 GHz available on the market. Although designed for military applications, this transmitter is available for commercial use. - Dual video inputs, one with preemphasis video, and input with "flat" input with no networking.
- Frequency selection is via up/down buttons, and the selected transmission frequency is displayed on the LCD screen.
- You can select to transmit on a frequency between 2,290 and 2,500MHz in 250kHz steps.
In the Box RF-Links WTX-2400 Audio / Video Transmitter for 2.4GHz, 100 mW with LCD Display Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links WTX-2400 Audio Video Transmitter for 2.4GHz, 100 mW with LCD Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links WTX-2400 Specs | Operating Frequencies | 2290 to 2500MHz | | Video Format | NTSC
PAL | | Video/Audio Inputs | Hirose | | Video Impedance | 75 Ω | | Video Level | 1V | | Frequency Step | 250 KHz | | Video Distortion | 2% | | Antenna Connector | SMA | | Modulation | WFM | | Power | DC Voltage: 9 to 16 V
RF Power: 2 W
Current Consumption: 1600 mA / 12 V | | Temperature Range | -40 to 172.4°F /-40 to 78°C | | Dimensions | 6.5 x 4 x 2" / 16.5 x 10.2 x 5.1 cm | | Weight | 15.9 Oz / 450 g |
