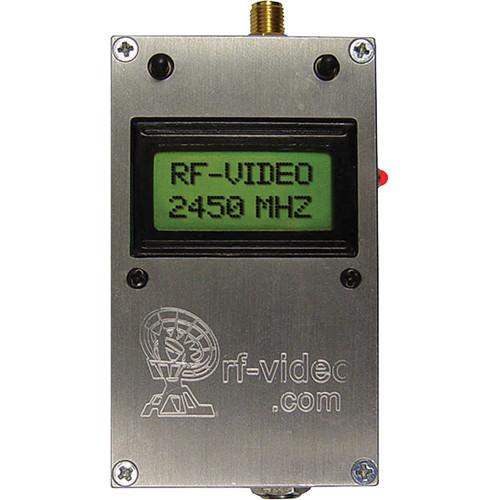

Product description The WTX-2400/H Audio / Video Transmitter for 2.4GHz, 500 mW with LCD Display from RF-Video is a special design for Military applications suitable foor use in extremely low or high temperatures. Designed for Aeronautic or Space experiments. You can access any frequency in 2290-2500 MHz simply by pressing the buttons UP/DOWN. The frequency step is 250 kHz. This special video transmitter has 2 different video inputs and it works with any video receiver for 2.4 GHz available on the market. Although designed for military applications, this transmitter is available for commercial use. - Dual video inputs, one with preemphasis video, and input with "flat" input with no networking.
- Frequency selection is via up/down buttons, and the selected transmission frequency is displayed on the LCD screen.
- You can select to transmit on a frequency between 2,290 and 2,500MHz in 250kHz steps.
In the Box RF-Links WTX-2400/H Audio / Video Transmitter for 2.4GHz, 500 mW with LCD Display Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links WTX-2400 H Audio Video Transmitter for 2.4GHz, 500 mW with LCD Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links WTX-2400/H Specs | Operating Frequencies | 2290 to 2500MHz | | Video Format | NTSC
PAL | | Video/Audio Inputs | Hirose | | Video Impedance | 75 Ω | | Video Level | 1V | | Frequency Step | 250 KHz | | Video Distortion | 2% | | Antenna Connector | SMA | | Modulation | WFM | | Power | DC Voltage: 9 to 16 V
RF Power: 2 W
Current Consumption: 1600 mA / 12 V | | Temperature Range | -40 to 172.4°F /-40 to 78°C | | Dimensions | 6.5 x 4 x 2" / 16.5 x 10.2 x 5.1 cm | | Weight | 15.9 Oz / 450 g |
