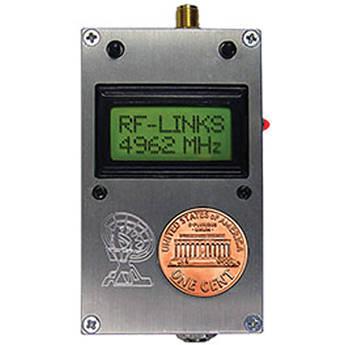

User Manual for RF-Links WTX-4962 Audio Video Transmitter 4950 MHz - 6200 MHz Click to enlarge the picture
Contents of the user manual for the RF-Links WTX-4962 Audio Video Transmitter 4950
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links WTX-4962 Audio Video Transmitter 4950 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video WTX-4962 is a highly compact, fully synthesized audio/video transmitter that operates within the 4950 MHz - 6200 MHz frequency bands. It outputs 10mW of RF power and offers a 1.8 mile transmission distance. It is sold exclusively to military and government agencies.
No tuning is required — frequencies are selectable via two push buttons and displayed on an LCD. An Omni Dipole antenna is recommended (not included). -
- Measures only 2.5" x 1.5"
- Works on 9V battery power (not included)
- Hirose video connector
- SMA antenna connector
- PAL/NTSC compatible
- WFM modulation
In the Box RF-Links WTX-4962 Audio/Video Transmitter 4950 MHz - 6200 MHz Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links WTX-4962 Audio Video Transmitter 4950 MHz - 6200 MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links WTX-4962 Specs | Operating Frequencies | 4950 - 6200 MHz | | Frequency Step | 250 kHz | | DC Voltage | 7.5 - 12 VDC | | RF Power | 10 mW | | Minimum Required Voltage | 7.5 V | | Battery Power | 9 V | | Video Distortion | 2% | | Maximum Range | 1.8 miles (3 km) | | Video Format | PAL, NTSC | | Current Consumption | 360 mA / 12 V | | Antenna Connector | SMA (50 ohms) | | Video Connector | Hirose (75 ohms) | | Video Level | 1 V | | Audio Input | 300 mV | | Modulation | WFM | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Dimensions | 2.5 x 1.5 x 0.75" (6.4 x 3.8 x 1.9 cm) | | Weight | 1.8 oz (50 g) |
