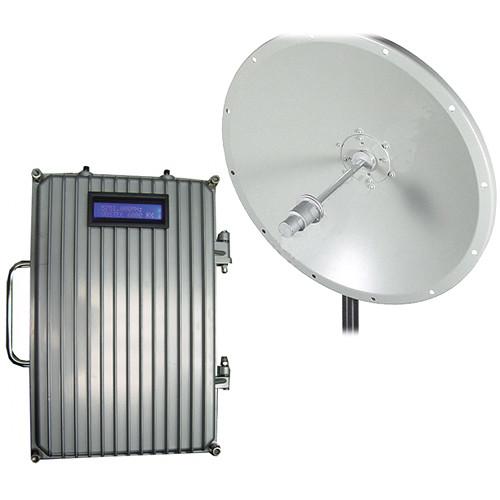

User Manual for RF-Links XLD-5800 HP Wideband Microwave Link Click to enlarge the picture
Contents of the user manual for the RF-Links XLD-5800 HP Wideband Microwave Link
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links XLD-5800 HP Wideband Microwave Link contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF Video XLD-5800/HP Wideband Microwave Link is used for 1 video or 2 audio signals with frequencies between 5.690 and 5.900 MHz. It consists of a 10W transmitter (XLD-5800/HP) with a digital display, a receiver with a digital display, and 2 directional antennas (PH-58). In case of a matching error between the antenna and the transmitter, the transmitter self-adjusts its settings. With high-gain antennas, the microwave link can cover distances of more than 30 km and is ideal for use in TV and film production. Equipped with a built-in low noise amplifier, the XLD-5800/HP receiver amplifies weak signals and minimizes any loss during transmission. You can adjust the operating frequency of signals with the use of simple push buttons. The transmitters and receivers are housed in weather-resistant NEMA enclosures. - Used for 1 video or 2 audio signals with frequencies from 5.690 - 5.900 MHz
- Consists of 10W transmitter (XLD-5800/HP) with a digital display, a receiver with a digital display, and 2 directional antennas (PH-58)
- Self-adjustable transmitter for dealing with matching errors between the antenna and transmitter
- Covers distances of more than 30 km with high-gain antennas
- Ideal for use in TV and film production
- Built-in low noise amplifier helps to amplify weak signals and minimize any loss during transmission
- Adjustable signal operating frequency
- Weather-resistant NEMA enclosures for transmitters and receivers
In the Box RF-Links XLD-5800/HP Wideband Microwave Link XLD-5800/HP Transmitter XLD-5800/HP Receiver 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links XLD-5800 HP Wideband Microwave Link in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links XLD-5800/HP Specs | | | Operating Frequency | 5690-5900 MHz | | Channels | All channels | | Channel Selection | Internal/depends on model | | DC Voltage | 12 V | | RF Output Power | 5 W (10 W) | | Minimum Required Voltage | 12 V | | Battery Power | 12 V min | | Frequency Stability | 0.005% | | Video Distortion | 2% | | Maximum Range | 20 miles + (32.2km +) | | Video Format | NTSC, PAL | | Current Consumption | 1.8 A (2.8 A) | | Antenna | SMA/N | | Impedance | 50 ohms | | Video Connector | BNC | | Video Level | 1 V | | Video Impedance | 75 ohms | | Audio Frequency Response | 20-16 kHz | | Audio Input | 300 mV 10K | | Audio Carrier Frequencies | 6 MHz | | Operating Temperature | -40 ~ 167°F (-40 ~ 75°C) | | Modulation | WFM | | Dimensions | 7.5 x 11 x 3.5" (191 x 279 x 89mm) | | Weight | 5 lbs (2.3kg) | | | | Operating Frequency | 5690-5900 MHz | | Channels | All channels | | Channel Selection | Display | | DC Voltage | 12 V | | Sensitivity | - 92 dBm | | Minimum Required Voltage | 12 V | | Battery Power | 12 V | | IF Frequency | 47 MHz | | Video Distortion | 1% | | IF Bandwidth | 20 MHz | | Gain Flatness | 0.03% | | Noise | <2% | | Antenna | Directional | | Impedance | 50 ohms | | Video Connector | BNC | | Video Level | 1 V | | Video Impedance | 75 ohms | | Image Rejection | N/A | | Audio Input | 300 mV | | Audio Output | 300 mV | | Modulation | WFM | | Antenna | SMA/N | | Operating Temperature | -40 ~ 167°F (-40 ~ 75°C) | | Dimensions | 7.5 x 11 x 3.5" (191 x 279 x 89mm) | | Weight | 5 lbs (2.3kg) |
