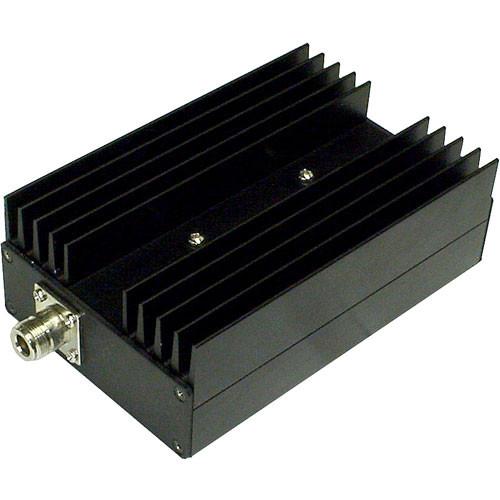

User Manual for RF-Links ZH-8896 H 20W High Power 880-960 MHz Amplifier Click to enlarge the picture
Contents of the user manual for the RF-Links ZH-8896 H 20W High Power
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links ZH-8896 H 20W High Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video ZH-8896/H is an industrial grade amplifier that can be used to boost wireless signals transmitted in the 880 MHz to 960 MHz frequency range. Its rugged construction along with the ability to operate in extreme temperature conditions makes it a particularly good choice for use in military, exploration, mobile surveillance and similar rough wireless monitoring environments. - High performance amplifier with integrated heat sink
- Two antenna connectors (In/Out)
- Operates in extreme high and low temprature conditions
- No tuning or adjustments required
In the Box RF-Links ZH-8896/H 20W High Power 880-960 MHz Amplifier 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links ZH-8896 H 20W High Power 880-960 MHz Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links ZH-8896/H Specs | Frequency | 880-960 MHz | | Operating Class | Linear AB | | RF Power Output | 20W | | Gain | Not Specified by Manufacturer | | Input Power | 10-50mW | | Antenna | Two integrated antenna connectors (antennas not included) | | Impedance | 50 ohms | | Power Requirements | 12 VDC | | Power Consumption | 6.8A | | Operating Temperature | -40 ~ 167°F (-40 ~ +75°C) | | Dimensions (WxHxD) | 4 x 2 x 6" (102 x 51 x 152mm) | | Weight | 10.6 oz (300 g) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
