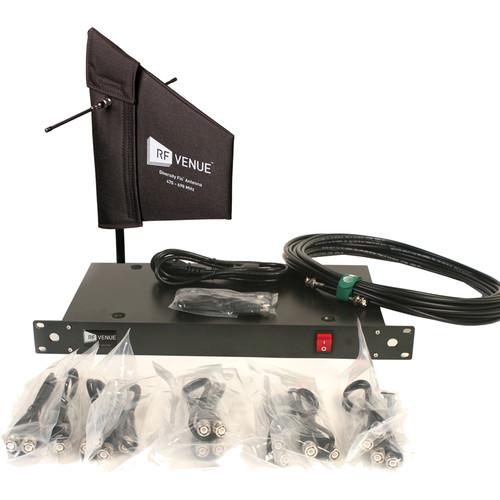

Product description The 4-Channel Antenna Distributor with Cloth-Covered Diversity Fin Antenna and Cables Bundle from RFvenue features the DISTRO4 which supplies RF and DC power to four wireless microphone systems of any brand, allowing for splitting two incoming antenna signals across multiple receivers.
The bundle also includes the cloth-covered DFIN Diversity Fin Antenna, a portable, simple to operate wireless microphone antenna that reduces microphone dropouts and interference in tough RF environments. Multiple-thread microphone stand mounts are provided.
DC and RF jumper cables required for four-channel microphone system operation are also included, along with two 25-foot RG8X coaxial cables. - RF and DC 4-Channel Distribution System The RF and DC 4-Channel Distribution System from RFvenue is designed to provide DC power and split the signal from 2 antennas between up to 4 optional wireless receivers. RFvenue includes 4 BNC cables for splitting the RF signal as well as 4 DC jumpers to provide your wireless receivers with power. UPC: 718122341313
- Diversity Fin Antenna The RFvenue Diversity Fin Antenna is capable of receiving diversity signals with just a single antenna, and avoids cumbersome multi-antenna configurations. The Diversity Fin Antenna will work with any wireless microphone or EIM system operating within the 470 - 698 UHF band. The antenna incorporates LPDA and dipole antennas oriented at exactly 90°. Easily mount the Diversity Fin onto any 1/4-20, 3/8-16 or 5/8-27 stand without the need for any adapters.
- Works with existing wireless systems, 470-698 MHz
- Perfect for everyday stage, worship, and A/V productions
- Ideal for location sound mixers who have limited cart space
- Decrease signal fades, audio dropouts, and static
- Super strong, water resistant padded nylon cover
- Fits 1/4-20 Lighting Stands, 3/8-16 EU Mic stands, and 5/8-27 International Mic Stands- no adapters.
UPC: 718122342013 - RG8X Low Loss Coaxial Antenna Cable - 25' The RG8X Low Loss Coaxial Antenna Cable - 25' from RFvenue features BNC connectors and offers a cost effective, reliable interconnect. UPC: 718122340316
In the Box Bundle Items RF and DC 4-Channel Distribution System Diversity Fin Antenna 2 x RG8X Low Loss Coaxial Antenna Cable - 25' Table of Contents
|
Upload User Manual
Have you got an user manual for the RF Venue 4-Channel Antenna Distributor with Cloth-Covered Diversity Fin Antenna and Cables Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RF and DC 4-Channel Distribution System
| | | Operating Frequency | 470 to 870 MHz | | Bandwidth | 400 MHz | | Gain | -0.5 to 3 dB | | Impedance | 50 Ω | | Output Connector Isolation | 25 dB | | Third Order Intercept Point (3 OIP) | 24 dBm | | Voltage | Input AC Voltage: 90 to 260 V, Switching
Output DC Voltage: 12 to 18 V
Output DC Current: 2000 mA | | | | RF Connector | BNC | | Dimensions (HxWxD) | 1.75 x 19.00 x 10.00" (44 x 482 x 253 mm) | | Weight | 4.75 lb (2.15 kg) | | | | Box Dimensions (LxWxH) | 22.1 x 12.9 x 3.6" | - Diversity Fin Antenna
| | | Box Dimensions (LxWxH) | 14.5 x 12.0 x 4.0" | - RG8X Low Loss Coaxial Antenna Cable - 25'
| | | Box Dimensions (LxWxH) | 14.2 x 13.0 x 2.55" |
