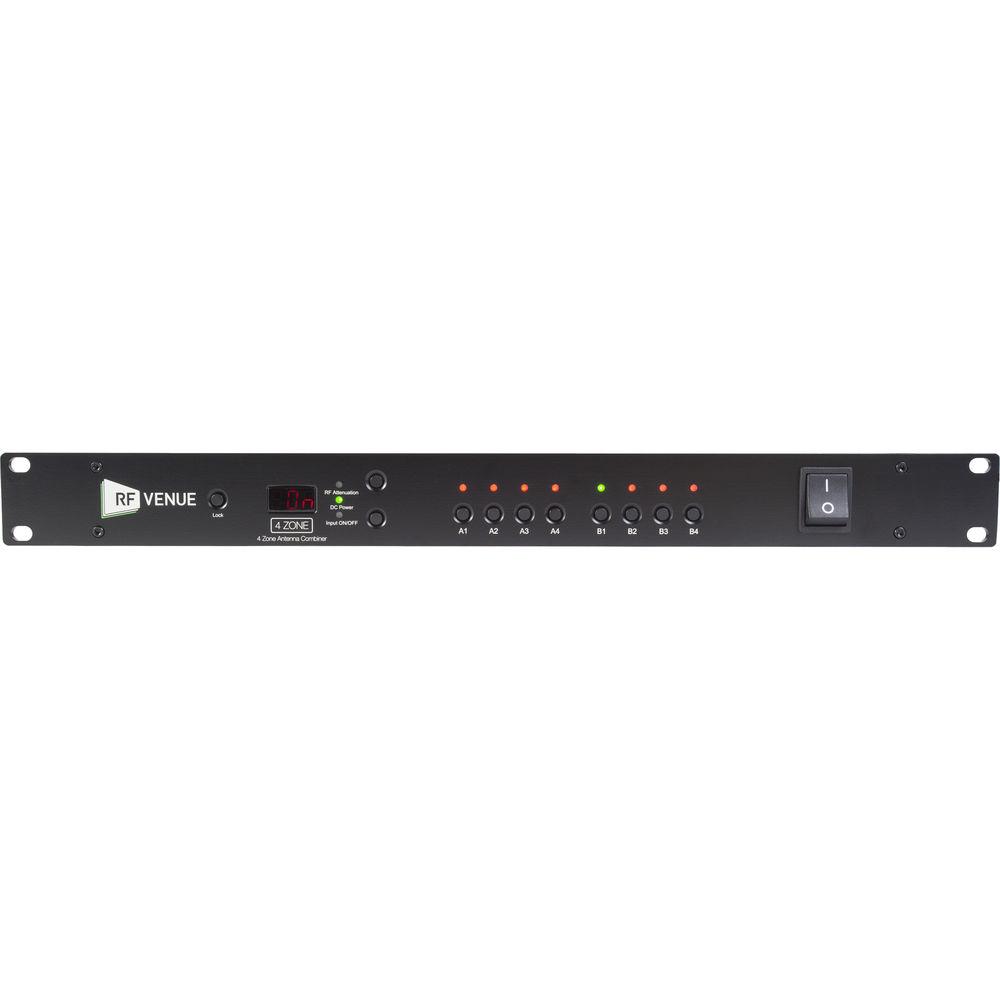

Product description The RF Venue 4 Zone is an antenna combiner for wireless microphones receivers, which combines up to four separate pairs of diversity antenna connections. Designed to take the complexity out of multi-zone signal management, it is ideal for use in multi-purpose rooms, indoor-outdoor configurations or main stages with secondary breakout rooms. The unit operates in the 470 to 960 MHz frequency range and is compatible across all brands. It allows for fine-tuning of RF levels in each coverage area by offering RF signal attenuation control for each channel, down to -31 dB in 1 dB steps. For roaming microphone transmitters, selectable On/Off inputs let you choose which coverage zones are active, saving setup and breakdown time when working on location. Additionally, the RF Venue 4 Zone can provide 12 VDC power to active antennas or in-line amplifiers on long cable runs. - Antenna combiner for multi-zone wireless microphone systems – solves distribution challenges by making signal management simple
- 470 to 960 MHz frequency range, compatible across all brands
- Combines up to four separate pairs of diversity antenna connections to one A and B output
- Individual-channel, RF signal attenuation control down to -31 dB, in 1 dB steps
- Selectable 12 VDC power for active antennas and in-line amplifiers on long cable runs
- Selectable On/Off inputs allows for quick control of coverage zones for roaming microphone transmitters
UPC: 459225904370 In the Box RF Venue 4 Zone - Antenna Combiner for Wireless Mic Receivers (470 - 960 MHz) AC Power Cable 2 x BNC to BNC Coaxial Cables (8") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF Venue 4 Zone - Antenna Combiner for Wireless Mic Receivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

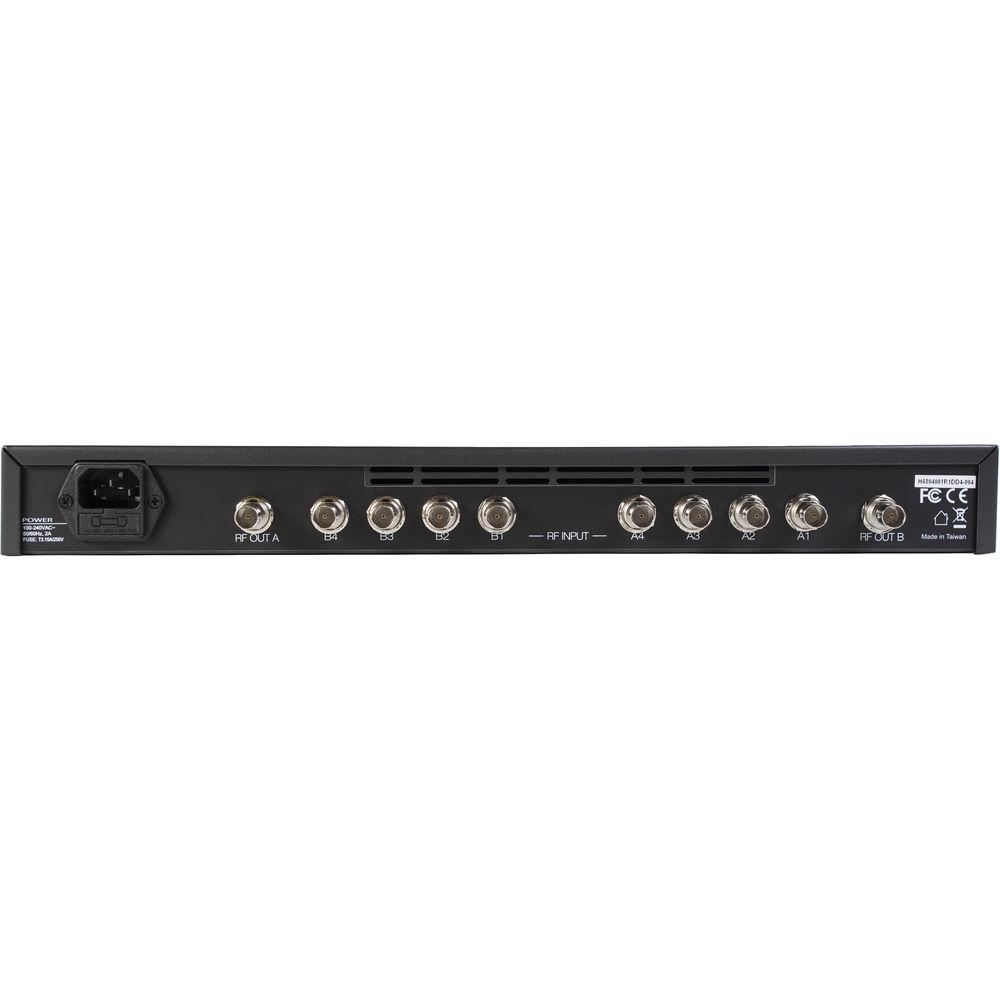

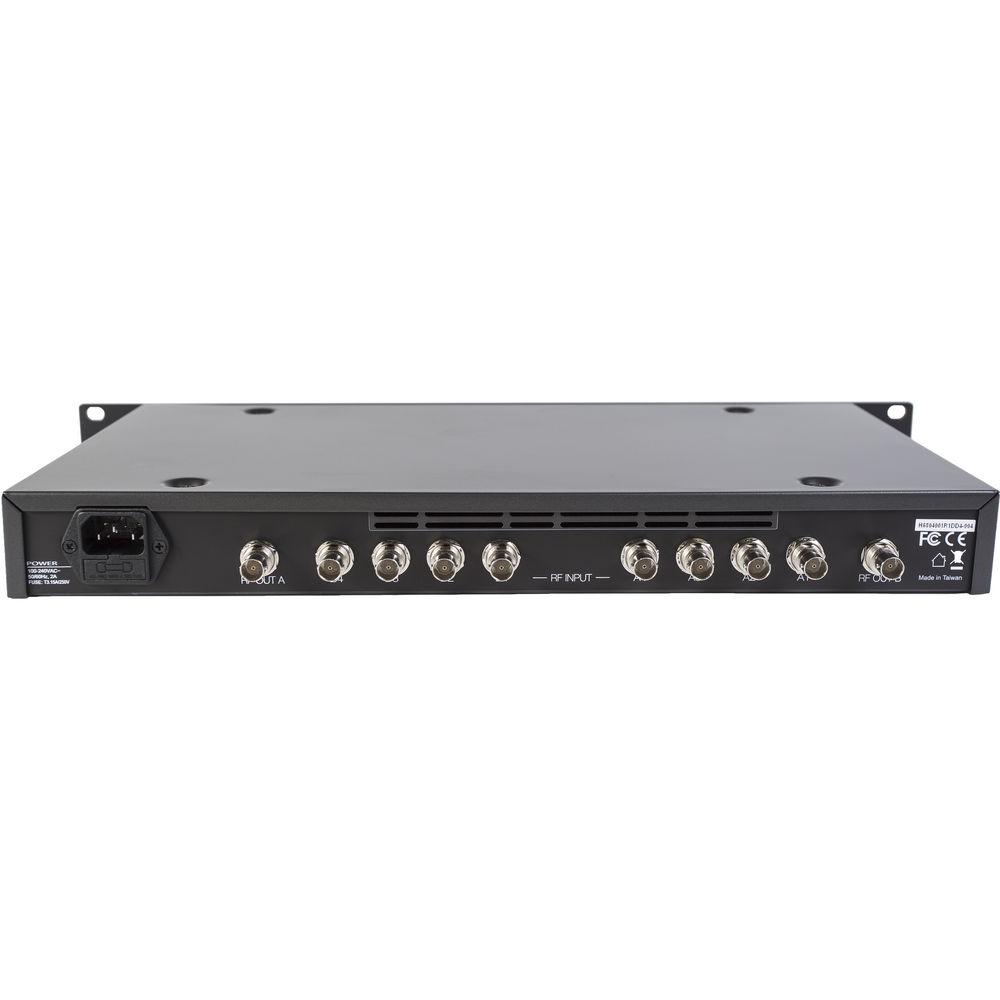

Technical parametersRF Venue 4ZONE Specs | Carrier Frequency Range | 470 to 960 MHz | | System Gain | 3 dB, ±3 dB (full) | | Impedance | Input/Output: 50 Ohms | | A/B Antenna Input | 4 + 4 | | OIP3 | -35 dBm (typ.) at 2-tone, Pi= -15 dBm/tone | | RF Input Attenuation | -31 to 0 dB (Step: 1 dB) | | Connectors | Input: 8 x BNC, female
Output: 2 x BNC, female | | Functions | DC Power On/Off control, for in-line amplifier
RF Input Attenuation control
RF Input Signal On/Off control | | In-Line Amplifier Power | 12 V / 200 mA | | Power Supply | 100-240 VAC, 50/60 Hz, 2 A (maximum) | | Dimensions (W x H x D) | 18.9 x 1.8 x 10.2" / 480.0 x 45.0 x 260.0 mm | | | | Package Weight | 7.75 lb | | Box Dimensions (LxWxH) | 22.0 x 13.0 x 3.6" |
