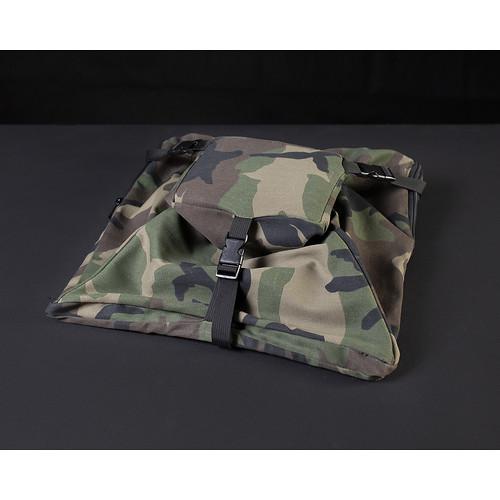

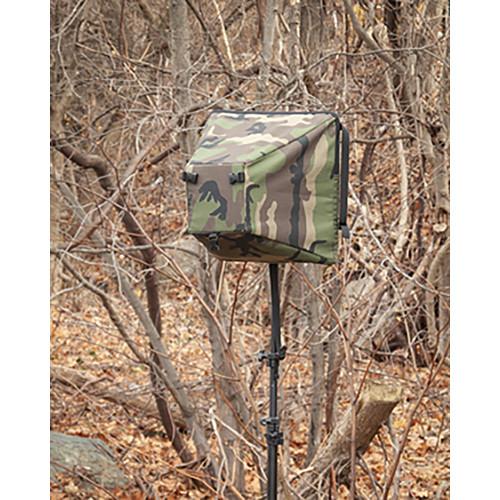

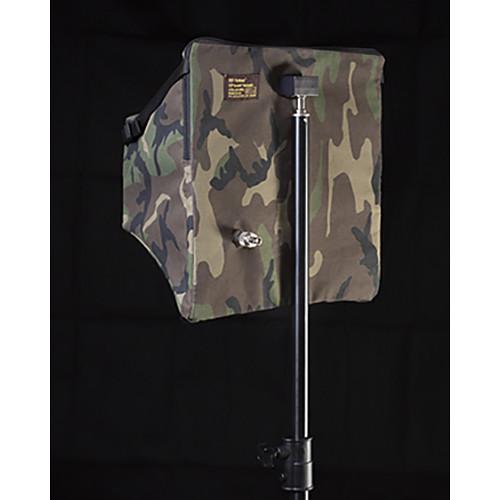

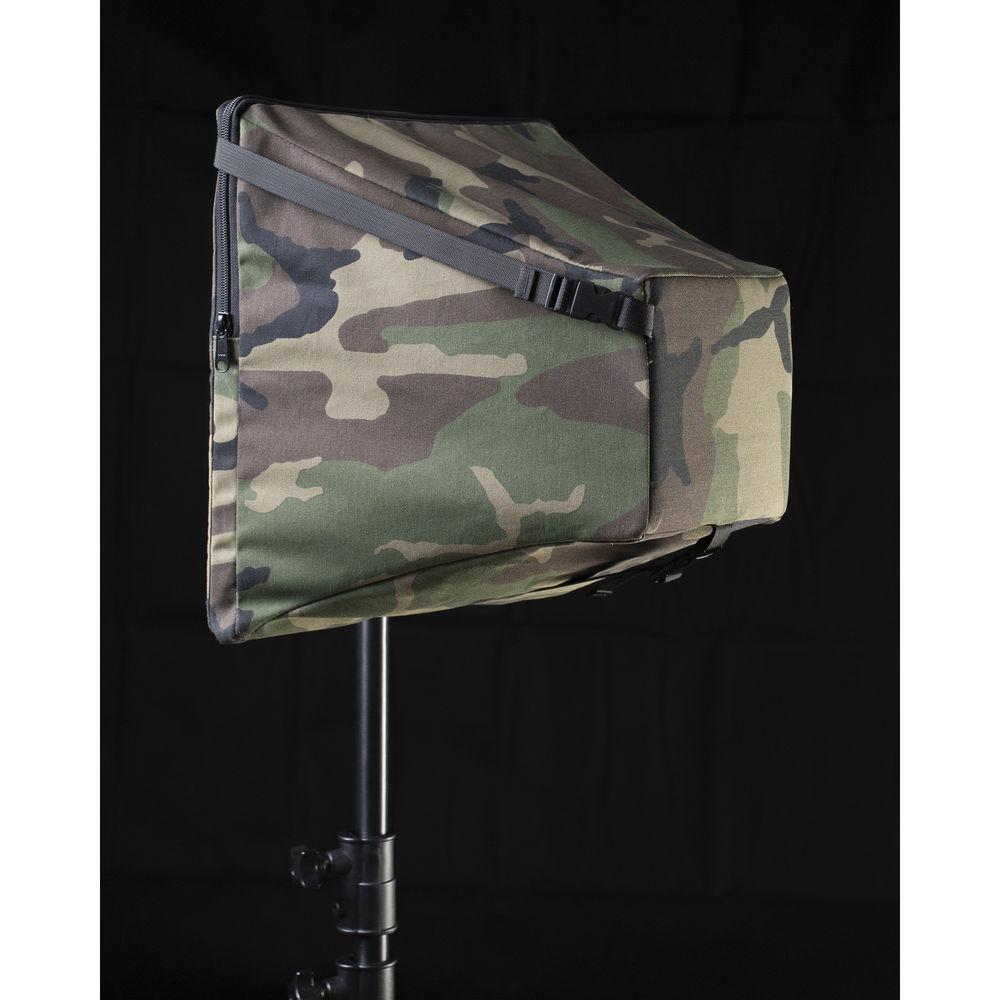

Product description The CP Beam Antenna CAMO Edition by RF Venue is a limited run version of their high-performance foldable helical antenna for IEMs and wireless mics. Featuring a circularly polarized yet lightweight design, the CAMO CP Beam delivers optimal RF performance in a package that folds flat for easy storage and transport. The CP Beam Antenna operates on a wide frequency range of 470 to 698 MHz.The antenna weighs just 2.5 lb and provides 9 dB of gain making it useful for long-range applications. Widely used on concert tours, it's ideal for outdoor applications. The CP Beam can be connected to any brand of IEM, wireless mic, or UHF intercom. - Key Features
-
- High-performance directional UHF antenna with a wide frequency range of 470 to 698 MHz
- The antenna quickly deployed and stowed, fitting in a 2 RU rack drawer
- The 9 dBd of gain makes it a suitable choice for long-range applications
- Connects to any brand of IEM, wireless mic, or UHF intercom
- Can be used on major concert tours and comms systems
In the Box RF Venue CP Beam Antenna CAMO Edition (Limited) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF Venue CP Beam Antenna CAMO Edition in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF Venue CPB-CAMO Specs | | | Operating Frequency | 470 to 698 MHz | | Bandwidth | 228 MHz | | Average Return Loss | -13.15 dB | | Impedance (Ohms) | 50 Ohms | | Pattern Type | Beam | | Polarization | RHCP | | | | Horizontal Axis | Beam Width 63°
F/B Ratio -10 dB
F/S Ratio -12 dB | | Vertical Axis | Beam Width 70°
F/B Ratio -9 dB
F/S Ratio -12 dB
Squint < 2 dB
Gain 9 dBd | | | | Dimensions (L x H) | 13.9 x 13.9" / 355 x 355 mm | | Weight | 2.4 lb / 1.1 kg | | Mount Thread Size | 1/4-20", 3/8-16", 5/8-27" | | Operating Temperature | -9.4 to 129.2°F / -23 to 54°C | | Color | Camouflage | | Connectors | N Female (BNC Supplied) | | | | Package Weight | 2.515 lb | | Box Dimensions (LxWxH) | 18.1 x 15.3 x 4.75" |
