User Manual for RF Venue RF Explorer Pro Audio Edition Handheld RF Spectrum Analyzer for Wireless Audio Systems Click to enlarge the picture
Contents of the user manual for the RF Venue RF Explorer Pro Audio
- Product category: Antenna Accessories RF Venue
- Brand: RF Venue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF Venue Antenna Accessories
 |
User manual for the RF Venue RF Explorer Pro Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF Venue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF Venue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF Venue product will considerably shorten its lifespan!
|
Product description The RF Explorer Pro Audio Edition from RF Venue is a handheld RF spectrum analyzer offering customizable, user-friendly functionality for managing and monitoring wireless audio devices such as receivers, transmitters, wireless mics, and IEMs. Frequency coordination and interference detection is easy and within budget for venues large and small, live and installed. The backlit LCD shows frequency and power visualizations of the RF environment to simplify identification of third-party RF sources that can wreak havoc on an event. With a wide 15 to 2700 MHz scanning range and a one-click 2.4 GHz Wi-Fi analyzer, the RF Explorer Pro Audio Edition is ideal for troubleshooting a variety of wireless signals. Efficiently optimize input levels with the configurable input stage, which offers three paths including a 25 dB low-noise amplifier, a 30 dB input attenuator, and a direct route. Save and load presets for fast configuration in different venues. Power the RF Explorer Pro Audio Edition via the internal rechargeable 16-hour battery or a USB connection. It includes a shielded USB cable, one UHF articulating whip antenna, and a carrying case. - Compact, portable RF spectrum analyzer ideal for use in troubleshooting, optimizing, and commissioning wireless systems
- 50-Ohm BNC input designed to interface directly with wireless audio systems and accessories such as remote antennas, antenna distribution systems, or RF-over-fiber modules
- Modes include peak max, hold, normal, overwrite, and average
- Auto-configurable resolution bandwidth (RBW)
- Marker with selectable peak or manual mode
- LCD screen with adjustable backlighting

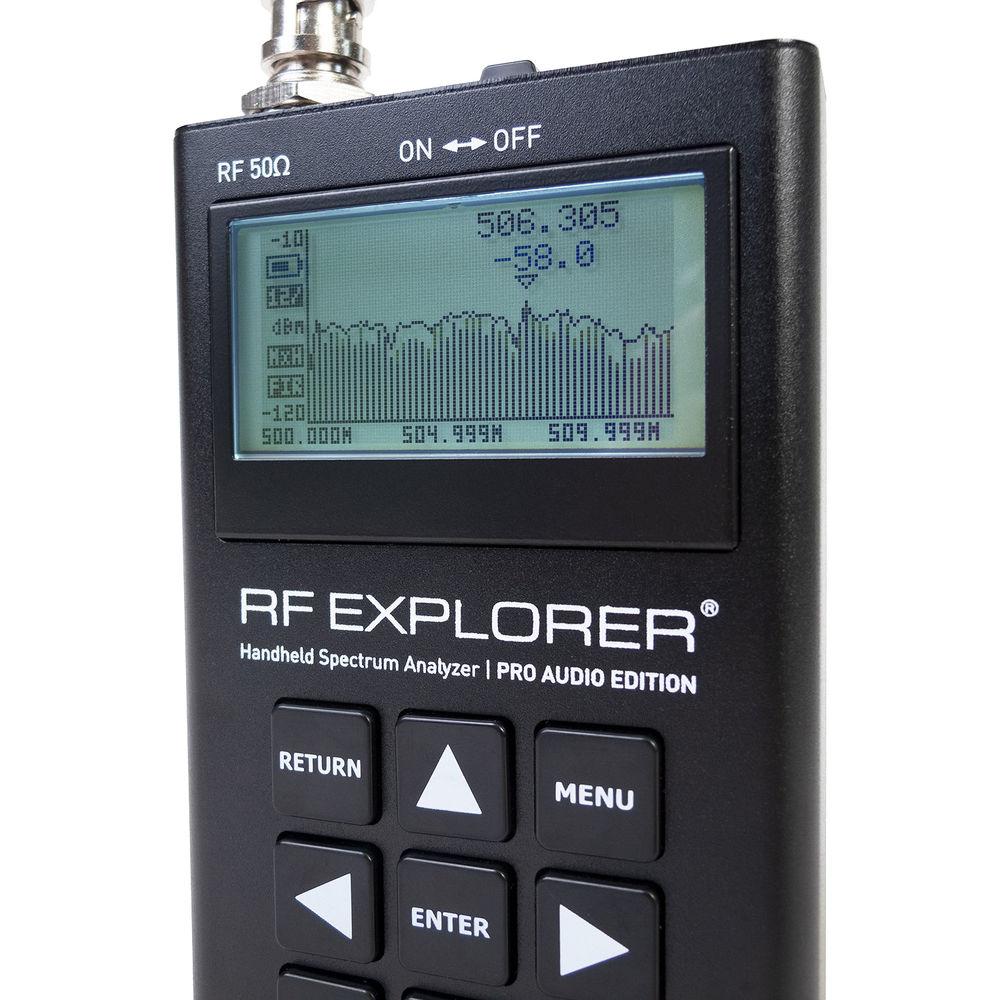

- LCD shows power, frequency, USB/battery status, sweeps per second, DSP mode, and more
- Easy operation via front-panel buttons

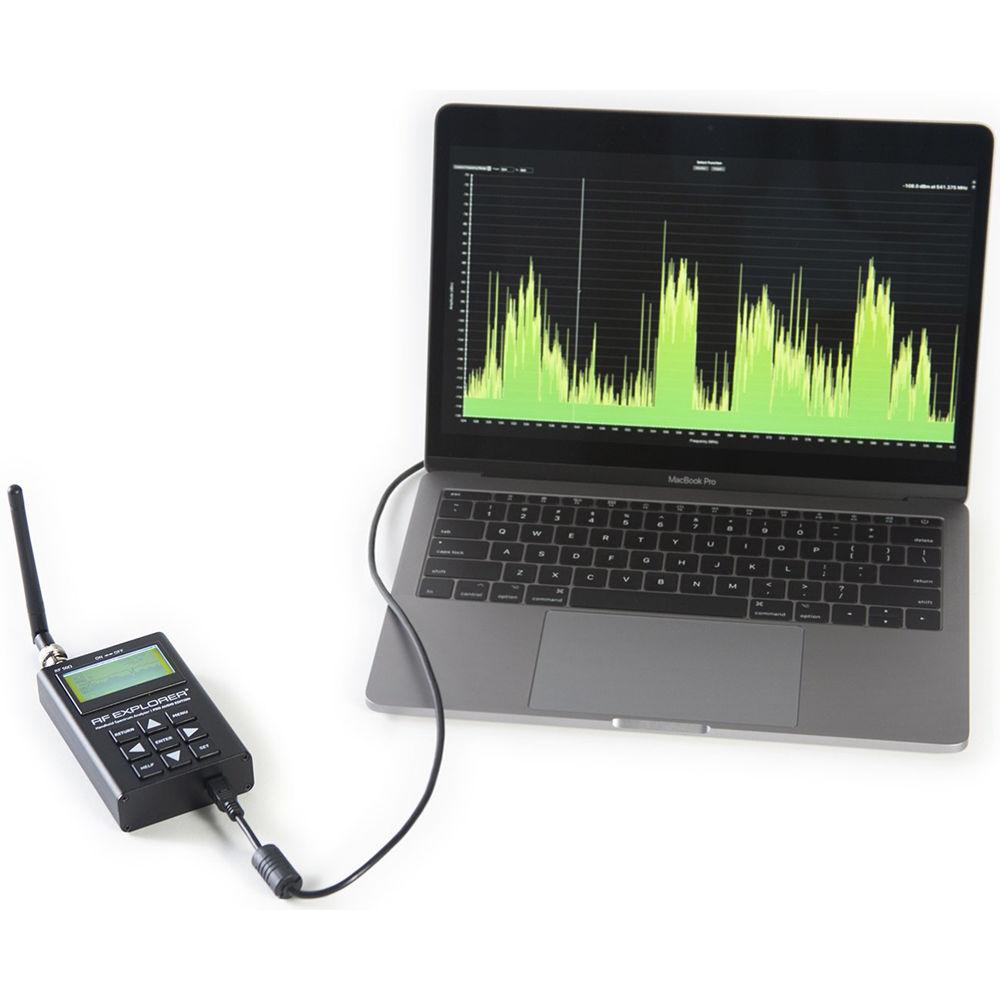

- Compatible with RF Venue's Vantage Mac OS X software as well as multiple Windows applications

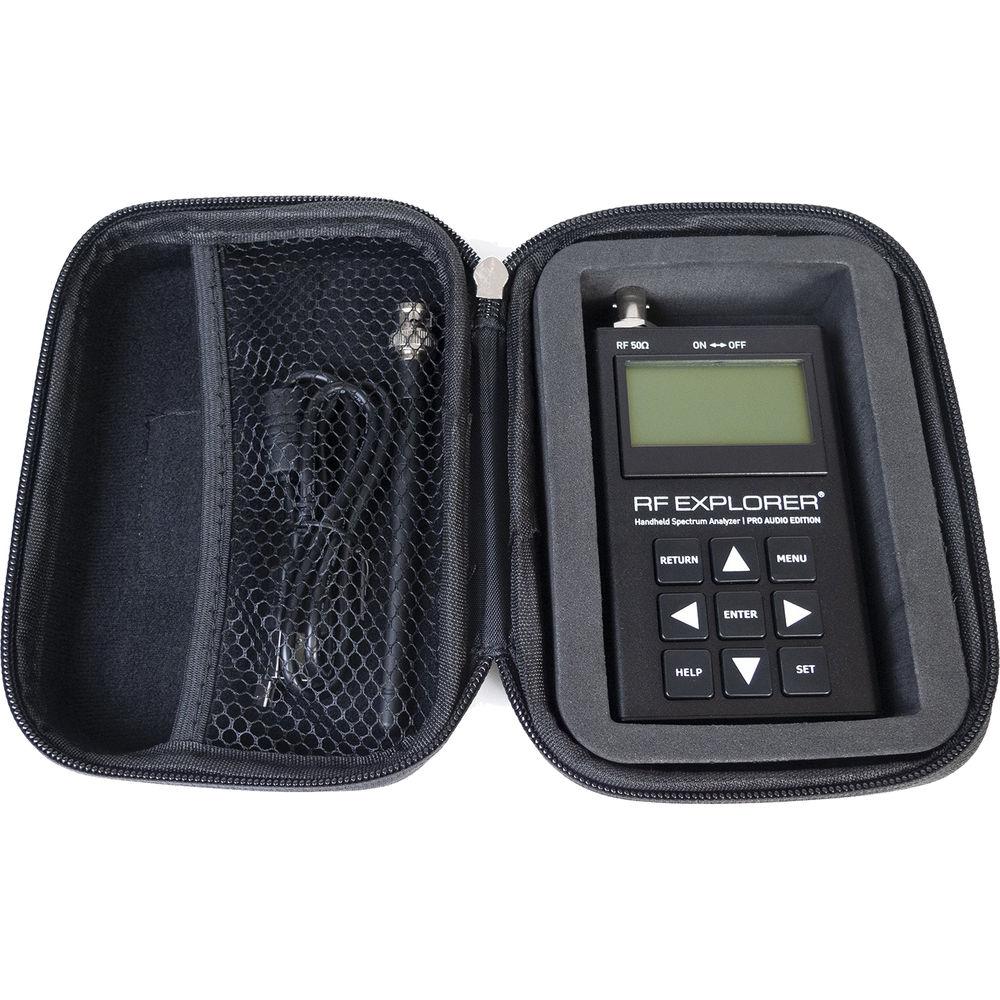

UPC: 602573615089 In the Box RF Venue RF Explorer Pro Audio Edition Handheld RF Spectrum Analyzer for Wireless Audio Systems Shielded USB Cable UHF Whip Antenna Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF Venue RF Explorer Pro Audio Edition Handheld RF Spectrum Analyzer for Wireless Audio Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF Venue Rf Explorer Specs | Operating Frequency | 15 to 2700 MHz | | Impedance | 50 Ohms | | Maximum Input Power | Direct Mode: +10 dBm
LNA Mode: -20 dBm
Via Internal Attenuator: +30 dBm (1 W) | | Sensitivity | -120 dB | | Dynamic Range | -115 to 0 dBm | | Noise Floor | -115 dBm (DANL) | | Display | Backlit LCD | | Antenna | UHF Band, Articulating Whip Antenna | | RF Input Connector | BNC Female | | USB Port | Mini-USB | | Battery Type | Internal Rechargeable 1000 mAh Lithium-Ion Polymer | | Battery Life | Up to 16 Hours | | Power Requirement | USB Connection or Internal Battery | | Dimensions (W x H x D) | 2.8 x 5.1 x 1.0" / 7.0 x 13.0 x 2.5 cm | | Weight | 8.8 oz / 250 g | | | | Package Weight | 1.04 lb | | Box Dimensions (LxWxH) | 7.15 x 5.15 x 2.85" |
