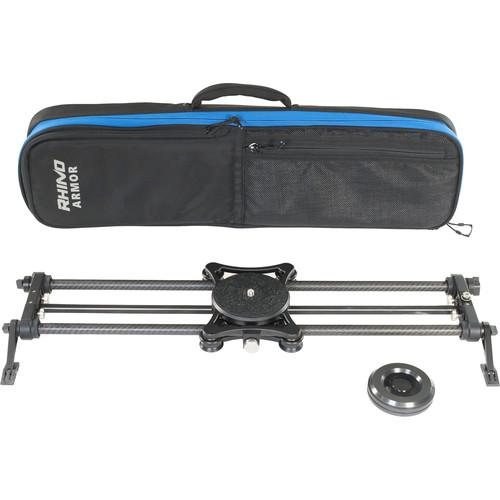

Product description Hands-On with the Simple-Interfaced Rhino Motion Slider Systems Read More Capture smooth manual camera slides with the Basic Slider Bundle from Rhino. The bundle features the 24" Rhino Slider EVO Carbon, which supports loads up to 15 lb, and a weighted Rhino Flywheel that works with the slider's belt-drive system to provide smoother, more consistent motion from start to finish. Highly versatile, the slider is compatible with the optional Rhino Motion system, letting you upgrade to a motorized sliding system. Adding to the slider's versatility is its interchangeable rails, letting you swap the included lightweight 24" carbon fiber rails for optional 42" rails when longer slides are need, or stainless steel rails to support heavier camera loads. As part of this bundle, a soft carrying case is included designed to fit the fully assembled 24" slider as well an attached fluid head, Rhino Motion, and Rhino Arc, all sold separately. - Slider EVO Carbon (24")
- Why Rhino Slider EVO
- New to Rhino? Learn the System
- 5 Beginner Slider Tips | Move with Rhino
- Best FOCAL LENGTH for SLIDER shots (Rokinon Cine Lens Bundle) | Move with Rhino
The Rhino Slider EVO Carbon is a highly versatile, belt-driven camera slider that can adapt to your shooting needs. The system includes lightweight carbon fiber rails that support loads up to 15 lb, which can be swapped for optional 42" rails when longer slides are required. Additionally, optional stainless steel rails are available for when you need to support heavier loads. The slider can also be upgraded to a motorized system with the addition of the separately available Rhino Motion, allowing you to capture smooth live motion and time-lapses with a single motor.
The Rhino Slider EVO features a 3/8"-16 screw on the camera carriage for attaching a ball head or flat-base fluid head. It can be center-mounted on a tripod via 1/4"-20 and 3/8"-16 threaded holes in the center of the rails, or supported using two tripods or stands via 1/4"-20 and 3/8"-16 threads at the ends of the tripod. You can also setup the slider for ground-level or table-top shooting using the included spring-loaded legs with index marks. The legs fold up for compact storage. - Key Features
-
- Ability to switch between carbon fiber and stainless steel rails (24" and 42" lengths)
- 24" lightweight carbon fiber included
- Supports loads up to 15 lb
- Optional Rhino Motion add-on
- Camera carriage with 3/8"-16 screw
- Integrated carriage brake
- Optional flywheel
- 3/8"-16 and 1/4"-20 mounting threads (center and ends)
- Spring-loaded, folding all-terrain legs with index marks
UPC: 638170293818 - Flywheel for EVO Sliders Provided by third party: The weighted Rhino Flywheel works in tandem with the belt-drive system on a Rhino Slider EVO, serving as an inertia dampener to help smooth out inconsistencies in your slides to let you capture smoother, more consistent motion from start to finish. It features built-in rubber bumpers and attaches to the drive shaft using a tool-less fastener. UPC: 638170293856
- Slider EVO Carrying Case (24") Store and protect your 24" EVO camera slider with the Rhino Slider EVO Carrying Case. To facilitate fast setups in the field, the case fits a completely assembled slider, including an attached Rhino Motion, Rhino Arc, and even a fluid head thanks to an expandable "pop top" design. A soft interior lining helps protect the slider from scratches, while retaining straps keep the slider secured in place.
- Key Features
-
- Protects your 24" Rhino Slider EVO
- Expandable pop-top lets you keep your fluid head attached
- Retaining straps keep your slider in place
UPC: 638170293924 In the Box Bundle Items Slider EVO Carbon (24") ruurxsetdfdeedurxwwrd - 2 x End Caps with All-Terrain Legs
- Limited Lifetime Warranty
Flywheel for EVO Sliders - Limited Lifetime Warranty
Slider EVO Carrying Case (24") - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rhino Camera Gear Basic Slider Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Slider EVO Carbon (24")
| | | Load Capacity | 15 lb / 6.8 kg | | | | Camera Mounting Screw | 3/8"-16 Male | | Tripod Mounting | 3 x 1/4"-20 Female Thread
3 x 3/8"-16 Female Thread | | | | Track Length | 24" / 61 cm | | Weight | 4 lb / 1.8 kg | | | | Box Dimensions (LxWxH) | 29.1 x 10.35 x 3.15" | - Flywheel for EVO Sliders
| Material | Powder-coated steel | | Dimensions (Diam. x H) | 4 x 1.5" (10.2 x 3.8 cm) | | | | Box Dimensions (LxWxH) | 5.3 x 5.3 x 2.0" | - Slider EVO Carrying Case (24")
| Material | Ballistic nylon | | Dimensions | 29 x 9 x 4" (73.7 x 22.9 x 10.2 cm) | | Weight | 3.44 lb (1.56 kg) | | | | Box Dimensions (LxWxH) | 29.0 x 9.4 x 4.4" |
