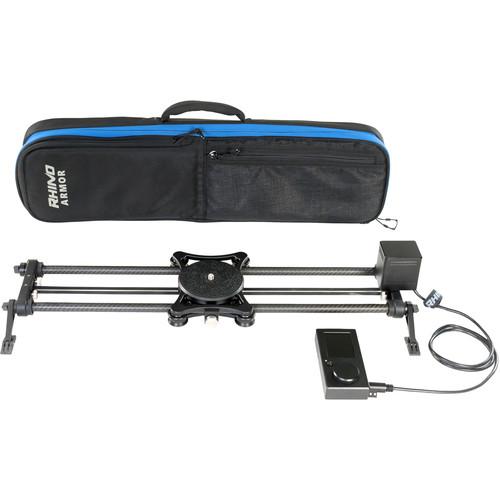

Rhino Camera Gear Essentials Slider Bundle

User Manual for Rhino Camera Gear Essentials Slider Bundle

• Product category: Camera Sliders Rhino Camera Gear
• Brand: Rhino Camera Gear
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rhino Camera Gear Camera Sliders

Product description

• Slider EVO Carbon (24")
  • Why Rhino Slider EVO
  • New to Rhino? Learn the System
  • 5 Beginner Slider Tips | Move with Rhino
  • Best FOCAL LENGTH for SLIDER shots (Rokinon Cine Lens Bundle) | Move with Rhino
  The Rhino Slider EVO Carbon is a highly versatile, belt-driven camera slider that can adapt to your shooting needs. The system includes lightweight carbon fiber rails that support loads up to 15 lb, which can be swapped for optional 42" rails when longer slides are required. Additionally, optional stainless steel rails are available for when you need to support heavier loads. The slider can also be upgraded to a motorized system with the addition of the separately available Rhino Motion, allowing you to capture smooth live motion and time-lapses with a single motor.

  The Rhino Slider EVO features a 3/8"-16 screw on the camera carriage for attaching a ball head or flat-base fluid head. It can be center-mounted on a tripod via 1/4"-20 and 3/8"-16 threaded holes in the center of the rails, or supported using two tripods or stands via 1/4"-20 and 3/8"-16 threads at the ends of the tripod. You can also setup the slider for ground-level or table-top shooting using the included spring-loaded legs with index marks. The legs fold up for compact storage.
  Key Features
  • • Ability to switch between carbon fiber and stainless steel rails (24" and 42" lengths)
    • 24" lightweight carbon fiber included
    • Supports loads up to 15 lb
    • Optional Rhino Motion add-on
    • Camera carriage with 3/8"-16 screw
    • Integrated carriage brake
    • Optional flywheel
    • 3/8"-16 and 1/4"-20 mounting threads (center and ends)
    • Spring-loaded, folding all-terrain legs with index marks
  UPC: 638170293818
• Motion for EVO Sliders Rhino Motion includes a motor and controller for Rhino EVO sliders. It's designed to capture live motion and time-lapse shots, and offers two time-lapse modes — Simple Time-lapse and Advanced Time-lapse, the latter allowing you to control the shutter, so you won't need an external intervalometer. The shutter is released by the Rhino Motion itself.

  Within the other option — Simple Time-lapse — you get to assign the travel distance, total time, and ramping (easing in and out). You can also assign a Loop setting that lets you repeat the assigned timeplase in the opposite direction so you can film an interview with your B-camera autonomously moving back and forth. After the start of the time-lapse, the LCD of the controller will then display status figures, such as Percentage Done.

  During live motion capture you can turn the camera in real time by turning the wheel on the dial, ensuring a better chance of capturing spontaneous moments. The wheel incorporates an advanced magnetic encoder technology that provides highly responsive control during filming as well as menu navigation.

  The motor features an ultra-precise .7µ resolution drive system and 7-hour built-in battery. The extended battery life enables you to use Rhino Motion on multiple shoots on a single charge. The motor also functions at nearly silent operation when at low speeds, so you can capture quality video and audio simultaneously.
  Key Features
  • • Motor and controller for Rhino EVO sliders
    • Capture live motion and time-lapse shots
    • Simple Time-lapse and Advanced Time-lapse options, the latter eliminating the need for an intervalometer
    • Control wheel can be turned in real time during motion capture to spontaneously adjust the camera
    • Ultra-precise .7µ resolution drive system
    • 7-hour built-in battery
    • Stealth Drive nearly silent operation at low speeds
    • Auto-sensing end-bumper technology
    • Advanced magnetic encoder technology provides highly responsive wheel control
  UPC: 638170293863
• Slider EVO Carrying Case (24") Store and protect your 24" EVO camera slider with the Rhino Slider EVO Carrying Case. To facilitate fast setups in the field, the case fits a completely assembled slider, including an attached Rhino Motion, Rhino Arc, and even a fluid head thanks to an expandable "pop top" design. A soft interior lining helps protect the slider from scratches, while retaining straps keep the slider secured in place.
  Key Features
  • • Protects your 24" Rhino Slider EVO
    • Expandable pop-top lets you keep your fluid head attached
    • Retaining straps keep your slider in place
  UPC: 638170293924

• EVO Carbon Rails (24")

• Camera Carriage

• 2 x End Caps with All-Terrain Legs

• Limited Lifetime Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Slider EVO Carbon (24")

  Load Capacity	15 lb / 6.8 kg

  Camera Mounting Screw	3/8"-16 Male
  Tripod Mounting	3 x 1/4"-20 Female Thread 3 x 3/8"-16 Female Thread

  Material	Carbon Fiber

  Track Length	24" / 61 cm
  Weight	4 lb / 1.8 kg

  Box Dimensions (LxWxH)	29.1 x 10.35 x 3.15"

• Motion for EVO Sliders

  Box Dimensions (LxWxH)	10.3 x 9.4 x 4.4"

• Slider EVO Carrying Case (24")

  Material	Ballistic nylon
  Dimensions	29 x 9 x 4" (73.7 x 22.9 x 10.2 cm)
  Weight	3.44 lb (1.56 kg)

  Box Dimensions (LxWxH)	29.0 x 9.4 x 4.4"
