Product description

• Slider EVO Pro (42")
  • Why Rhino Slider EVO
  • New to Rhino? Learn the System
  • 5 Beginner Slider Tips | Move with Rhino
  • Best FOCAL LENGTH for SLIDER shots (Rokinon Cine Lens Bundle) | Move with Rhino

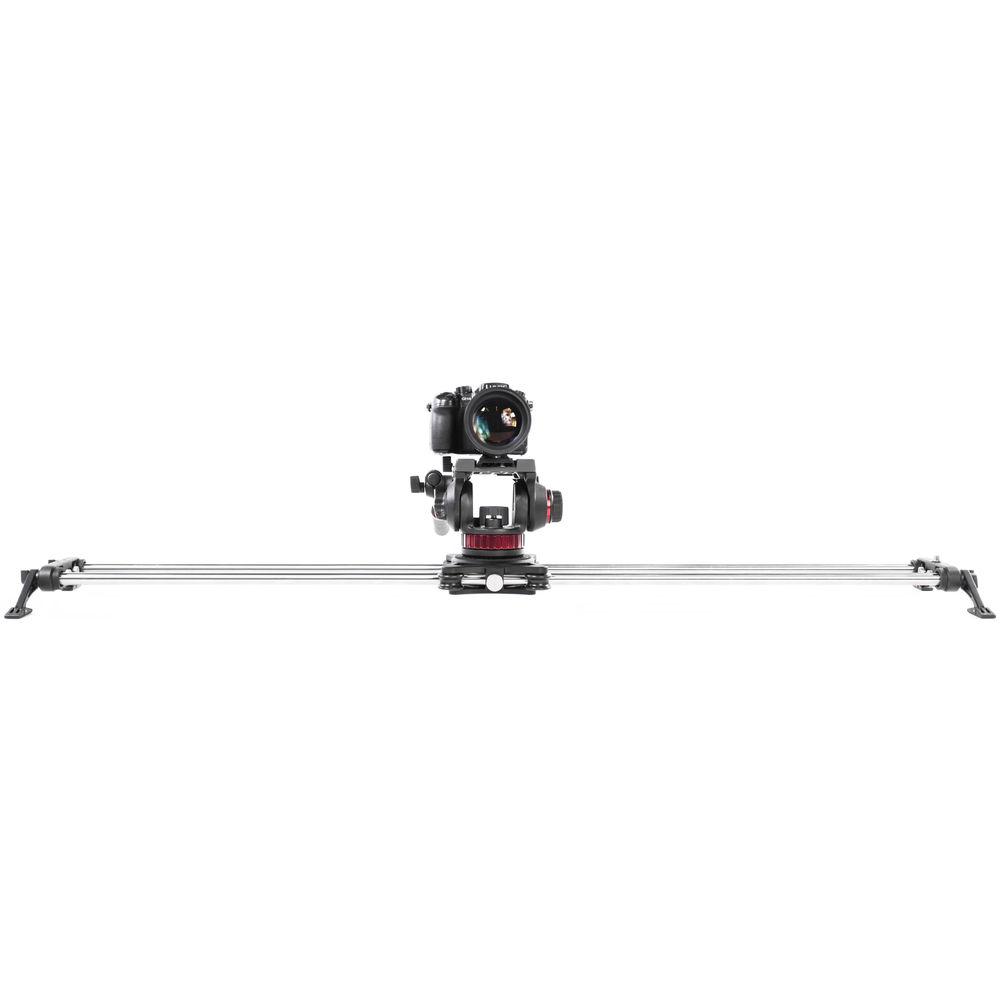

  The Rhino Slider EVO Pro is a highly versatile, belt-driven camera slider that can adapt to your shooting needs. The system includes stainless steel rails that support loads up to 50 lb, which can be swapped for optional 42" rails when a more travel-friendly size is required. Additionally, optional carbon fiber rails are available for when you're working with lighter loads and want to keep the weight of the slider down. The slider can also be upgraded to a motorized system with the addition of the separately available Rhino Motion, allowing you to capture smooth live motion and time-lapses with a single motor.

  The Rhino Slider EVO features a 3/8"-16 screw on the camera carriage for attaching a ball head or flat-base fluid head. It can be center-mounted on a tripod via 1/4"-20 and 3/8"-16 threaded holes in the center of the rails, or supported using two tripods or stands via 1/4"-20 and 3/8"-16 threads at the ends of the tripod. You can also setup the slider for ground-level or table-top shooting using the included spring-loaded legs with index marks. The legs fold up for compact storage.
  Key Features
  • • Ability to switch between carbon fiber and stainless steel rails (24" and 42" lengths)
    • 42" stainless steel included
    • Supports loads up to 50 lb
    • Optional Rhino Motion add-on
    • Camera carriage with 3/8"-16 screw
    • Integrated carriage brake
    • Optional flywheel
    • 3/8"-16 and 1/4"-20 mounting threads (center and ends)
    • Spring-loaded, folding all-terrain legs with index marks
  UPC: 638170293849
• EVO Carbon Rails (24") The 24" Rhino EVO Carbon Rails are designed for use with any Rhino Slider EVO model. Thanks to the EVO Slider's interchangeable rail system, you can easily swap out the longer 42" rails of EVO Carbon and PRO models for 24" rails when you need a more mobile setup, or swap out the rails on a 24" EVO PRO when you want to reduce slider weight and are working with lighter camera loads. The rails weigh just 1 lb and support loads up to 15 lb. The rails are also compatible with Rhino V1 Sliders.
  Key Features
  • • Carbon fiber rails for Rhino Slider EVO
    • 15 lb load capacity
    • Integrated center mounting plate

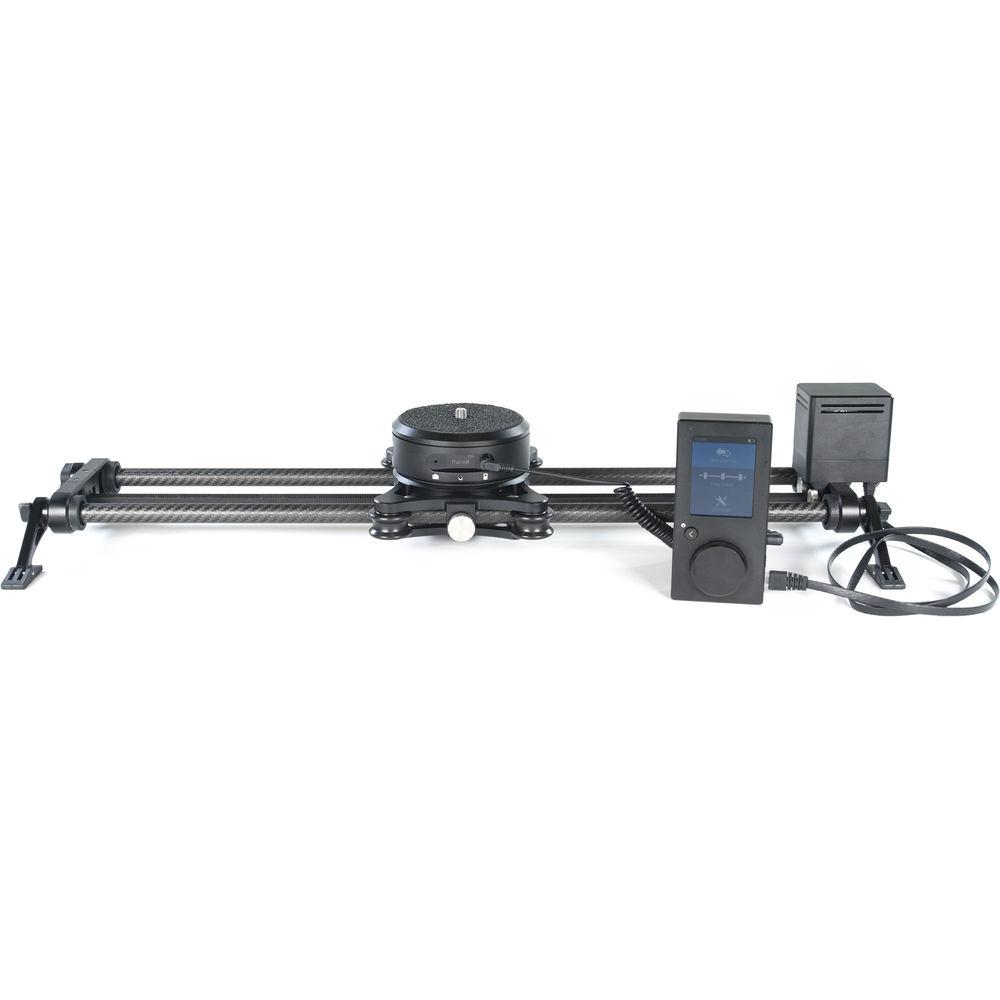

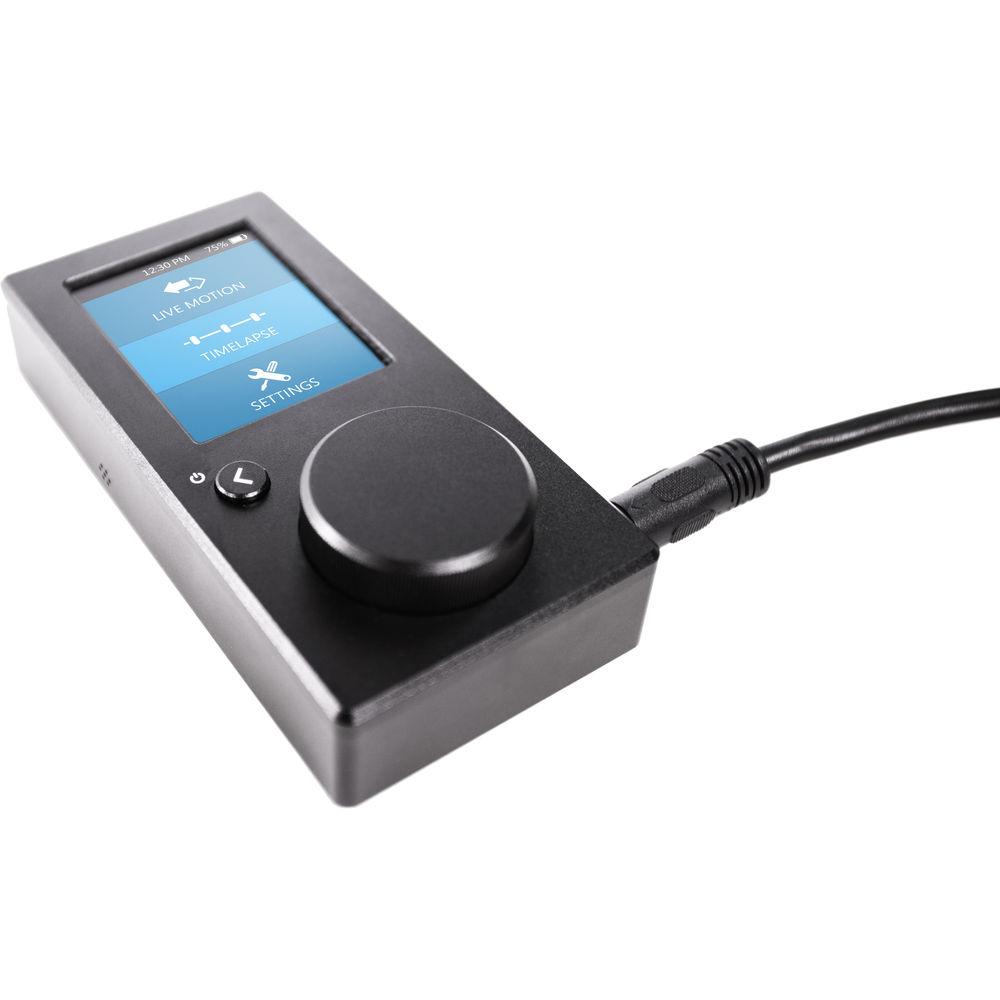

• Motion for EVO Sliders Rhino Motion includes a motor and controller for Rhino EVO sliders. It's designed to capture live motion and time-lapse shots, and offers two time-lapse modes — Simple Time-lapse and Advanced Time-lapse, the latter allowing you to control the shutter, so you won't need an external intervalometer. The shutter is released by the Rhino Motion itself.

  Within the other option — Simple Time-lapse — you get to assign the travel distance, total time, and ramping (easing in and out). You can also assign a Loop setting that lets you repeat the assigned timeplase in the opposite direction so you can film an interview with your B-camera autonomously moving back and forth. After the start of the time-lapse, the LCD of the controller will then display status figures, such as Percentage Done.

  During live motion capture you can turn the camera in real time by turning the wheel on the dial, ensuring a better chance of capturing spontaneous moments. The wheel incorporates an advanced magnetic encoder technology that provides highly responsive control during filming as well as menu navigation.

  The motor features an ultra-precise .7µ resolution drive system and 7-hour built-in battery. The extended battery life enables you to use Rhino Motion on multiple shoots on a single charge. The motor also functions at nearly silent operation when at low speeds, so you can capture quality video and audio simultaneously.
  Key Features
  • • Motor and controller for Rhino EVO sliders
    • Capture live motion and time-lapse shots
    • Simple Time-lapse and Advanced Time-lapse options, the latter eliminating the need for an intervalometer
    • Control wheel can be turned in real time during motion capture to spontaneously adjust the camera
    • Ultra-precise .7µ resolution drive system
    • 7-hour built-in battery
    • Stealth Drive nearly silent operation at low speeds
    • Auto-sensing end-bumper technology
    • Advanced magnetic encoder technology provides highly responsive wheel control
  UPC: 638170293863
• Arc Motorized Pan Head for Rhino Motion Liven up your time-lapse and real-time motion shots with the Rhino Arc Motorized Pan Head. Designed to integrate with an existing Rhino Motion system, the Rhino Arc lets you add panning to your linear movement to create dynamic arcing or sweeping shots. Installing directly on your EVO Slider carriage, the compact device weighs only about 1 lb, yet supports camera setups weighing up to 15 lb. Its internal motor is powered by a built-in rechargeable battery.

  The Rhino Arc connects directly to the Rhino Motion controller using an included cable, allowing you to control both linear and pan motion using a single controller. An OLED screen on the Rhino Arc provides quick visual verification that both devices are paired together. For creating time-lapse videos, a built-in intervalometer is used to trigger your camera's shutter when connected to the camera using a separately available shutter release cable.
  Features
  • • For use with Rhino Motion motorized slider system
    • Adds panning motion to your linear slides
    • 15 lb Load capacity
    • 360° Rotation
    • Internal motor
    • Built-in rechargeable battery
    • Connects to Rhino Motion controller using included cable
    • Built-in intervalometer
    • OLED status screen
    • Compact size
    • Weighs 17 oz
  UPC: 638170293870

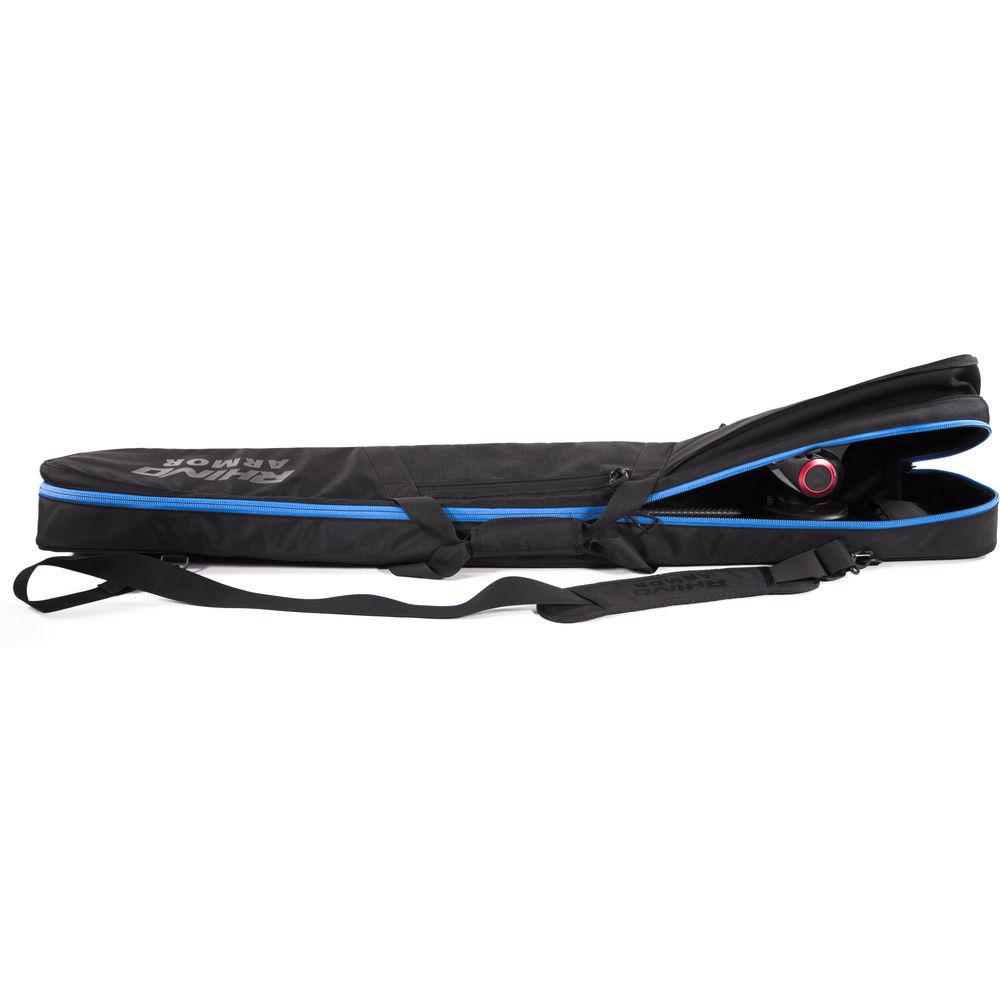

• Slider EVO Carrying Case (42") Store and protect your 42" EVO camera slider with the Rhino Slider EVO Carrying Case. To facilitate fast setups in the field, the case fits a completely assembled slider, including an attached Rhino Motion, Rhino Arc, and even a fluid head thanks to an expandable "pop top" design. A soft interior lining helps protect the slider from scratches, while retaining straps keep the slider secured in place.
  Key Features
  • • Protects your 42" Rhino Slider EVO
    • Expandable pop-top lets you keep your fluid head attached
    • Retaining straps keep your slider in place
    • Storage for extra 24" EVO rails
  UPC: 638170293931

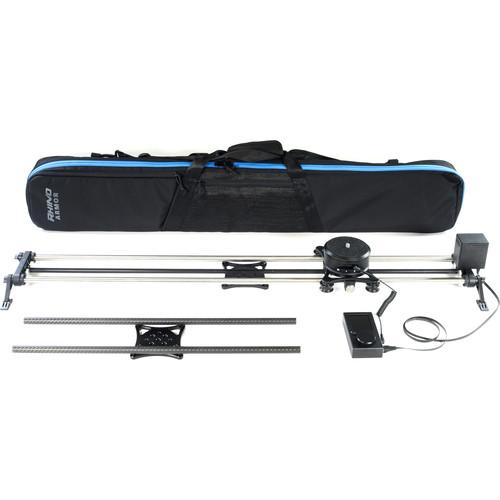

• EVO PRO Rails (42")

• Camera Carriage

• 2 x End Caps with All-Terrain Legs

• Limited Lifetime Warranty

• Limited 1-Year Warranty

• Rhino Motion Control Cable

• Mini-USB to USB Cable

• USB Wall Charger

• Allen Wrench

• Limited 1-Year Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Slider EVO Pro (42")

  Load Capacity	50 lb / 22.7 kg

  Camera Mounting Screw	3/8"-16 Male
  Tripod Mounting	3 x 1/4"-20 Female Thread 3 x 3/8"-16 Female Thread

  Material	Stainless Steel

  Track Length	42" / 106.7 cm
  Weight	10.4 lb / 4.7 kg

  Box Dimensions (LxWxH)	47.0 x 10.2 x 3.0"

• EVO Carbon Rails (24")

  Material	Carbon fiber rails 6061 aluminum mounting plate
  Load Capacity	15 lb (6.8 kg)
  Dimensions	24 x 4.5 x 1" (61 x 11.4 x 2.5 cm)
  Weight	1 lb (0.45 kg)

  Box Dimensions (LxWxH)	25.1 x 5.8 x 2.3"

• Motion for EVO Sliders

  Box Dimensions (LxWxH)	10.3 x 9.4 x 4.4"

• Arc Motorized Pan Head for Rhino Motion

  Load Capacity	15 lb (6.8 kg)
  Panning Range	360°
  Screw Thread	3/8"-16
  Mounting Thread	3/8"-16
  Charging Port	Mini-USB
  Weight	17 oz (482 g)

  Box Dimensions (LxWxH)	10.2 x 7.1 x 3.1"

• Slider EVO Carrying Case (42")

  Material	Ballistic nylon
  Dimensions	46 x 9 x 4" (116.8 x 22.9 x 10.2 cm)
  Weight	5.19 lb (2.35 kg)

  Box Dimensions (LxWxH)	46.6 x 9.3 x 4.25"
