User Manual for RhinoShield Wide Macro Lens Click to enlarge the picture
Contents of the user manual for the RhinoShield Wide Macro Lens
- Product category: Add-On Lenses & Filters RhinoShield
- Brand: RhinoShield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RhinoShield Add-On Lenses & Filters
 |
User manual for the RhinoShield Wide Macro Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RhinoShield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RhinoShield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RhinoShield product will considerably shorten its lifespan!
|

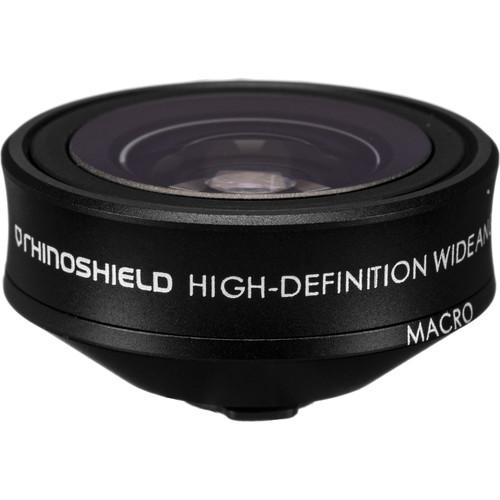

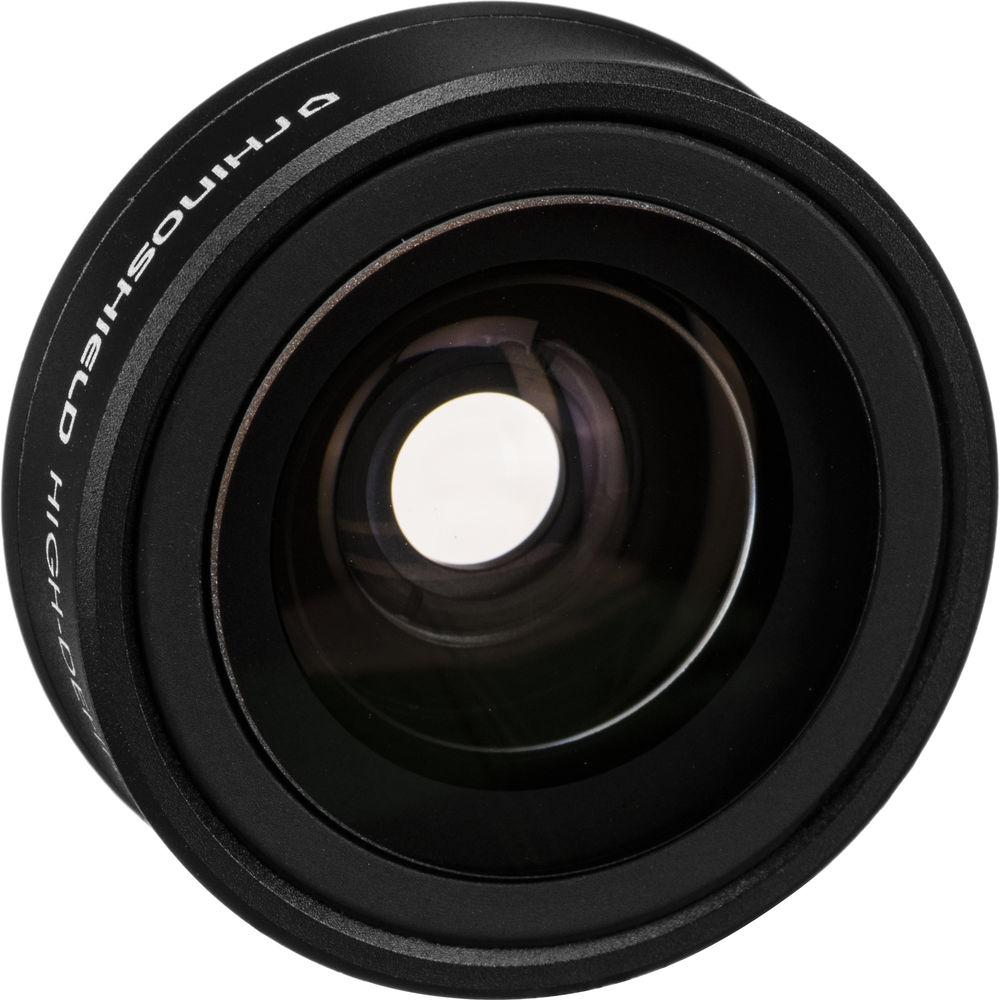

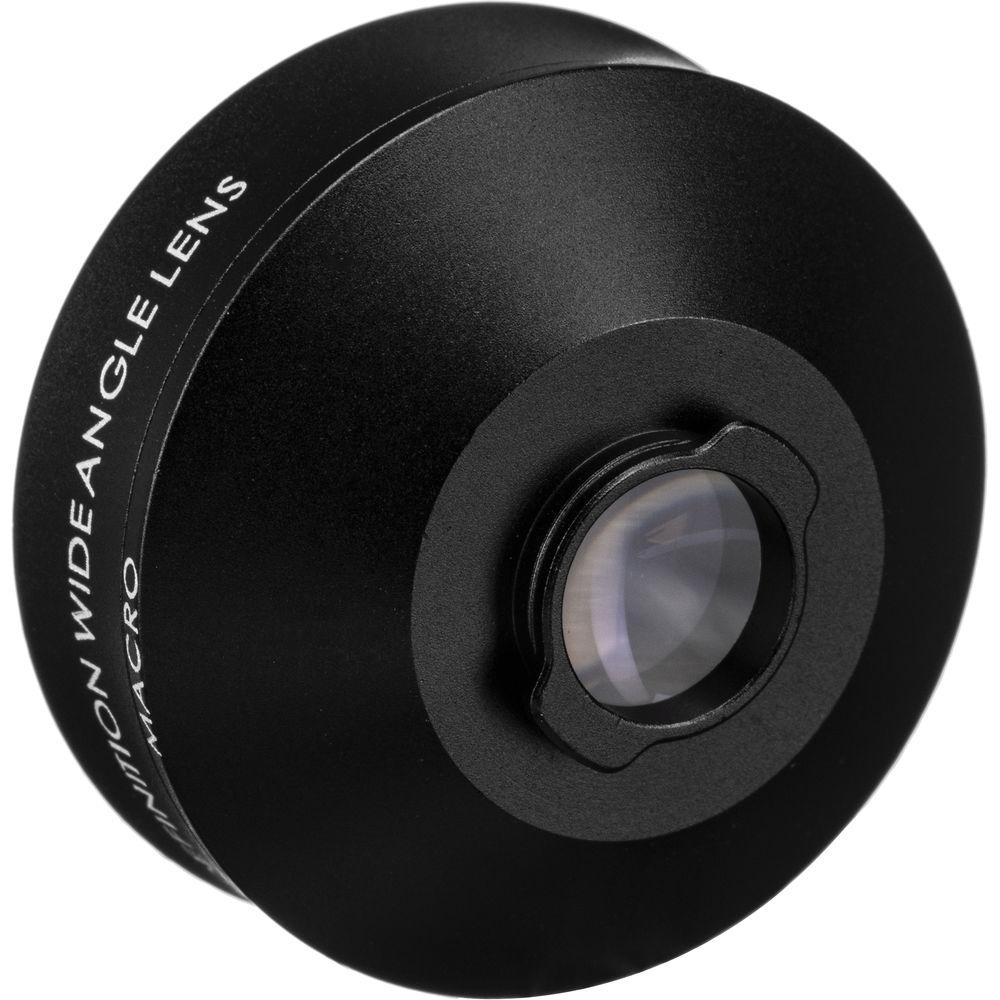

Product description The Wide + Macro Lens from RhinoShield is a 2-in-1 wide-angle and macro lens. When both lenses are screwed together, you'll be able to capture a more expansive frame. Once the two lenses are unscrewed, the macro lens lets you capture extremely detailed close-up shots of small objects.
RhinoShield designed this lens with an overall viewing angle of 115°, three elements in three groups, a magnification of 0.6x, and aluminum alloy construction. The wide-angle lens has a double-sided, multi-layered coating, a focal length of 18mm, an axis resolution of 350 LP/mm, and a corner resolution of 250 LP/mm. The macro lens provides a focal length of 25mm, a multi-layered coating, a visual magnification of 4x, an axis resolution of >200 LP/mm, and an edge resolution of >100 LP/mm.
Please note that this lens requires a RhinoShield Case, such as the SolidSuit, Mod NX / Mod, or PlayProof, and a RhinoShield phone-specific lens mount. This lens can be switch between different phones with the appropriate mount, but is not compatible with adapters made before November 2018. General Features - Wide-Angle
- Snap imersive landscapes by getting more into the picture. The wide-angle lens also allows you to enhance lines in a composition, helping to focus the attention of the viewer onto the main subject.
- Macro
- Capture the rich details of the small objects. Designed for macro photography, this lens is great for a summer jaunt in the woods to photograph nature up close. Just remove the outer wide-angle lens to access the macro lens.
- Optics
- Made to exacting specifications, the RhinoShield Wide + Macro lens does not cause vignetting (dark corners) or fisheye distortion. Each lens undergoes a special multi-layer coating process so you get crisp images.
- Built to Last
- Each RhinoShield lens has a high-grade anodized aluminum outer body. The special surface treatment gives it added wear resistance and prevents corrosion.
- Limited 1-Year Warranty
- The limited 1-year warranty begins on the day you receive your lens adapter. It only covers defects in the material or workmanship.
UPC: 888543004835 In the Box RhinoShield Wide + Macro Lens Lens Cap Lens Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RhinoShield Wide Macro Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRhinoShield MAA1 Specs | | | Focus Type | Fixed focus lens | | Angle of View | 115° | | Lens Material | Optical glass | | Lens Body Material | Aluminium alloy with anodic oxidation on the surface | | Mount | Customized bayonet-style mount | | Lens Construction | 3 elements in 3 groups | | Magnification | 0.6x | | Color | Black | | Dimensions | Diameter: 1.2" / 30 mm
Thickness: 0.6" / 15.8 mm | | Weight | 0.8 oz / 22.0 g | | | | Lens Coating | Multi-layered coating, double sided | | Resolution | Axis: 350 LP/mm
Corner: 280 LP/mm | | Focal Length | 18mm | | | | Flange Working Distance | 20mm | | Focal Length | 25mm | | Lens Coating | Multi-layered coating | | Resolution | Axis: >200 LP/mm
Edge: >100 LP/mm | | Visual Magnification | 4x | | | | Package Weight | 0.135 lb | | Box Dimensions (LxWxH) | 4.3 x 3.5 x 1.5" |
