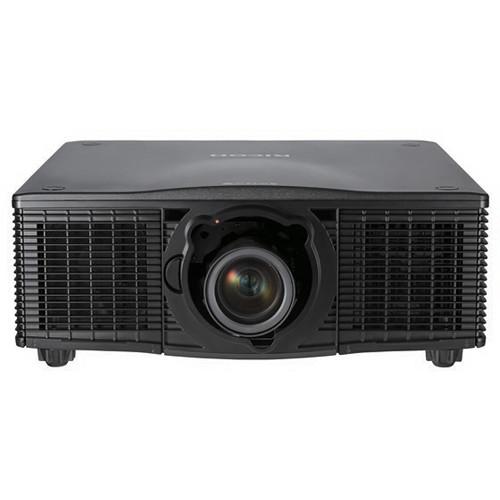

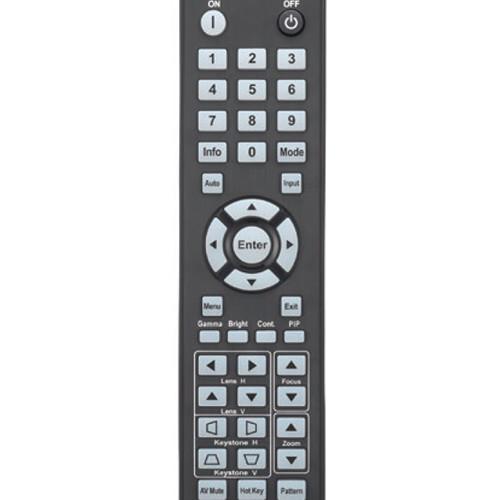

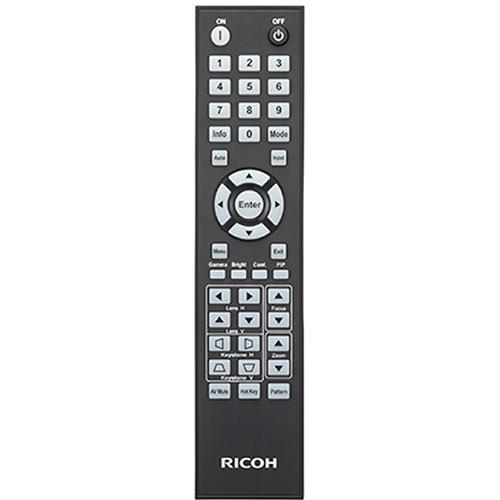

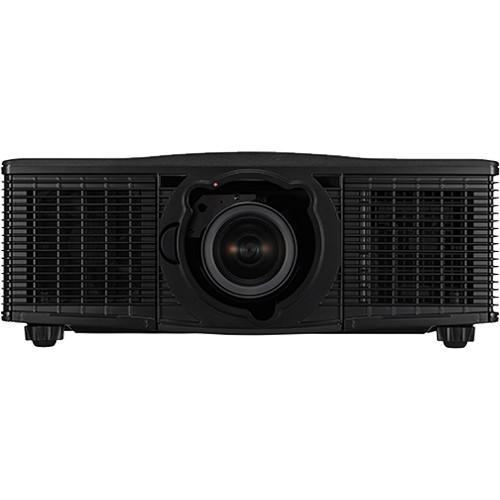

Product description The 12000-Lumen WUXGA DLP Projector from Ricoh is designed with a dual-lamp system and a brightness of 12,000 lumens, so you can project clearly even in spaces with excessive ambient lighting. The projector is useful in showcasing important presentations, videos, and lifelike projections in auditoriums, churches, conference centers, and other larger venues with crisp text and breathtaking colors. It connects to diverse media with ultra-reliable HDBaseT connectivity. The projector offers a 360° viewing angle that tilts to project on ceilings, angled walls, and floors. With the included remote control you can access key features and menus at any time during the presentation. - WUXGA images with 1920 x 1200 dpi resolution
- 5000:1 contrast ratio for clear delineation between every line, shape and color
- With vertical and horizontal keystone correction and pincushion correction, the projection system focuses automatically to square up the image
- Use 4-point correction to adjust the corners of your projections for cleaner, sharper angles even when presenting on rounded or other non-standard surfaces
- HDBaseT connectivity to display uncompressed video and audio over existing network cabling without degrading the signal or experiencing buffering delays
- With its HDMI, DVI-D, and VGA ports, you can connect to media sources like computers, TVs, DVDs, and more
- With the Eco Mode option, you can adjust brightness levels on darker images and extend lamp life from approximately 1500 hours up to 2000 hours
- Other features include portrait mode, blending, geometric correction, PIP (Picture-in-Picture), PBP (Picture-Beside-Picture)
- Supports Crestron, PJLink, AMX
- Supported OS
Projector Management Utility: Windows Server 2008, Windows Server 2008(x64), Windows Server 2008 R2(64bit), Windows 8.1, Windows 8.1(x64), Windows 8, Windows 8(x64), Windows 7, Windows 7(x64), Windows Vista, Windows Vista(x64) In the Box Ricoh 12000-Lumen WUXGA DLP Projector VGA Cable DVI to HDMI Adapter Power Cord Remote Control and Batteries Limited 90-Day Warranty on Lamp Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh 12000-Lumen WUXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh PJ KU12000 Specs | | | Display System | 0.96" DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 12,000 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 5000:1 | | DLP Link 3D | Yes | | | | Keystone Correction | Vertical: ± 20°

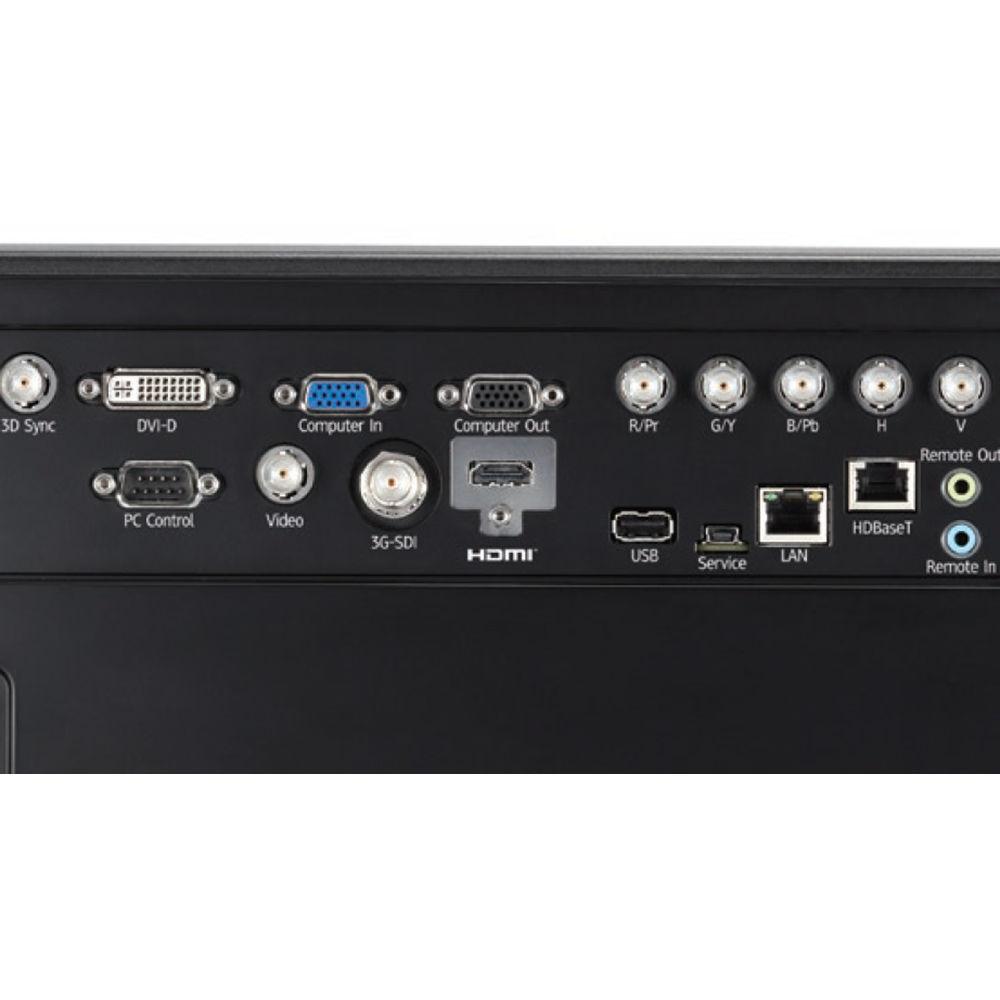

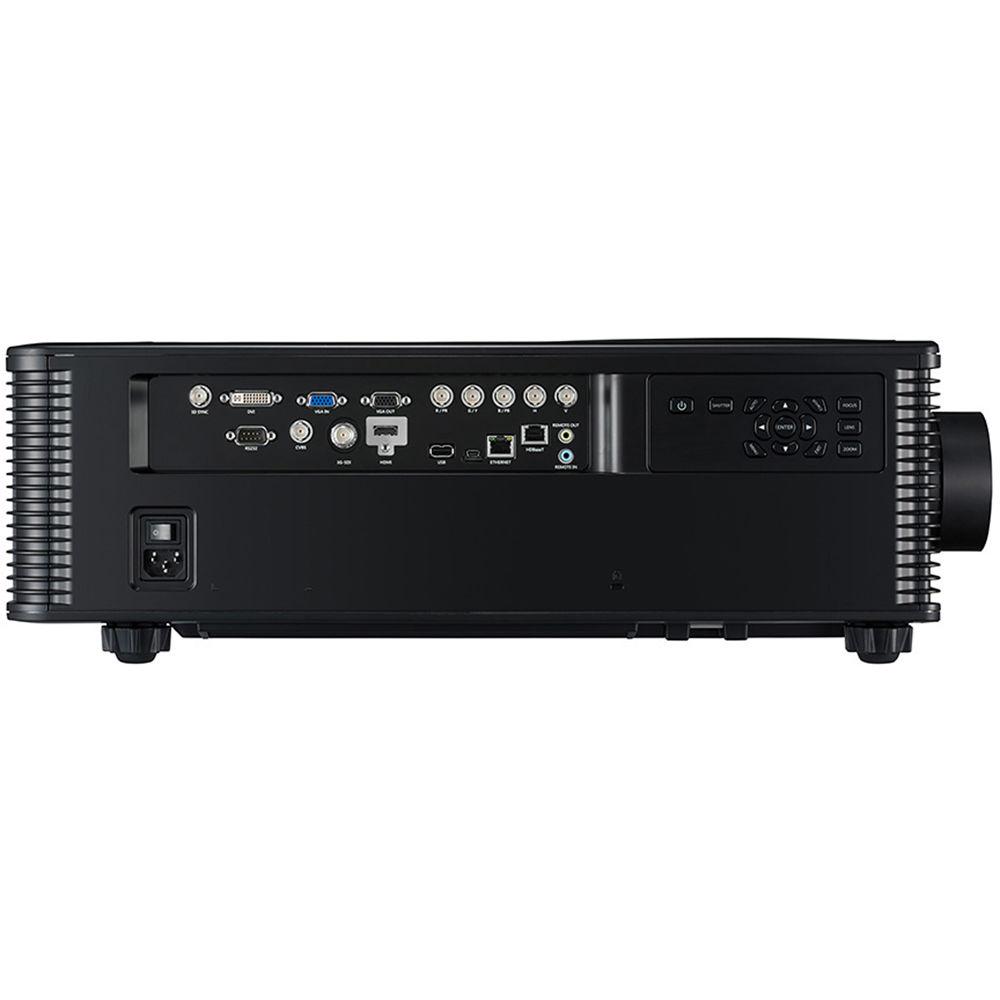

Horizontal: ± 20° | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x DVI-D Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
2 x Ethernet (RJ45) LAN
1 x 3G-SDI (BNC) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Type-A Female
1 x Mini-USB Type-B Female
1 x RS-232C (Unspecified Connector) Control 1 x 3D Synch
1 x 9-pin D-SUB RS-232 port | | | | Lamp Power | 465 W | | Expected Lamp Life | Medium Brightness: 1500 Hours
Low Brightness: 2000 Hours | | Fan Noise | Medium Brightness: 41 dB
Low Brightness: 38 dB | | Power Consumption | Medium Brightness: 1150 W
Low Brightness: 920 W | | Temperature | Storage
14 to 140°F (-10 to 60°C)
Humidity: 5 - 90% | | Dimensions (W x H x D) | 20.5 x 7.6 x 23.3" / 52.1 x 19.3 x 59.2 cm | | Weight | 52.4 lb / 23.8 kg |
