User Manual for Ricoh 3000-Lumen SVGA Entry Level DLP Projector Click to enlarge the picture
Contents of the user manual for the Ricoh 3000-Lumen SVGA Entry Level DLP
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
 |
User manual for the Ricoh 3000-Lumen SVGA Entry Level DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|

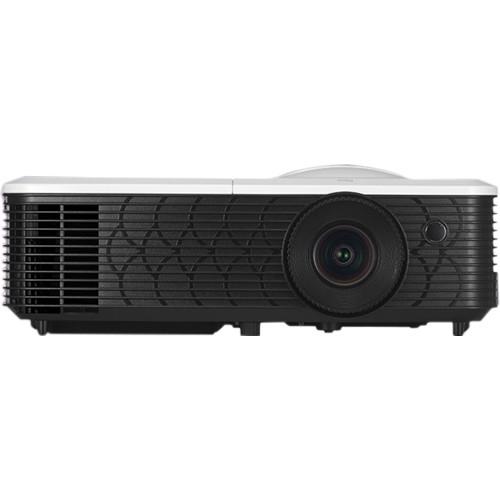

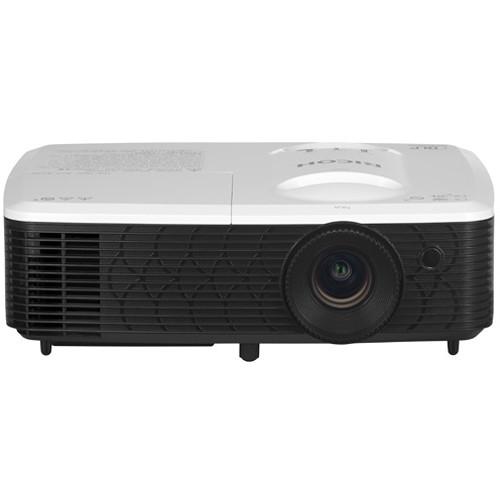

Product description The 3000-Lumen SVGA Entry Level DLP Projector from Ricoh features an SVGA resolution of 800 x 600 dpi, a 2200:1 contrast ratio, and long lamp life (up to 6000 hours in eco mode). It uses DLP (Digital Light Processing) technology for more precise presentations with brighter colors, more consistency, and less lag. The remote control makes operation easy, and the wide choice of interface connections, including HDMI, allows input from a range of devices for maximum flexibility. - Project images with SVGA resolution at up to 800 x 600 dpi with a 4:3 aspect ratio for easy viewing
- Built-in 2W speaker, audio in/out ports, and a monitor port
- With projection sizes of up to 300" diagonally, you can help to eliminate shadows by placing the projector just a few feet away from the screen
- With 1000 hours of lamp life in eco mode, you can reduce power consumption and won't have to replace any bulbs
- You can opt for external speakers to enhance on-screen action, and operate as low as 31 dB with nominal auxiliary noise to minimize distractions
- You can easily plug in laptops, tablets, Blu-ray players, and more to offer your audience a wide variety of media
- Input Signals: NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43, 60 Hz, 50 Hz
- AV mute (blank), freeze, re-size (magnify), wall color mode, Kensington lock
In the Box Ricoh 3000-Lumen SVGA Entry Level DLP Projector RGB Cable Power Cord Remote Control with Batteries Limited 90-Day Warranty on Lamp Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh 3000-Lumen SVGA Entry Level DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

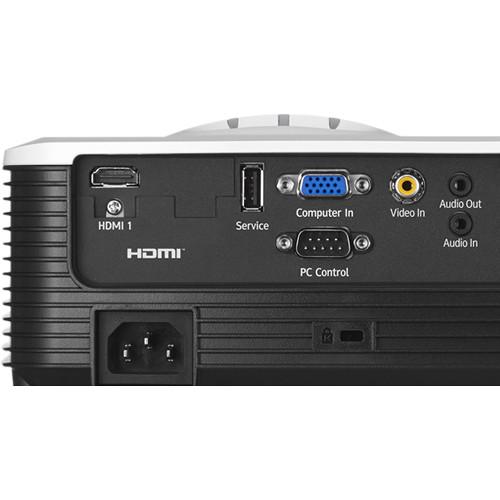

Technical parametersRicoh S2440 Specs | | | Display System | 0.55" DLP | | Native Chip Resolution | 800 x 600 (SVGA) | | Max Brightness | 3000 Lumens | | Aspect Ratio | 4:3 | | Contrast Ratio | 2200:1 High Contrast Mode: 10,000:1 | | DLP Link 3D | Yes | | | | Focus | Manual | | Throw Distance | 3.9 - 40' / 1.189 - 12.192 m | | Throw Ratio | 1.95 - 2.15:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Digital Zoom | 1.1x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control/Service Video Input: 1 x VGA
USB: 1 x USB (Type A) | | | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 6000 Hours | | Fan Noise | Medium Brightness: 34 dB
Low Brightness: 31 dB | | Security | Password Protection | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: <262 W
Low Brightness: <216 W | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Storage Humidity | 20 - 80% | | Dimensions (W x H x D) | 11.8 x 4.1 x 9.3" / 30.0 x 10.4 x 23.6 cm | | Weight | 5.74 lb / 2.60 kg |
