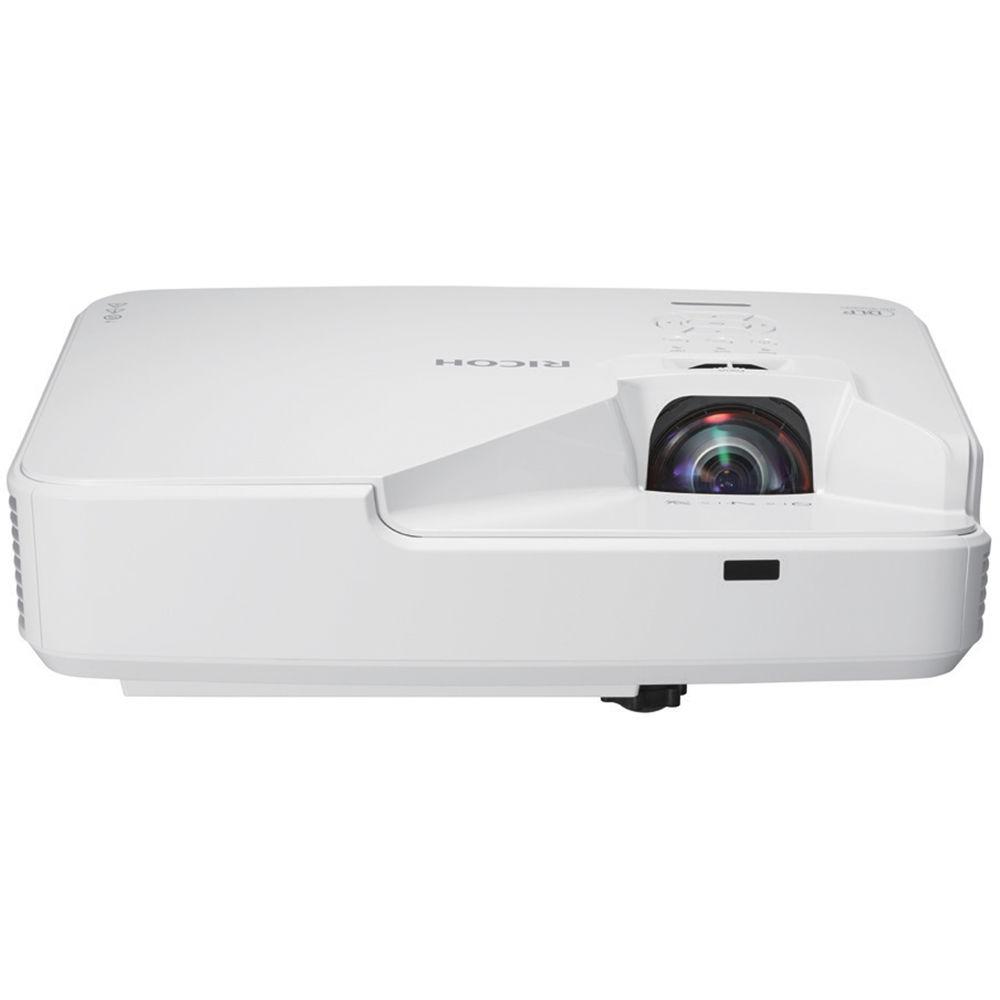

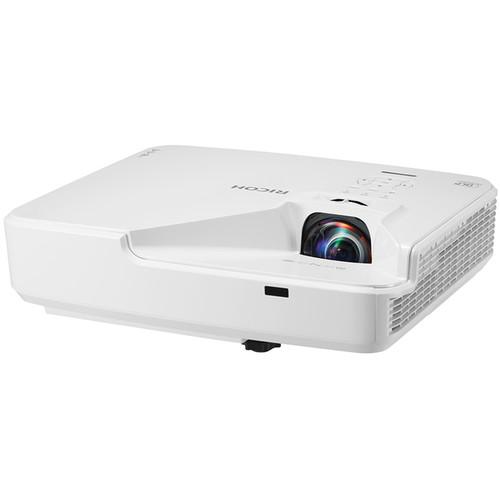

Product description The Ricoh 3000-Lumen XGA Short Throw DLP Projector is designed with semiconductor laser light source technology instead of high-pressure mercury lamps. The projector can run continuously without the overheating and maintenance issues that can plague lamp-operated projection systems. It offers brighter and more vivid colors than most LED hybrid projectors. Furthermore, the projector produces high-definition images at optimal brightness, with up to 3000 lumens, in only three seconds. It shuts down just as quickly, without any distracting residual noise. You'll also never need to replace lamps again; you can project images continuously with a light source life of up to 20,000 hours. - XGA resolution at up to 1024 x 768 dpi with a 4:3 aspect ratio for clear view of every detail

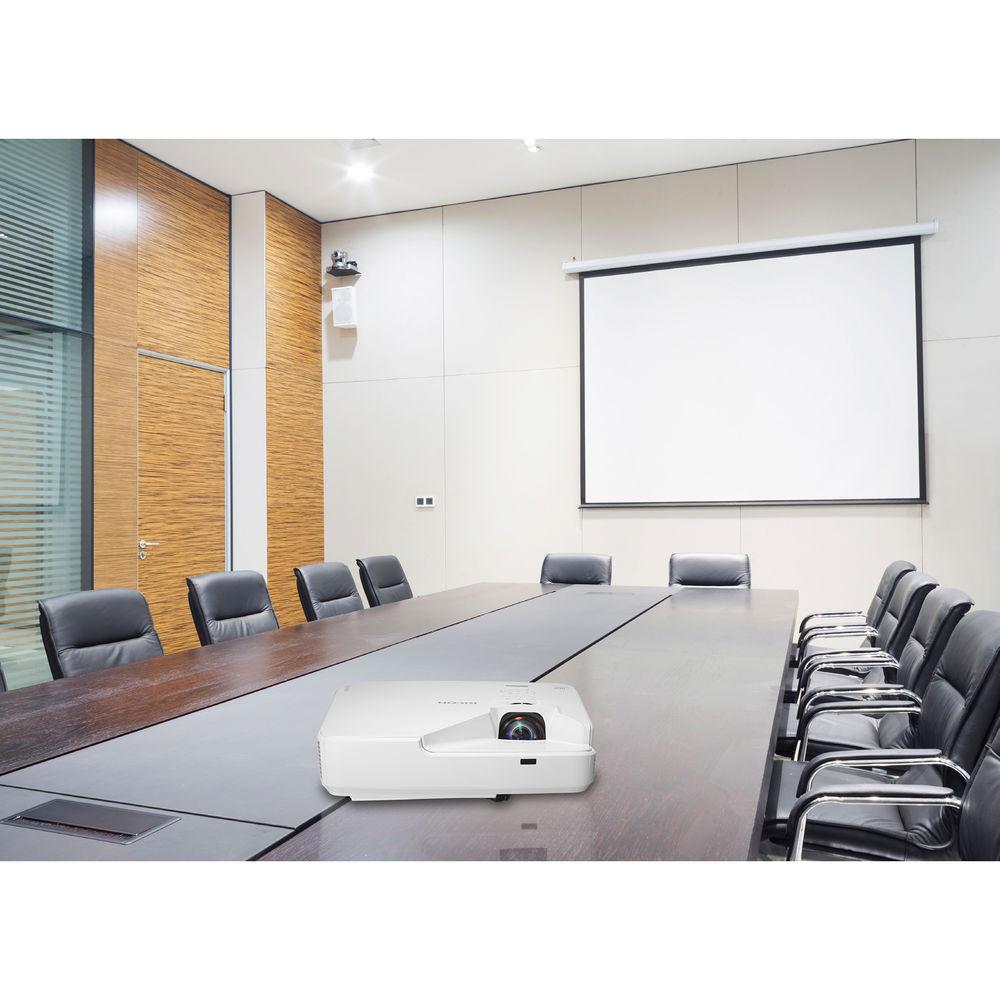

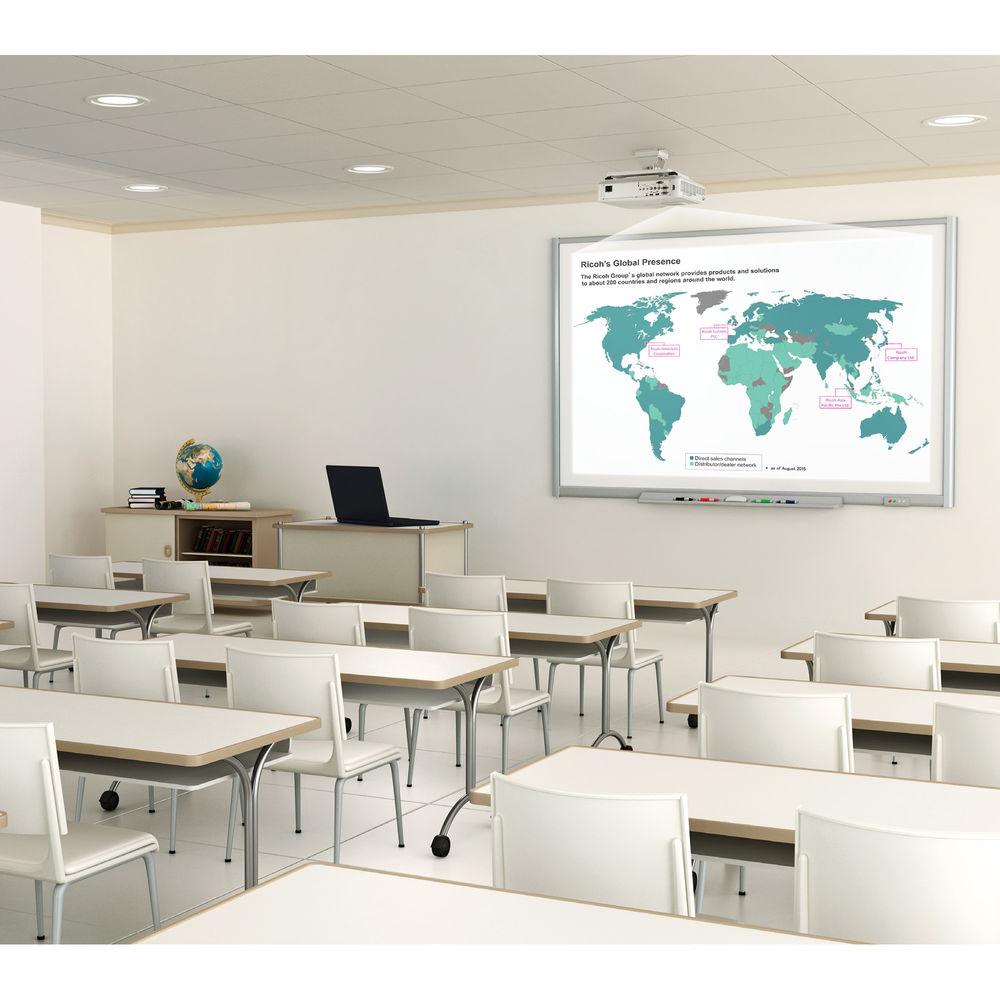

- Use it in corporate or educational settings - such as training rooms, classrooms, and conference centers - to project clear and crisp images, graphs, presentations, videos and more
- You can place it within 50" of the wall or screen without compromising image quality or projection size
- No need to replace lamps, as you can project images continuously with a light source life of up to 20,000 hours

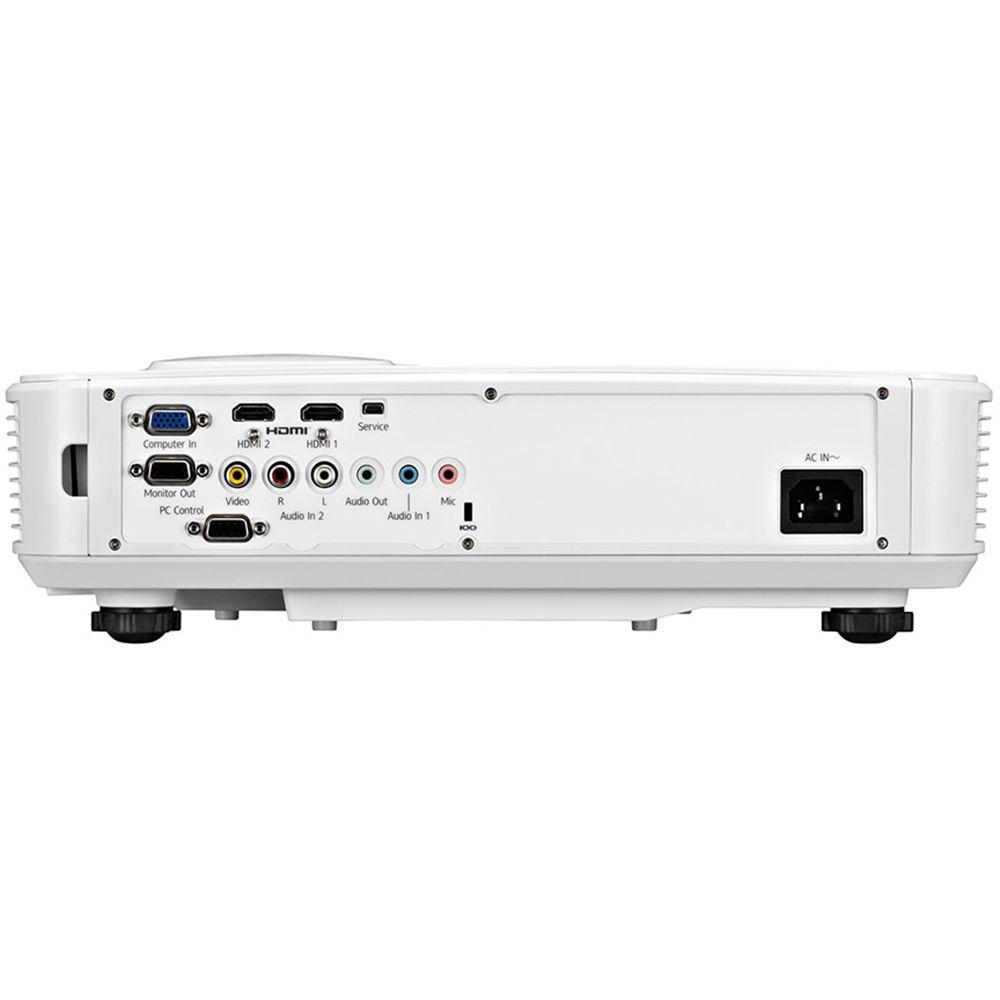

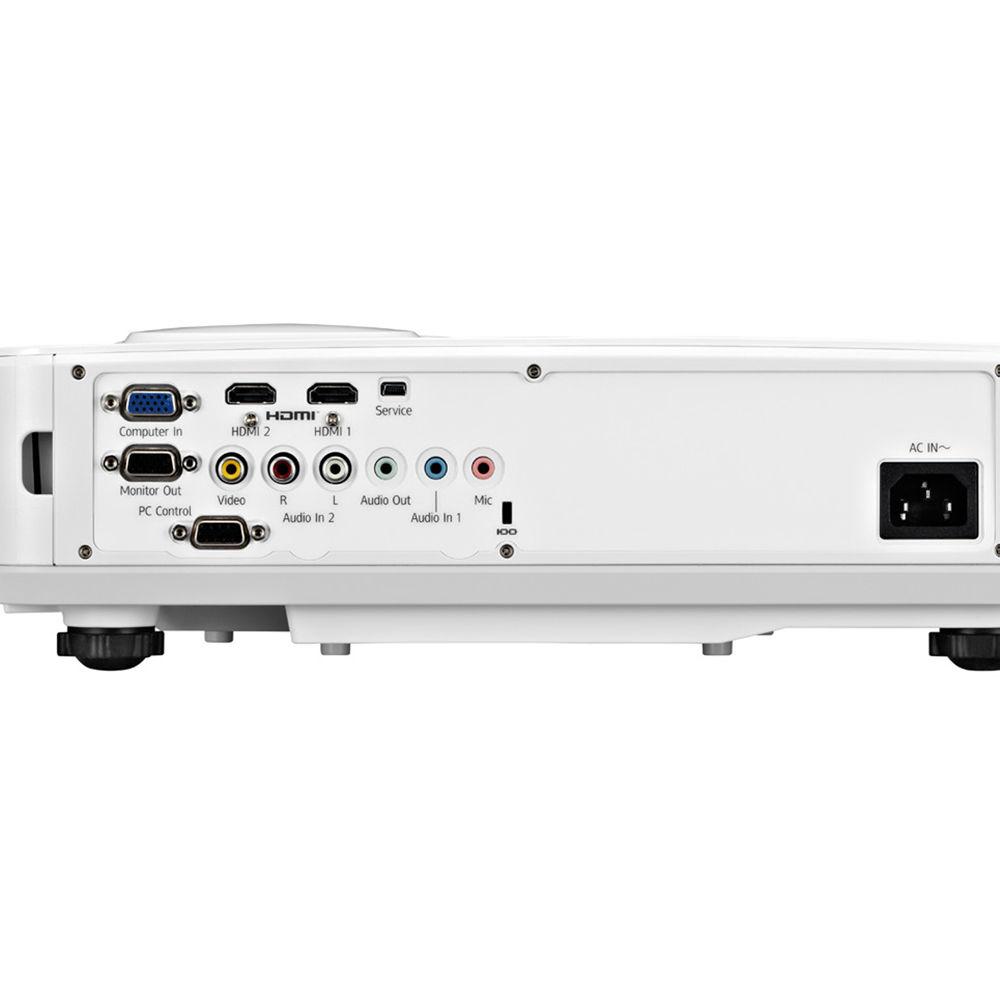

- Multiple input terminals to connect to your choice of multimedia devices. Present charts and graphs from your laptop, or project live-action videos, movies, and more from DVD and Blu-ray players
- Place the short-throw projector on the edge of the desk or table within 50" of the screen and project at up to 80" with remarkable quality
- With its laser light source technology, the projector is ready when you are, hour after hour
- Projector adjusts colors and images to complement the color of your projection surface automatically
- Projection distance from rear of unit to projection surface 2.32 to 4.10' / 0.71 to 1.25 m
- Other features included AV Mute (Blank), Freeze, Re-size (Magnify), Wall Color Mode, Security Bar, Kensington Lock, User Logo, Eco Mode, 3D Projection Ready, Firmware Update (RS232C), Auto Power Off, High Altitude Mode, Tilt Adjustment Feet
In the Box Ricoh 3000-Lumen XGA Short Throw DLP Projector CD-ROM RGB Cable Power Cord Lens Cap Remote Control and Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh 3000-Lumen XGA Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

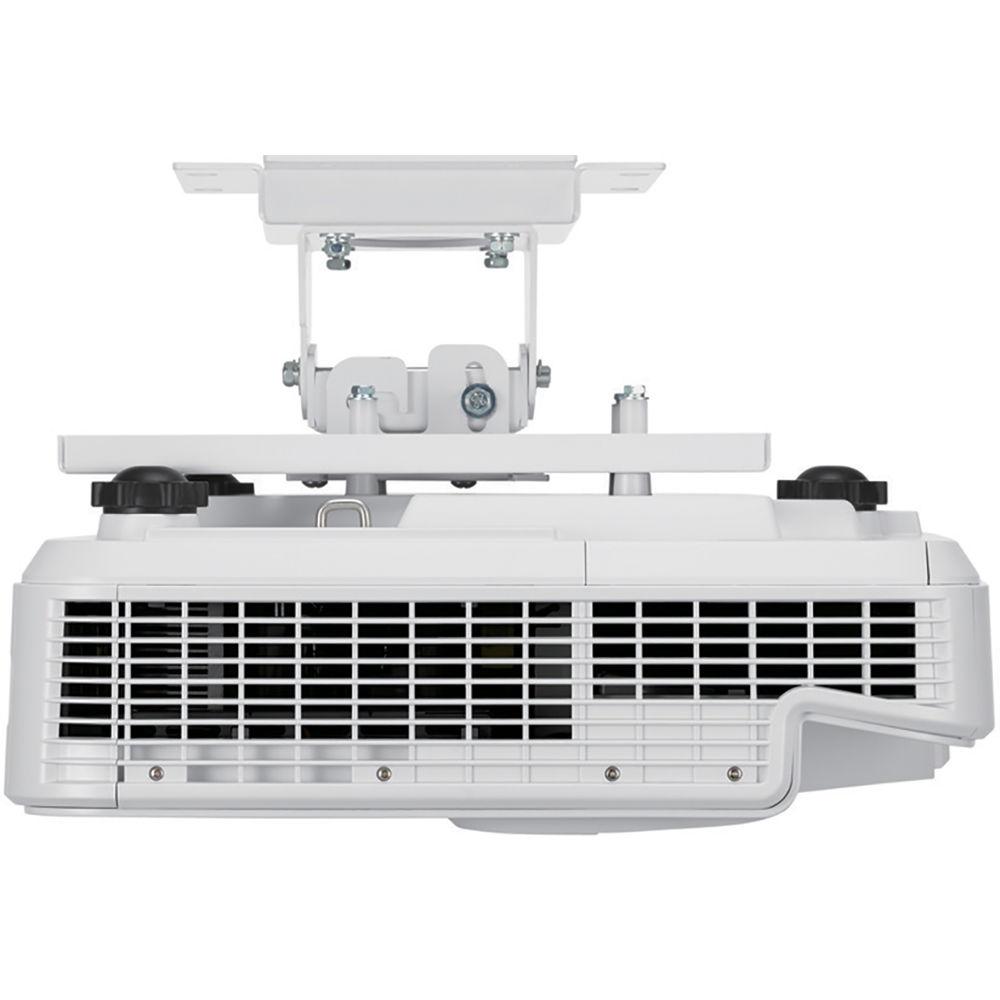

Technical parametersRicoh PJ XL4540 Specs | | | Display System | 1-Chip 0.55" DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 4:3 | | Contrast Ratio | 13000:1 | | DLP Link 3D | Yes | | | | Focus | Manual | | Projection Size | 56.4 - 100" / 143.26 - 254.00 cm | | | | Keystone Correction | Vertical: ± 10° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 2 x HDMI Video (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x RCA Stereo (L/R) Audio (Input) 1 x Composite Input
1 x Microphone Input
1 x Audio Input/Output | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours
Low Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 36 dB
Low Brightness: 32 dB | | Power Consumption | Medium Brightness: 330 W
Low Brightness: 210 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 5 - 95%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 15.0 x 3.3 x 12.1" / 38.1 x 8.4 x 30.7 cm | | Weight | 12.2 oz / .3 kg |
