User Manual for Ricoh 3200-Lumen WXGA Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the Ricoh 3200-Lumen WXGA Short Throw DLP
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
 |
User manual for the Ricoh 3200-Lumen WXGA Short Throw DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|

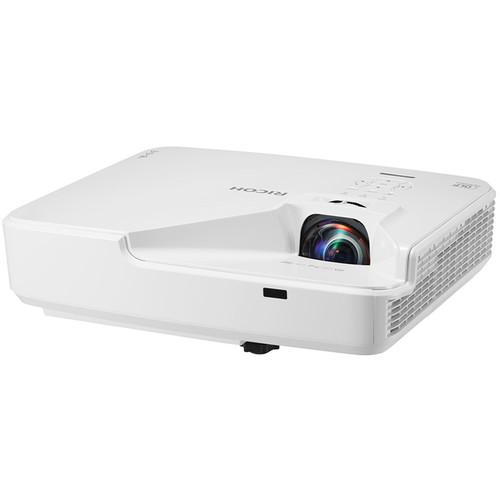

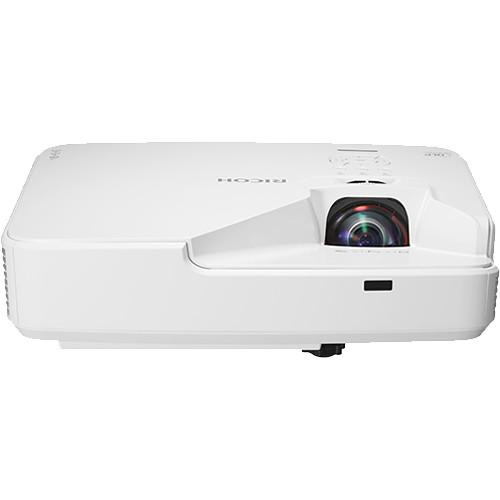

Product description The 3200-Lumen WXGA Short Throw DLP Projector from Ricoh is designed with semiconductor laser light source technology. It projects high-definition images at optimal brightness, with up to 3200 lumens and can project at up to 1280 x 800 dpi WXGA resolution with a 16:10 aspect ratio. The projector has multiple input terminals to connect to multimedia devices like laptops to present charts and graphs, or project live-action videos, movies, and more from DVD and Blu-ray players. You can project images continuously with a light source life of up to 20,000 hours. The included remote control allows you to navigate your presentation with ease. - WXGA resolution at up to 1280 x 800 dpi with a 16:10 aspect ratio for a clear view of every detail
- Use it in corporate or educational settings - such as training rooms, classrooms, and conference centers - to project clear and crisp images, graphs, presentations, videos and more
- Uses a semiconductor laser light source, the projector can run continuously without the overheating and maintenance issues
- Can project images continuously with a light source life of up to 20,000 hours
- Multiple input terminals to connect to your choice of multimedia devices

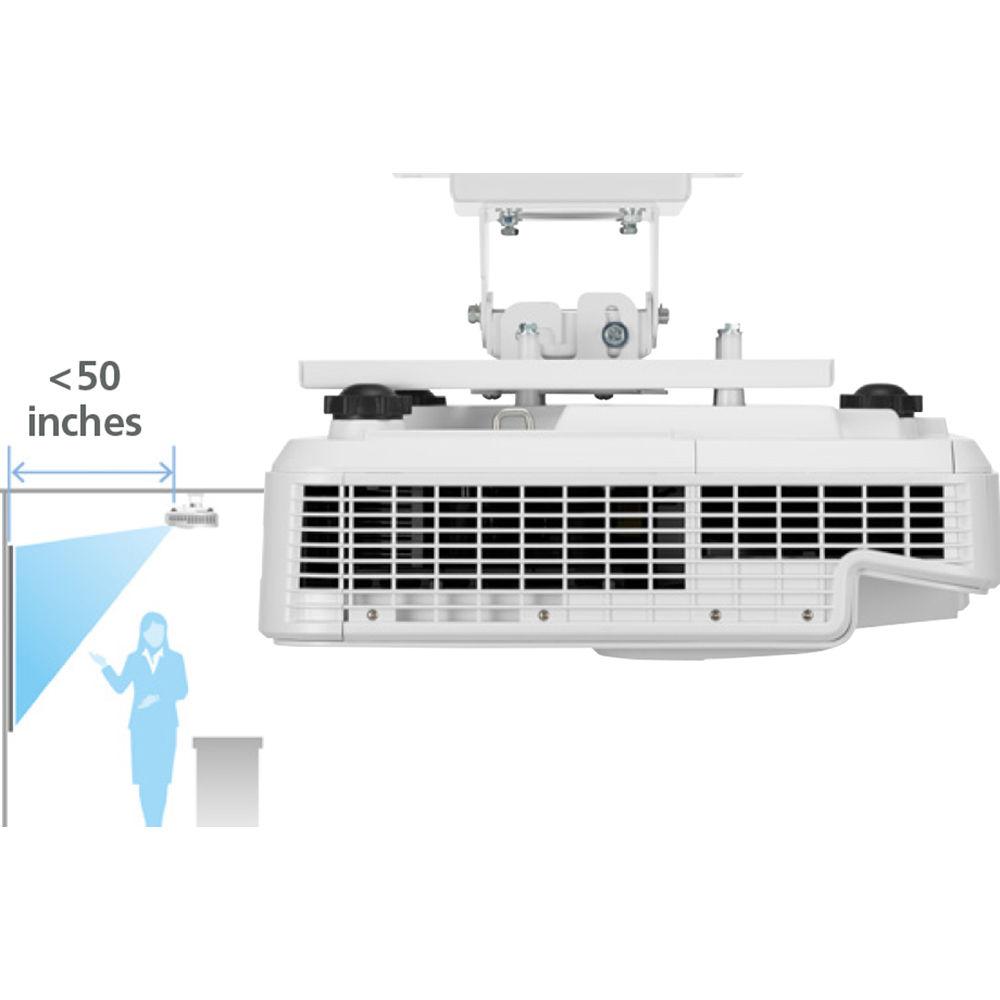

- Place the short-throw projector on the edge of the desk or table within 50" of the screen and project at up to 80" with remarkable quality
- With its laser light source technology, the projector is ready when you are, hour after hour
- Projector adjusts colors and images to complement the color of your projection surface automatically
- Projection distance from rear of unit to projection surface 30.7 to 44.1" / 0.78 to 1.12 m

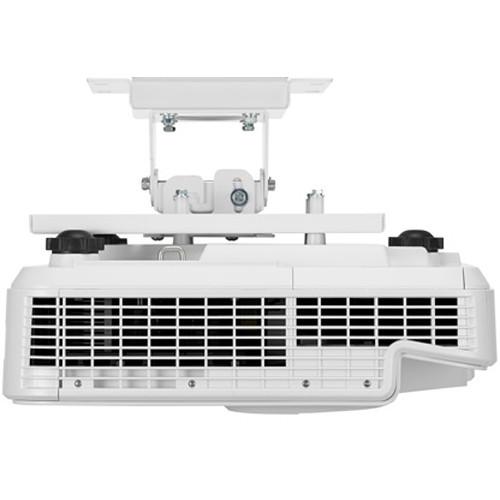

- Other features included AV mute (blank), freeze, re-size (magnify), wall color mode, security bar, Kensington lock, user logo, eco mode, 3D projection ready, firmware update (RS-232C), auto power off, high altitude mode, tilt adjustment feet

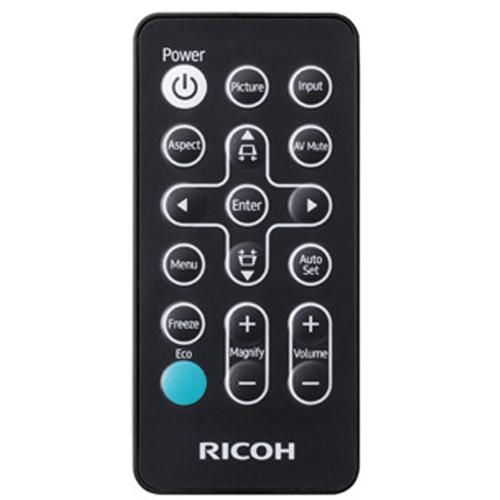

In the Box Ricoh 3200-Lumen WXGA Short Throw DLP Projector RGB Cable Power Cord Lens Cap Remote Control and Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh 3200-Lumen WXGA Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

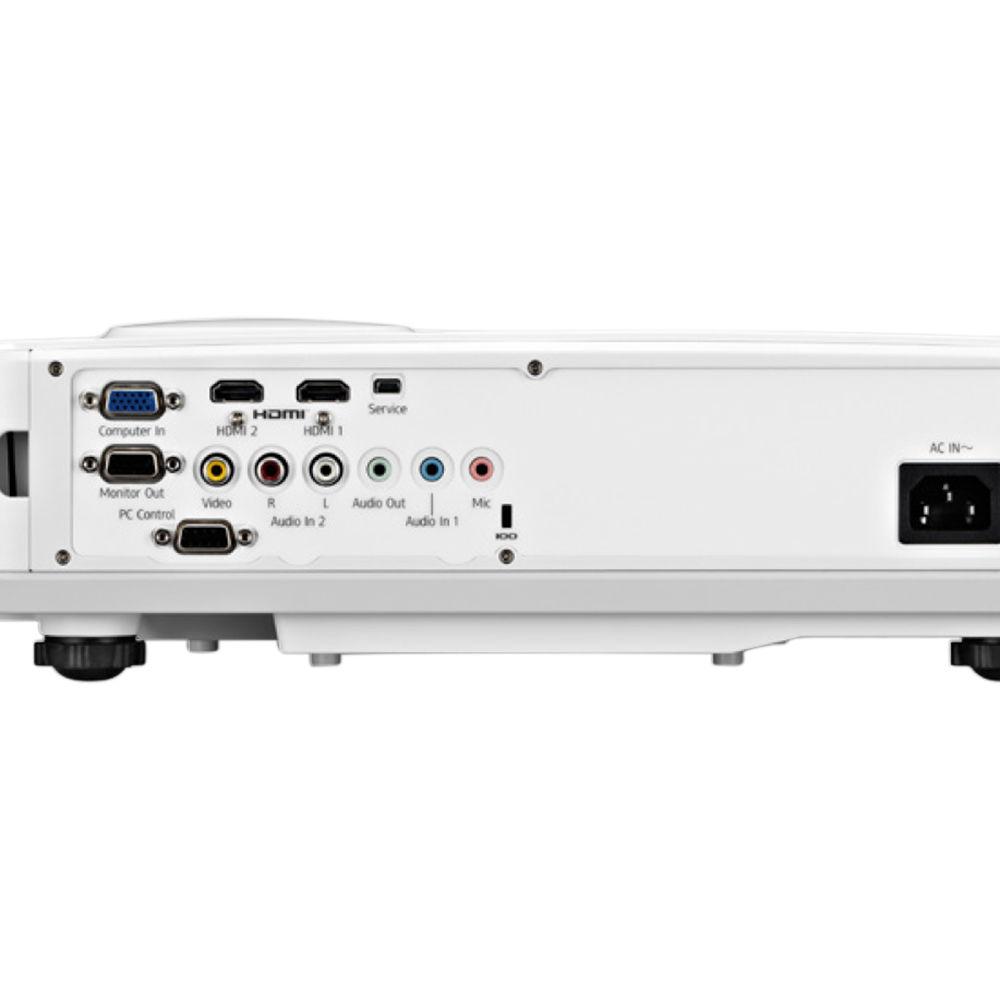

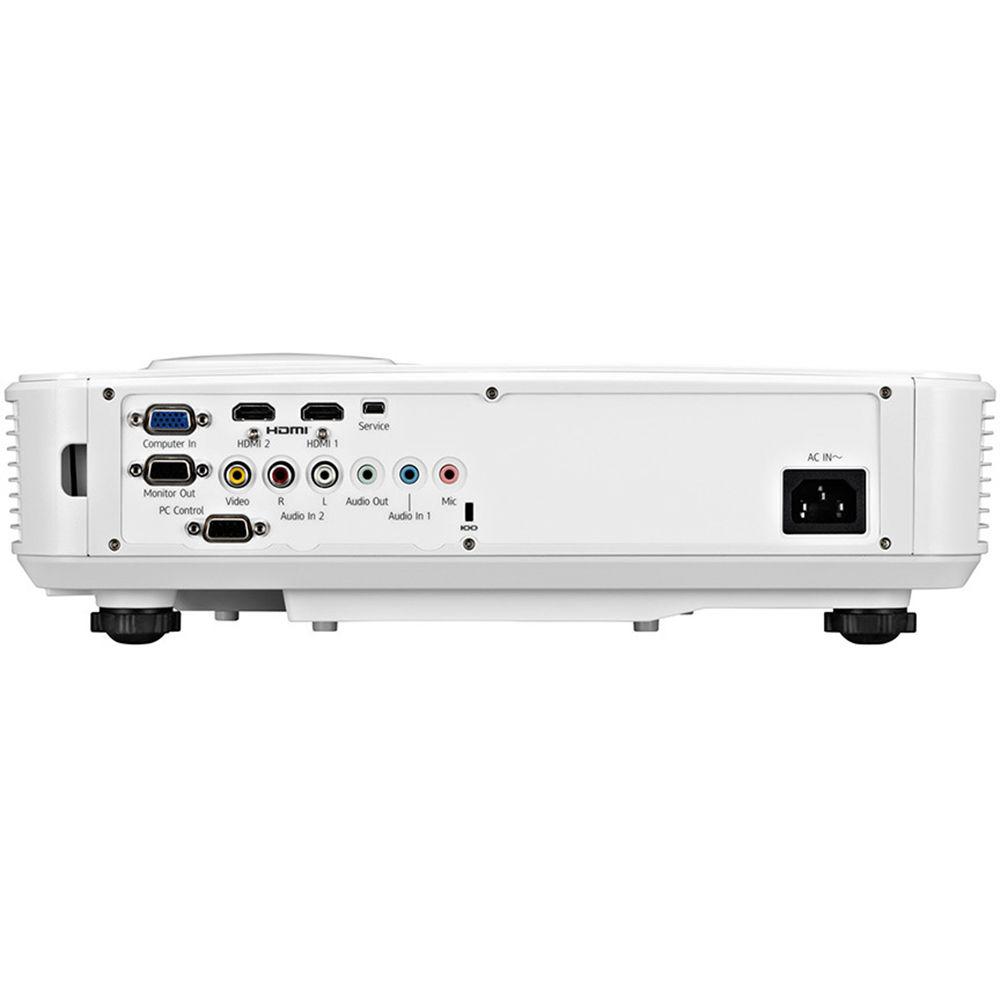

Technical parametersRicoh PJ WXL4540 Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 3200 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 13000:1 | | DLP Link 3D | Yes | | | | Focus | Manual | | Projection Size | 69.4 - 100" / 176.28 - 254.00 cm | | | | Keystone Correction | Vertical: ± 10° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 2 x HDMI Video (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x RCA Stereo (L/R) Audio (Input) 1 x VGA
1 x Composite Input
1 x Microphone Input
1 x Audio Input/Output | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours
Low Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 36 dB
Low Brightness: 32 dB | | Power Consumption | Medium Brightness: 330 W
Low Brightness: 210 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 5 - 95%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 15.0 x 3.3 x 12.1" / 38.1 x 8.4 x 30.7 cm | | Weight | 12.2 lb / 5.5 kg |
