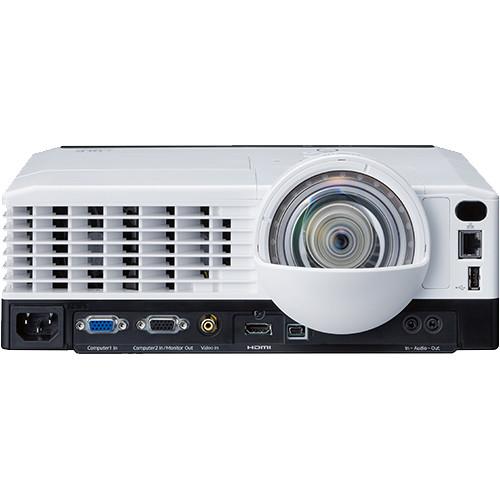

User Manual for Ricoh 3300-Lumen XGA Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the Ricoh 3300-Lumen XGA Short Throw DLP
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
 |
User manual for the Ricoh 3300-Lumen XGA Short Throw DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|

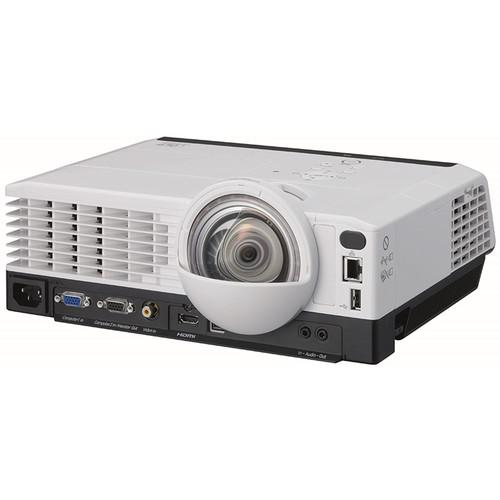

Product description The 3300-Lumen XGA Short Throw DLP Projector from Ricoh features an XGA resolution of 1024 x 768, a 13,000:1 contrast level, and long lamp life (up to 5000 hours in Eco mode). It allows you to project clear images, movies, training videos, and more in a classroom. It can be placed as close as 23" from the screen and can project precise images up to 400" diagonally. Intuitive controls, advanced connectivity, and a 360° viewing angle allow you to display critical information on the wall, ceiling, or floor of conference and training rooms. With the included carrying case, this projector can be carried easily for set-up in any location. - Display images, movies, and more with up to a 1024 x 768 (XGA) resolution
- Your presentation begins moments after you turn the projector on; when it's done, the device can shut down automatically without residual noise
- Use the presentation timer to keep your meeting on schedule

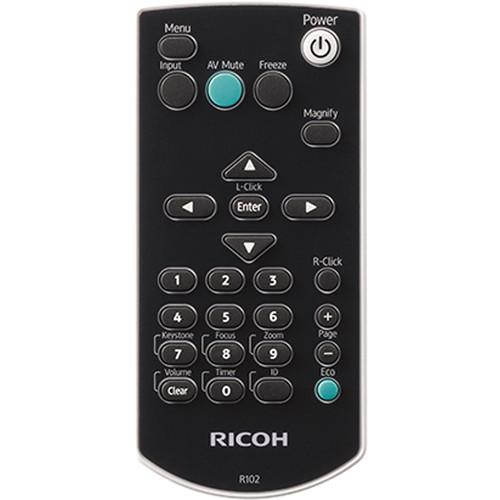

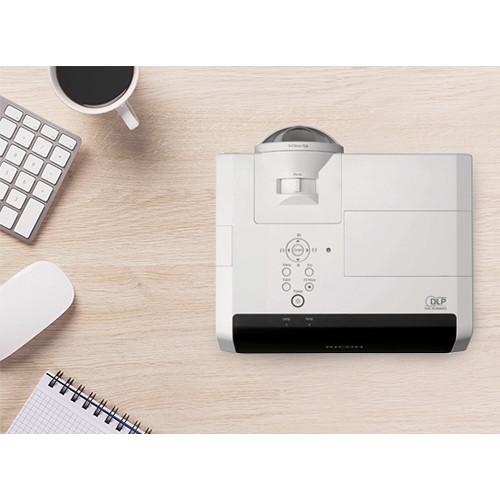

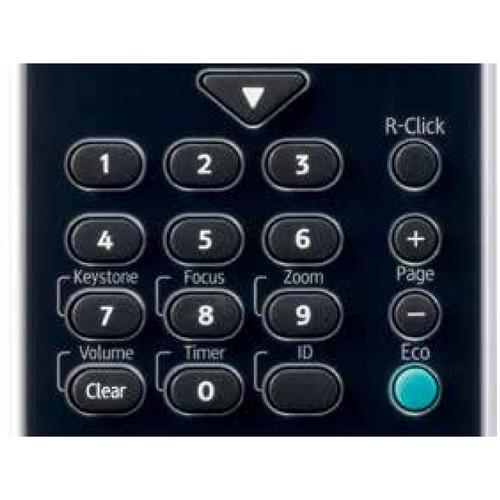

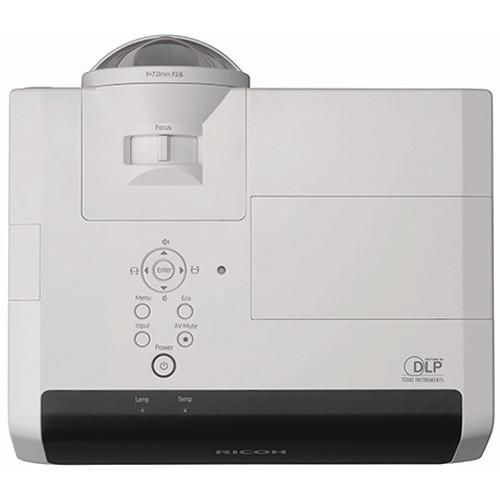

- Access all controls on the top of the device or use the convenient remote control to operate it manually without blocking the projection
- The projector balances itself and uses keystone auto correction to minimize vertical distortion
- Auto Brightness mode delivers hands-free brightness level adjustments to complement the level of ambient room lighting
- Adjust the colors of projected images to compensate for the color of the projection surface
- Connect it to DVD or Blu-ray players using the HDMI port for large-screen movies and training videos, even in MPEG4 or 3D formats
- Brightness rating of 3300 lumens and a 13,000:1 contrast ratio
- Because the projector features DLP technology, it requires less heat and energy to produce crisp, clear, and bright projections
- Settings can be controlled remotely via PJLink, so administrators can configure settings, check statuses, and even power the unit on or off remotely to simplify tasks for inexperienced presenters
- With Eco mode, power settings and lamp brightness can be preset to extend lamp life
- Supports AV muting (blanking), freezing, resizing (magnifying), auto keystone correction (vertical), digital zoom (80% to 100%), password protection, user logo, wall color mode, Eco mode, automatic brightness control, multi-screen projection (one PC to four projectors), carbon meter, color universal design, presentation timer, Blu-ray 3D projection-ready, timer set on/off, projector management, Crestron, AMX, and DLNA compatible, firmware update, PC-free presentation for JPEG/MPEG2/MPEG4 files via USB
In the Box Ricoh 3300-Lumen XGA Short Throw DLP Projector 9.8' RGB Cable 9.8' 3-Pin Power Cord Software CD-ROM Remote Control Limited 90-Day Warranty on Lamp Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh 3300-Lumen XGA Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh PJ X4241N Specs | | | Display System | 1-Chip 0.55" DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Max Brightness | 3300 Lumens | | Aspect Ratio | 4:3 | | Contrast Ratio | 13000:1 | | Scan | Horizontal: 15 to 100 kHz
Vertical: 23 to 85 Hz | | | | Focus | Manual | | Throw Distance | 24 - 169.6" / 60.96 - 430.784 cm | | Throw Ratio | 0.58:1 | | Projection Size | 50 - 400" / 127.00 - 1016.00 cm | | | | Keystone Correction | Auto | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x Mini DVI Video (Input)
1 x Mini DVI Video (Output)
1 x Component (3RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB 2.0 Type-A Female
1 x HDMI Audio/Video | | | | Lamp Power | 250 W | | Expected Lamp Life | Medium Brightness: 3500 Hours
Low Brightness: 5000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 32 dB | | Security | Password Protection | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Norwegian
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | Power Consumption | Medium Brightness: <316 W
Low Brightness: 209 W
Standby Mode (Lamp Off): 0.3 W
Standby Mode (Lamp Off): <1.4 W | | Temperature | Operating
41 to 95°F (5 to 35°C)
Humidity: 30 - 70% | | Dimensions (W x H x D) | 11.6 x 9.2 x 3.9" / 29.5 x 23.4 x 9.9 cm | | Weight | 6.8 lb / 3.1 kg approximately |
