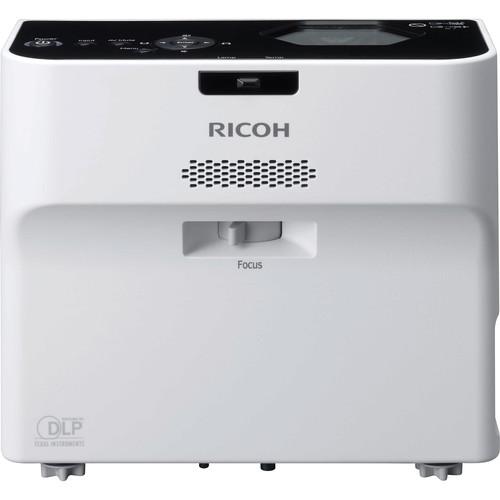

User Manual for Ricoh 3500-Lumen WXGA DLP Projector with Interactive Software Click to enlarge the picture
Contents of the user manual for the Ricoh 3500-Lumen WXGA DLP Projector with
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
|
User manual for the Ricoh 3500-Lumen WXGA DLP Projector with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|
Product description The 3500-Lumen WXGA DLP Projector from Ricoh offers 3500 lumen brightness, a high contrast ratio of 13000:1, and a 16:10 aspect ratio. It delivers presentations, videos, images, and more at up to 80” diagonally without shadows, glare, or other distortions. It features a 1280 x 800 WXGA resolution and 360° projection to project downward onto floors or tables, sideways, or onto smoked glass surfaces. You can even use it to transform static presentations on conventional screens into interactive collaborations to enhance your message in real time.
With this projector, you can use a wireless digital pen with tracking functions and automatic calibration to turn your projection into an interactive whiteboard. You can add clearly legible annotations and feedback or highlight specific details on images and schematics with incredible ease and accuracy. Easily share your presentation with multiple audiences in multiple locations to encourage collaboration in classrooms, boardrooms and other locations. Up to 20 Ricoh Interactive Whiteboards and/or Interactive Projectors can be connected to display your presentation in real time. You can even use a Ricoh Unified Communication System to project images of the audience in each location to simplify interaction between participants.
The projector shares brighter images with sharper contrasts between light and dark colors even when presenting in conference rooms with excessive ambient lighting or in sunlit atriums, cafeterias, classrooms and more. It offers a handheld remote control to access key features and menus at any time during your presentation. With Ricoh’s web image monitor and embedded utility software you can control administrative tasks remotely. You can even program the device to power on or off automatically, and can use intuitive controls to fine-tune images whether you are sharing blueprints, 3D movies, images, or even lesson plans.
The projector can also detect keystone distortion and balance images automatically. It can even adjust for the color of the presentation surface by manipulating the colors on screen. It is compatible with networked Macs and PCs, as well as Windows and Android smartphones and tablets, and includes a carrying case for easy mobility General - 16:10 aspect ratio (widescreen) with DLP (Digital Light Processing) technology
- 1280 x 800 WXGA resolution
- Projects up to 80" diagonally
- Portable design with wired or wireless connectivity
- 360° projection to project downward onto floors or tables, sideways, or onto smoked glass surfaces
- Wireless digital pen with tracking functions and automatic calibration
- Up to 20 RICOH Interactive Whiteboards and/or Interactive Projectors can be connected to display your presentation in real time
- Works with networked Macs and PCs, as well as Windows and Android smartphones and tablets
- When using with Miracast, you can share images, photos, videos, and more wirelessly, in real time, from your personal Microsoft or Android device without cables or network connections
- Includes a handheld remote control to access key features and menus at any time during your presentation
- Web Image Monitor and embedded utility software to control administrative tasks remotely
- Intuitive controls to fine-tune images
- Detects keystone distortion and balance images automatically
Primary Features - Simultaneous with wired and wireless LAN, Miracast, AV mute (blank), freeze, re-size (magnify), auto keystone correction, auto brightness, password protection, wall color mode, key lock, kensington lock, user logo, eco mode, carbon meter, closed captioning, color universal design, presentation timer, power timer, sound mode (standard/narration/music), simple DICOM
Connectivity Features - Ad Hoc and infrastructure wireless modes, network projection, multi-screen projection (1 PC to 4 Projectors), 4-in-1 projection, projector management, PJLink, slide show mode, Pentax-Ricoh digital camera projection (USB), Ricoh web image monitor, Crestron RoomView compliant, AMX NetLinx compliant, Bluetooth image projection with DLNA Server, Wi-Fi, UpnP, remote whiteboard sharing, Ricoh smart presenter (with ad hoc connection) for remote iPad Users, Ricoh smart device connector, PC free presentation (JPEG/MPEG2 via USB port)
Supported OS - Network Utility
- Windows Vista SP2 or later 32/64-bit (Ultimate/Business/HomePremium/HomeBasic); Windows 7 SP1 32/64-bit (Ultimate/Enterprise/Professional/HomePremium); Windows 8 and 8.1 Pro/Enterprise 32/64-bit; Windows10; Mac OS X 10.8-10.10
- JPEG Conversion Tool
- Windows Vista SP2 or later 32/64-bit (Ultimate/Business/HomePremium/HomeBasic); Windows 7 SP1 32/64-bit (Ultimate/Enterprise/Professional/Home Premium); Windows 8 and 8.1 Pro/Enterprise 32/64-bit; Windows 10
- Projector Management Utility
- Windows Vista SP2 or later 32/62-bit (Ultimate/Business/HomePremium/HomeBasic); Windows 7 SP1 32/64-bit (Ultimate/Enterprise/Professional HomePremium); Windows Server 2008 SP2 32/64-bit; Windows Server 2008R2 SP1 64-bit (standard edition); Windows 8 and 8.1 Pro/Enterprise 32/64-bit; Windows 10
- Interactive Drawing Software
- Windows 7 SP1 32/64-bit (Ultimate/Enterprise/Professional/HomePremium); Windows 8 and 8.1 Pro/Enterprise 32/64-bit; Windows 10
In the Box Ricoh 3500-Lumen WXGA DLP Projector with Interactive Software 10' RGB Cable 10' 3-Pin Power Cord CD-ROM for Projector Management Utility, JPEG Conversion Tool, Network Utility, and Drawing Software Carrying Case Remote Control with Battery Interactive Kit (Digital Pen, Module for PC, Chargeable Battery, USB Cable (for Power Charge), Interactive Software, Remote License) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh 3500-Lumen WXGA DLP Projector with Interactive Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh WX4152NI Specs | | | Display System | 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 3500 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 13000:1 | | DLP Link 3D | Yes | | | | Focus | Manual | | Projection Size | 48 - 80" / 121.92 - 203.20 cm | | | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input/Output)
1 x RS-232C (Unspecified Connector) Control/Service (Output)
1 x HDMI Video (Input)
1 x USB 2.0 Video (Input)
1 x Ethernet (RJ45) LAN (Input) | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Expected Lamp Life | Medium Brightness: 3500 Hours
Low Brightness: 5000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 32 dB | | Supported Languages | Arabic
Dutch
English
French
German
Indonesian
Italian
Japanese
Norwegian
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | Power Consumption | Medium Brightness: <313 W
Low Brightness: <208 W
Standby Mode (Lamp Off): <0.3 W
Standby Mode (Lamp Off): <1.4 W
Standby Mode (Lamp Off): <1.8 W | | Temperature | 41 to 95°F (5 to 35°C)
Humidity: 30 - 70% | | Dimensions (W x H x D) | 10.1 x 8.7 x 5.7" / 25.7 x 22.1 x 14.5 cm | | Weight | 6.6 lb / 3.0 kg |
