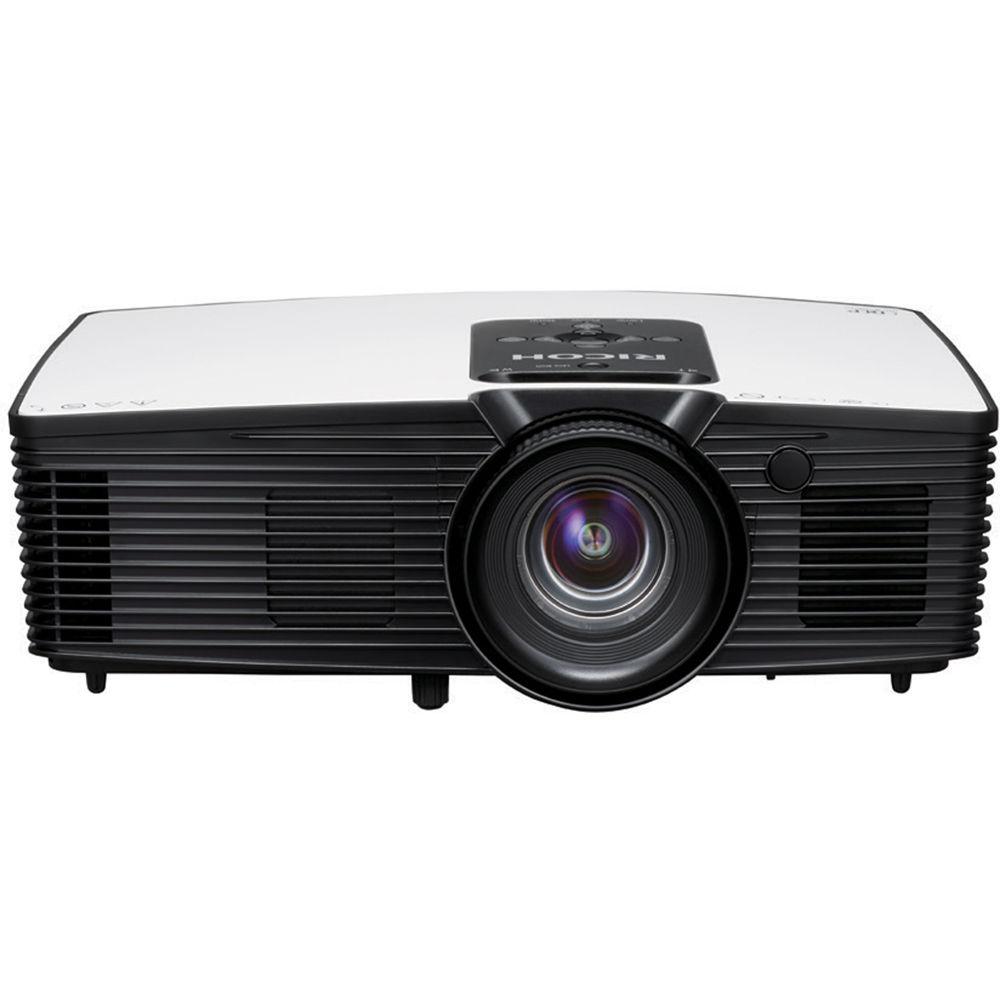

Product description The 3800-Lumen 1080p Standard DLP Projector from Ricoh features a resolution of 1920 x 1080, a 2000:1 contrast level, and long lamp life (up to 6000 hours in Eco mode). The remote control makes operation easy, and the wide choice of interface connections, including HDMI, allows input from a range of devices for maximum flexibility. With the included carrying case, this projector can be carried easily for set-up in any location. It features an RS-232C port for PC control. - Display images, videos, and more with up to a 1920 x 1080 resolution
- Up to 3800 lumens to project bright images so you can see every detail
- MHL (Mobile High-Definition Link) lets you project images and documents stored on your smartphone, tablet, or other personal devices
- With eco mode, you can reduce the amount of energy your projector uses during presentations, helping to extend your lamp-life to up to 6000 hours
- Input Signals: NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43, 60 Hz, 50 Hz
- AV mute (blank), freeze, re-size (magnify), keystone, wall color mode, Kensington lock, eco mode, 3D projection ready
- Supported Utilities: PJ Link, Crestron, AMX Discovery
- Supported OS: JPEG conversion utility , Projector management utility

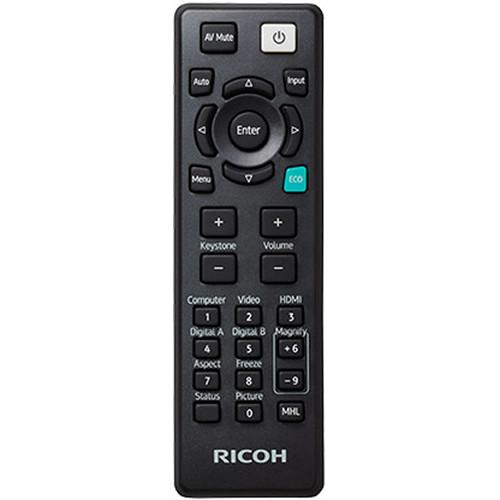

In the Box Ricoh 3800-Lumen 1080p Standard DLP Projector RGB Cable Power Cord Remote Control and Batteries Carrying Bag Limited 90-Day Warranty on Lamp Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh 3800-Lumen 1080p Standard DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

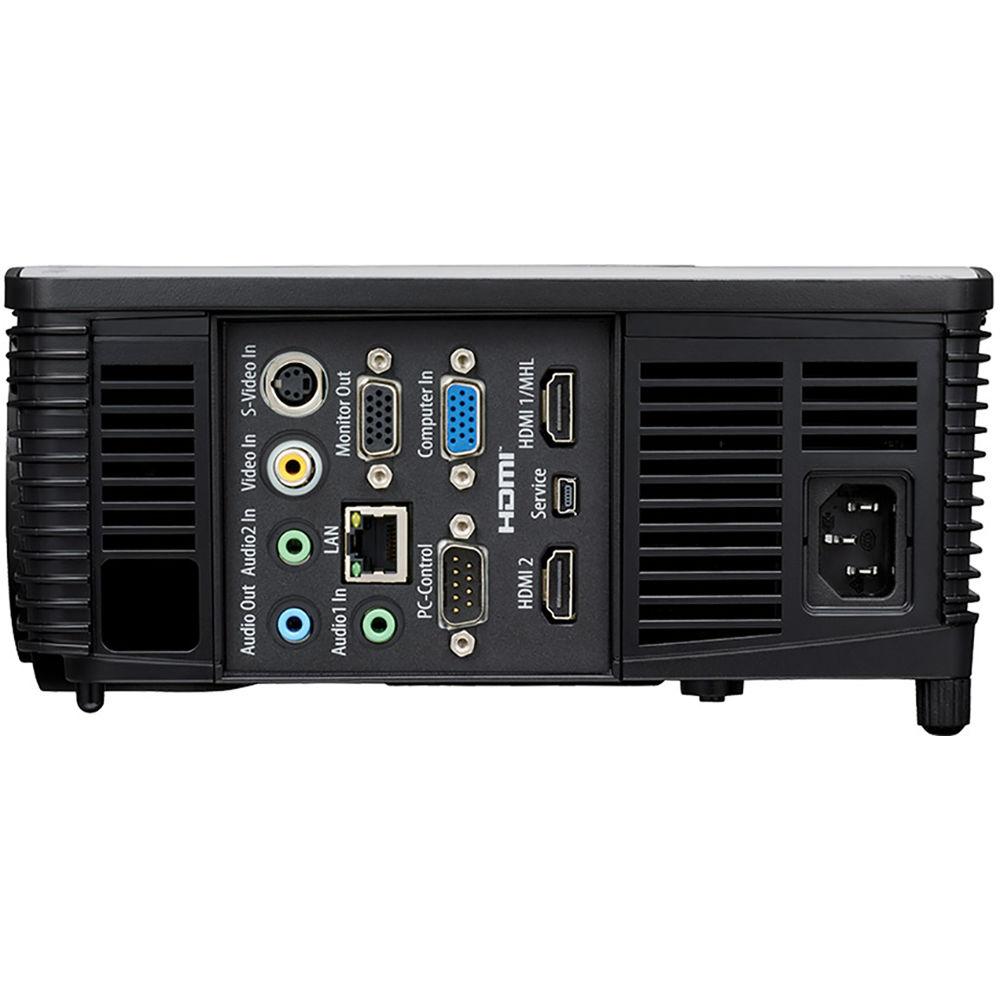

Technical parametersRicoh HD5451 Specs | | | Display System | 0.65" DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Max Brightness | 3800 Lumens | | Aspect Ratio | 16:9 | | Contrast Ratio | 2000:1 High Contrast Mode: 8000:1 | | DLP Link 3D | Yes | | | | Focus | Manual | | Throw Distance | 4.3 - 23.6' / 1.311 - 7.193 m | | Throw Ratio | 1.06 - 1.45:1 | | Projection Size | 40 - 300" / 101.60 - 762.00 cm | | | | Digital Zoom | 1.36x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDMI Video (Input)
1 x HDMI with MHL Support Video (Input)
1 x S-Video (4-Pin DIN) Video
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN
1 x RS-232C (Unspecified Connector) Control/Service Video Input: 1 x VGA, 1 x Composite
Video Output: 1 x VGA Mini USB: 1 x Type B (Service/Control Interfaces) | | | | Lamp Power | None | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 6000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 31 dB | | Security | Password Protection | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 352 W
Low Brightness: <280 W | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Storage Humidity | 20 - 80% | | Dimensions (W x H x D) | 12.4 x 4.0 x 8.8" / 31.5 x 10.2 x 22.4 cm | | Weight | 7.1 lb / 3.2 kg |
