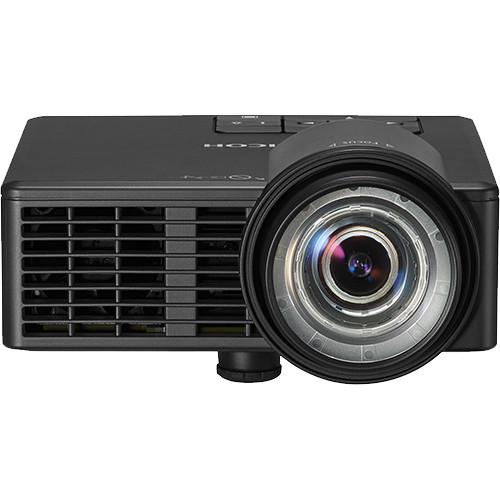

User Manual for Ricoh 600-Lumen Portable WXGA Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the Ricoh 600-Lumen Portable WXGA Short Throw
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
 |
User manual for the Ricoh 600-Lumen Portable WXGA Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|

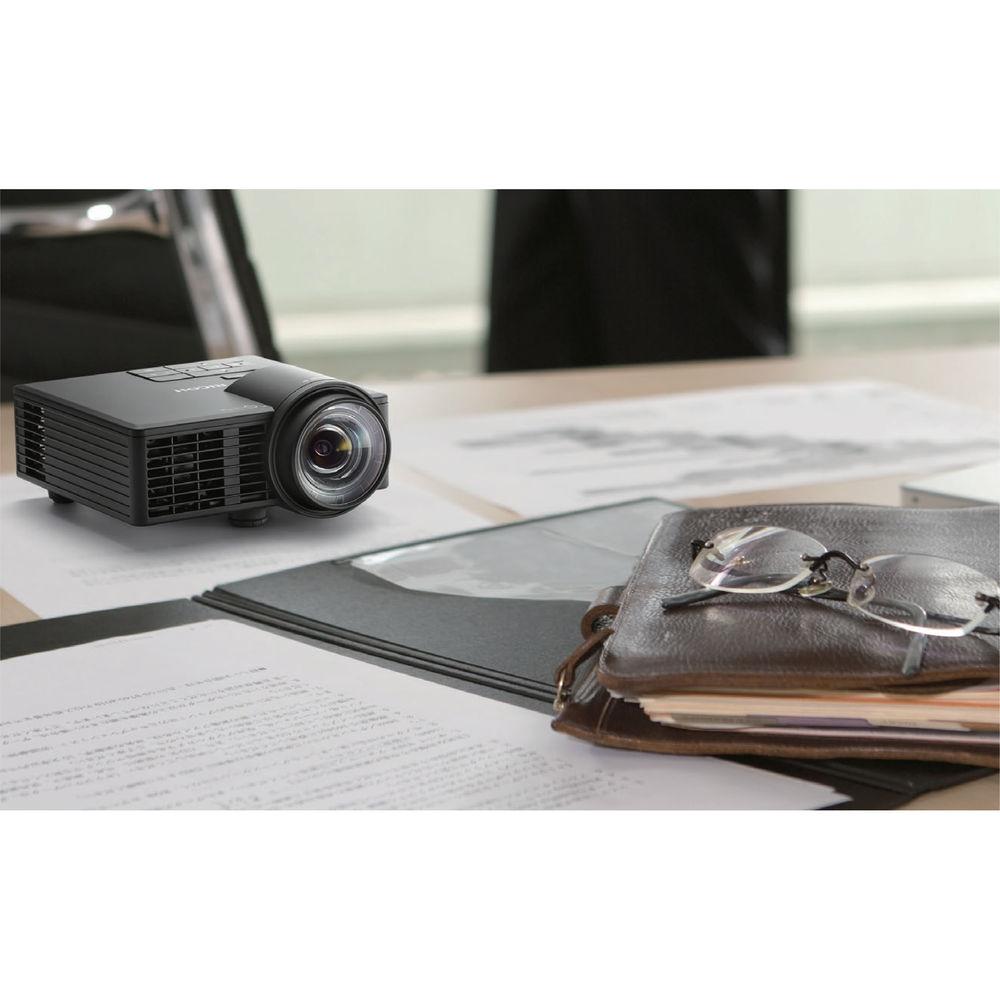

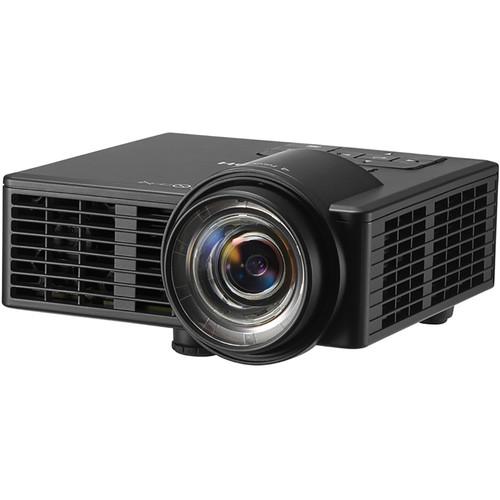

Product description The 600-Lumen Portable WXGA Short Throw DLP Projector from Ricoh displays bright presentations, movies, graphics, and videos with LED technology. The LED technology lasts up to 20,000 hours in bright mode and 30,000 hours in eco mode, further increasing the life of the LED light source. The projector comes with a built-in 1.5W speaker so everyone can hear, as well as see, the projected image. It offers clear and crisp image quality at 600 lumen, a 600:1 contrast ratio (40:000:1 in high contrast mode), keystone correction. It can be plugged into a desktop computer, from embedded memory on the projector, or even directly from your mobile device using MHL input interface. - Clear and crisp image quality at 600 lumen and 600:1 contrast ratio (40:000:1 in high contrast mode)
- LED technology lasts up to 20,000 hours in bright mode and 30,000 hours in eco mode
- Portable for business travel, consultants, on-premises training, or even design discussions where teams need space to review drawings and other design materials
- Easily fits into small spaces not typically conducive to presentations like smaller offices and classrooms at private schools
- Can even be used as a small digital signage system in a retail store or a rental device at events and hotels for continuous playback of movies and images
- With a short throw ratio of 0.8, this projector can display at close range of just 17" with an impressive 25" diagonal screen. Or, it can project a 200" screen from a distance of more than 11'
- You can project Microsoft Office and Adobe PDF files using the media player integrated into the projector. Simply save these files to a microSD card, USB drive, or the projector's built-in memory that stores up to 2.8GB of data, to give PC-free presentations quickly and easily
- With the PJ WXC1110 projector, you can present images, videos and other files directly from your enabled iOS, Android or Windows mobile device with HDMI/MHL connectivity
- Other features include AV mute (blank), re-size (magnify), auto keystone, password protection, wall color mode, Kensington lock, user logo, eco mode, 3D projection ready (DLP Link only), firmware update
In the Box Ricoh 600-Lumen Portable WXGA Short Throw DLP Projector RGB Cable AC Adapter Power Cord Carrying Bag Lens Cap Remote Control and Coin Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh 600-Lumen Portable WXGA Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

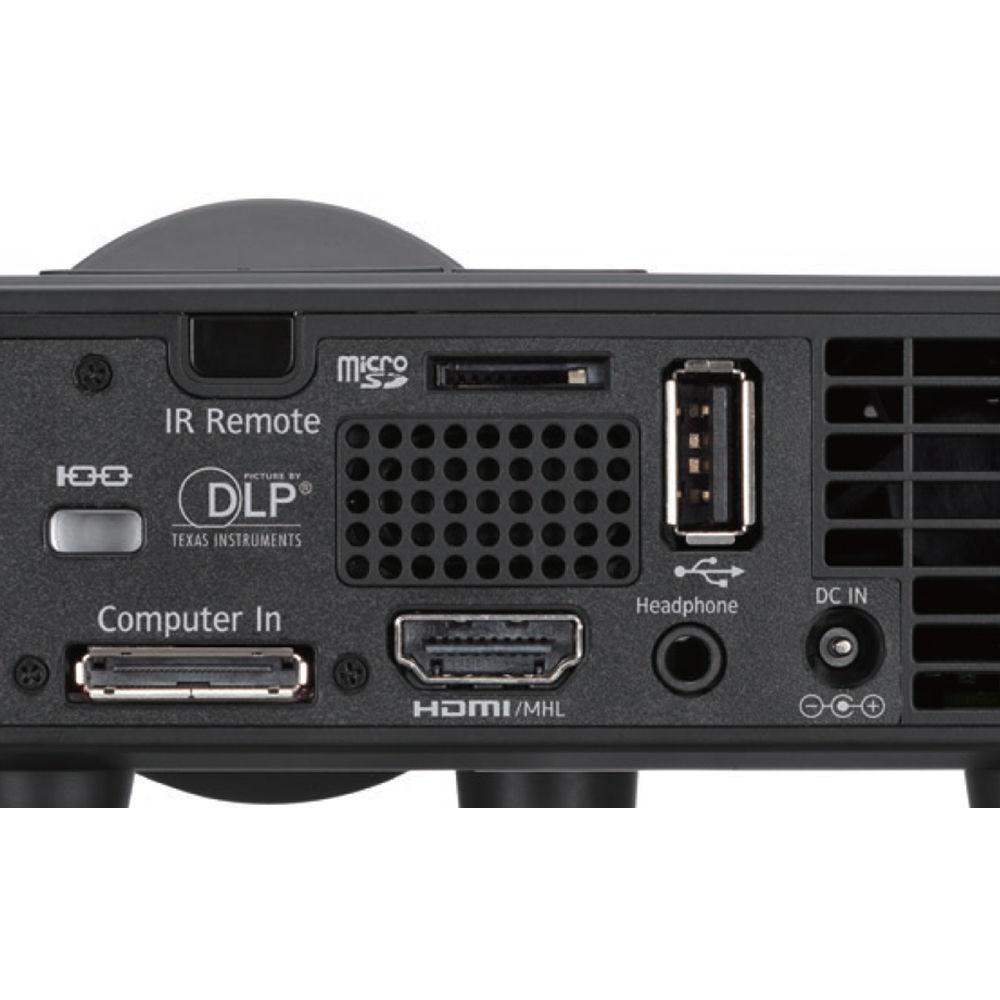

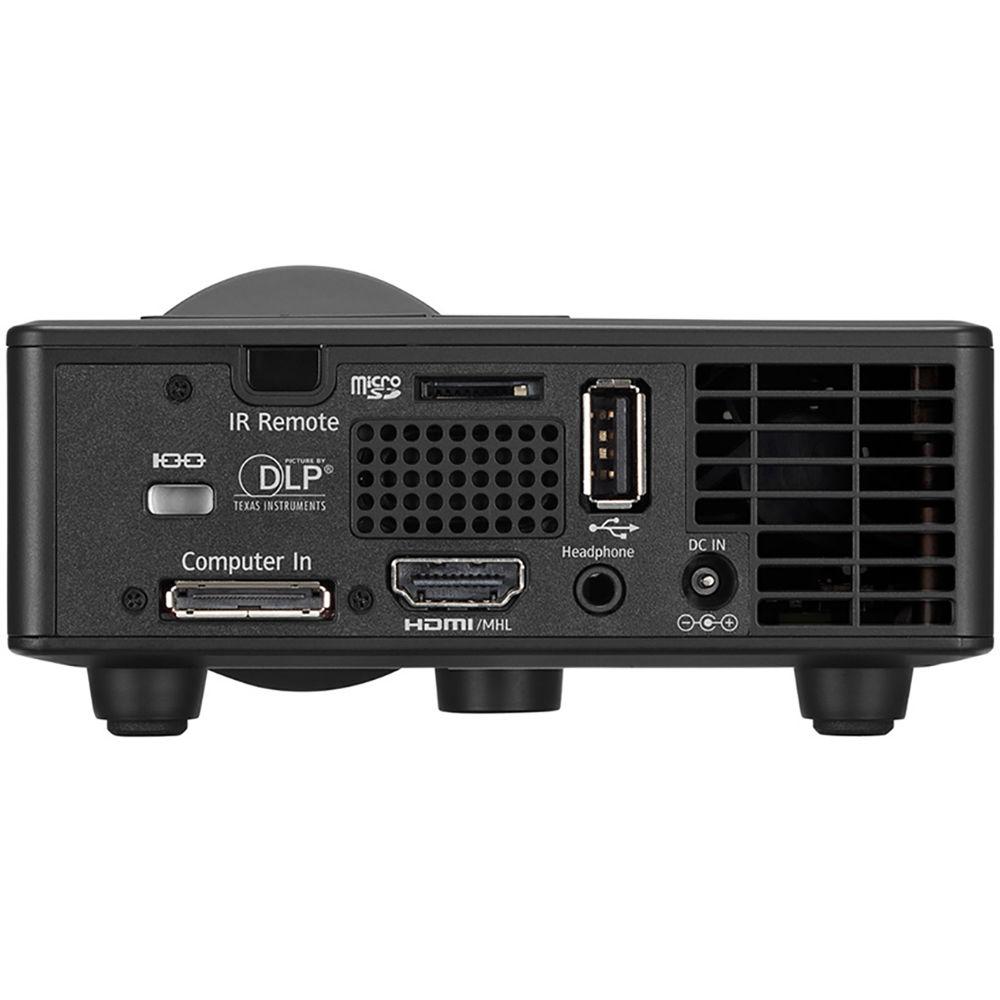

Technical parametersRicoh PJ WXC1110 Specs | | | Display System | 1-Chip 0.45" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 600 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 600:1 High-Contrast Mode: 40,000:1 | | DLP Link 3D | Yes | | | | Focus | Manual | | Projection Size | 50 - 100" / 127.00 - 254.00 cm 25 to 200" / 63 to 508 cm mechanical | | | | Keystone Correction | Vertical: ± 40° | | | | Inputs/Outputs | 1 x HDMI with MHL Support Video (Input)
1 x USB Type-A Male (Input)
1 x VGA (DE-15) Video (Input) | | Inputs/Outputs | 1 x 1/8" (3.5 mm) Mini Audio Output | | Memory Card Slot | 1 x microSD (Unspecified Type) | | Internal Storage | 2.8GB | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours
Low Brightness: 30,000 Hours | | Fan Noise | Medium Brightness: 34 dB
Low Brightness: 24 dB | | Power Consumption | Full Brightness: 65 W
Low Brightness: 18 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 4.4 x 2.0 x 4.1" / 11.2 x 5.1 x 10.4 cm | | Weight | 1.0 lb / .5 kg |
