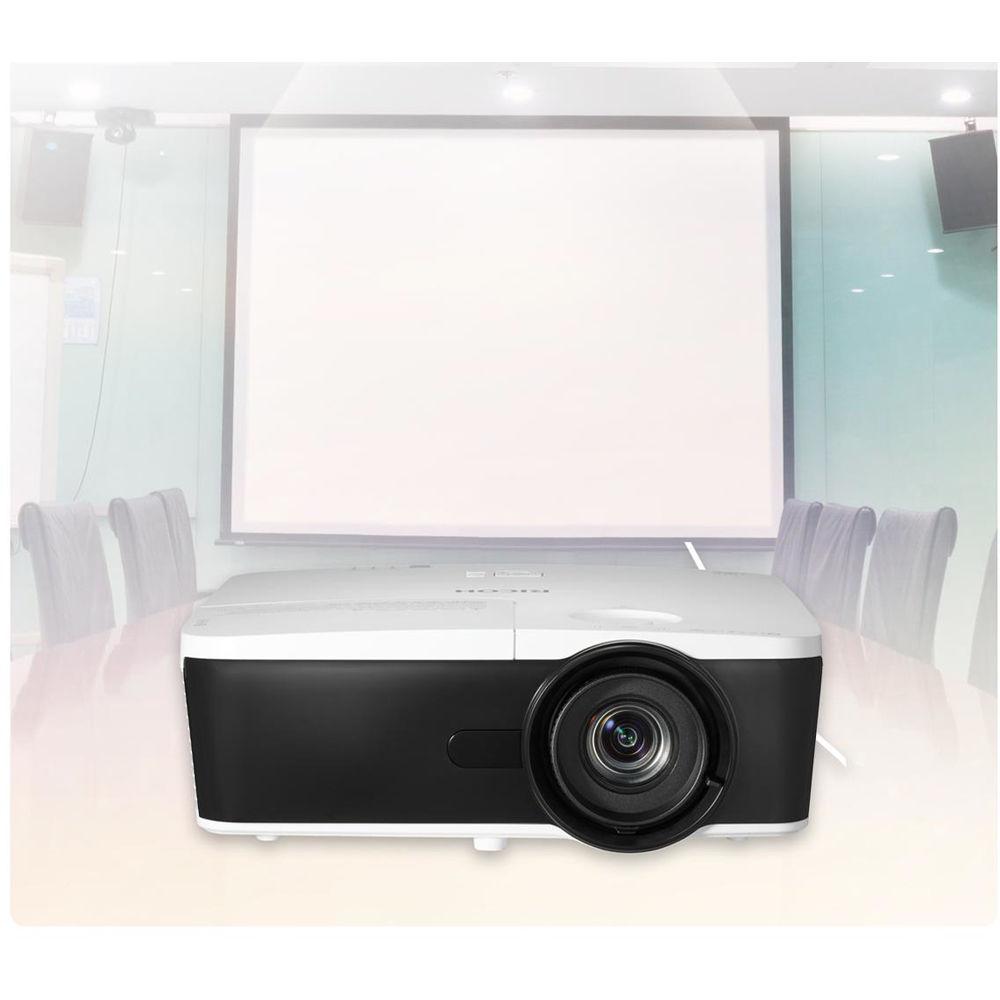

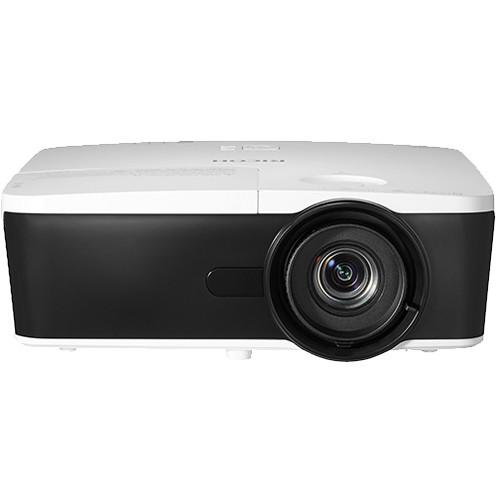

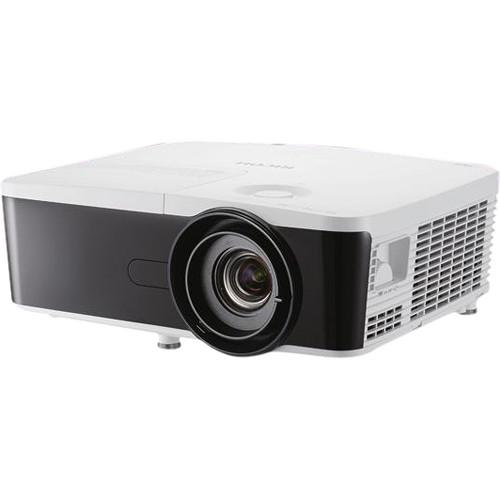

Product description The 6000-Lumen XGA DLP Projector from Ricoh can be used for presentations in mid-size conference rooms, training centers, classrooms, auditoriums, exhibition halls and more. You can showcase action-packed movies, clear images with detailed schematics and more with 1024 x 768 (XGA) image resolution, and a 4:3 aspect ratio. The projector balances itself to reduce distortion, and also allows you to make your own adjustments to trapezoidal distortion using a four-point correction function. - You can showcase action-packed movies, clear images with detailed schematics, and more in 4:3 aspect ratio as large as 300" diagonally at up to 1024 x 768 dpi (XGA) and 9000:1 contrast ratio
- You can use one of the many HDMI connection ports on the projector to plug in almost any camera, DVD player, computer, or other media device
- Comes equipped with two built-in 10W speakers
- With on-screen prompts and one-touch remote controls, you can give your presentation with ease, without unnecessary distractions or delays
- Administrators can use optional management software including PJLink, and Crestron RoomView to check statuses, adjust settings, and even power the unit on or off from a remote location.
- Runs quietly while using less energy in eco mode
- Starts up and shuts down quickly without residual noise that can interfere with your discussions
In the Box Ricoh 6000-Lumen XGA DLP Projector 365W High-Pressure Mercury Lamp RGB Cable VGA Cable Power Cable Remote with Batteries Filter Lens Cap CD-ROM Limited 90-Day Warranty on Lamp Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh 6000-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh PJ X5580 Specs | | | Display System | 1-Chip 0.70" DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Max Brightness | 6000 Lumens | | Aspect Ratio | 4:3 | | Contrast Ratio | 9000:1 | | Scan | Horizontal: 30 to 100 Hz

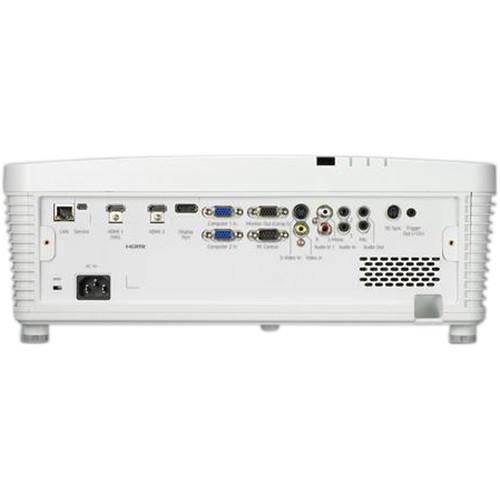

Vertical: 50 to 85 Hz | | | | Focus | Manual | | Throw Distance | 3.28 - 44.2' / 1 - 13.472 m | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Auto | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x HDMI with MHL Support Audio/Video (Input)
1 x HDMI Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x DisplayPort Audio/Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Component (3RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
2 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x Mini-USB Type-B Female
1 x Unspecified Signal (DE-9) Control 1 x Mini DIN 3-pin (for 3D sync)
1 x 3.5 mm mini jack (for 12V triggers) | | | | Lamp Power | 365 W
292 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 4000 Hours | | Fan Noise | Medium Brightness: 35 dB
Low Brightness: 32 dB | | Security | Cable Lock Slot
Password Protection | | Power Consumption | Medium Brightness: <450 W
Low Brightness: 360 W
Standby Mode (Lamp Off): <0.5 W Standard Mode: 495 W maximum
Eco Mode: 395 W maximum
Standby Network Off: < 1.0 W (Monitor Out On) | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 16.7 x 14.0 x 5.9" / 42.4 x 35.6 x 15.0 cm | | Weight | 13.97 lb / 6.34 kg approximately |
