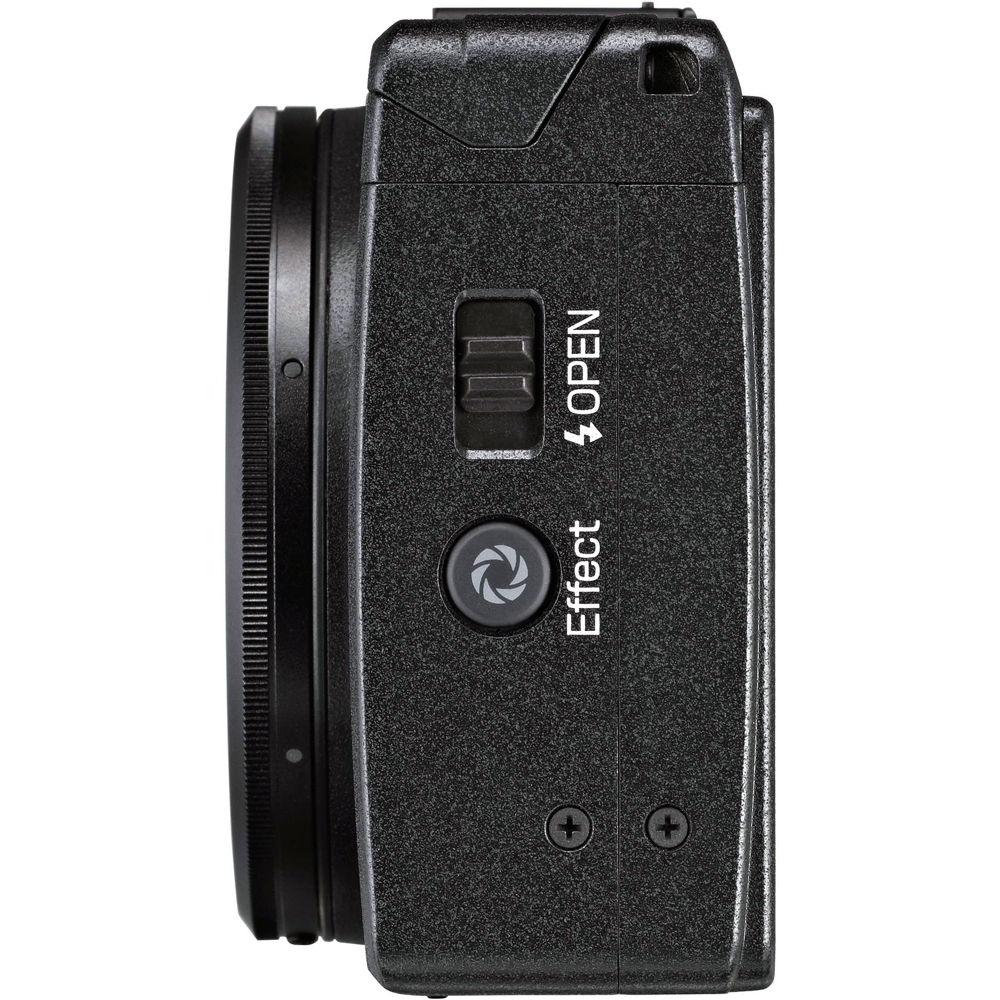

User Manual for Ricoh GR II Digital Camera Click to enlarge the picture
Contents of the user manual for the Ricoh GR II Digital Camera
- Product category: Point & Shoot Cameras Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Point & Shoot Cameras
 |
User manual for the Ricoh GR II Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|

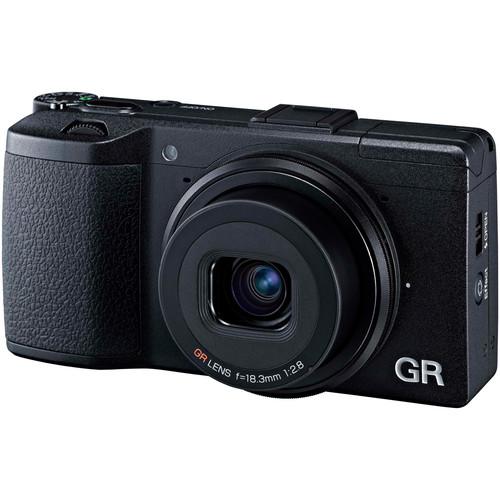

Product description Eight Recommended Digital Cameras for Street Photography Read More The first GR-series camera to feature built-in Wi-Fi and NFC connectivity, the GR II Digital Camera from Ricoh continues the legacy of its predecessor with a large 16.2MP APS-C CMOS sensor, providing high-resolution images with low noise at up to ISO 25600. By omitting the optical low-pass filter, this sensor is able to squeeze out sharper images with rich colors and when combined with the GR ENGINE V it operates quickly and efficiently in creating images. On top of this is a Ricoh GR 18.3mm f/2.8 lens, equivalent to 28mm in 35mm terms, which will assist in creating sharp images in all lighting conditions.
Benefitting from the GR ENGINE V is the High-Speed AF system, locking focus in just 0.2 seconds. The camera will also start up in just 1 second and offers continuous shooting at 4 fps. Full HD 1080p video recording is possible at up to 30 fps with autofocus. And, it has wireless flash control with the built-in flash unit which allows users to remotely operate their AF360FGZII and AF540FGZII flashes as slave units.
The GR is designed to be compact with a portable magnesium alloy body. It maintains a classic GR styling with a solid handgrip for comfort and physical control buttons for natural operation. This includes a dedicated AF button and aperture preview button. The camera can also capture in either JPEG or DNG RAW images for full control over post-processing. - 16.2MP APS-C CMOS Sensor with No Optical Low-Pass Filter
- Using a large APS-C CMOS sensor, the GR II is able to capture high-resolution 16.2MP images and video with low noise and excellent color accuracy. Further, this sensor omits the optical low-pass filter for achieving the highest possible sharpness and resolution in your imagery.
- GR ENGINE V Image Processor
- The advanced GR ENGINE V imaging engine offers high-sensitivity shooting with minimal noise and fast response times, including fast autofocus and up to 4 fps continuous shooting. This also benefits the AF system with the ability to lock on in as fast as 0.2 seconds. The camera will even start up in just 1 second.
- Portable Body Design
- The GR-series uses a magnesium alloy to stay lightweight and portable while its exterior design is optimized for compactness and comfort. Numerous physical controls are laid out in an intuitive manner to ensure users will be able to quickly access their settings at a moment's notice. It also offers dedicated AF and aperture preview buttons for DSLR-like handling.
- Full HD 1080p Video Recording
- Capture high resolution full HD 1080p video at up to 30 fps. It uses H.264 compression to realize the high definition images without taking up too much space on your cards and hard drives. AF also remains active during shooting for ensuring your subject remains sharp throughout the video.
- Wireless Flash Function
- Using the built-in flash, the GR II can wirelessly communicate with the AF360FGZII and AF540FGZII External Flashes. This allows users to quickly and easily set up a complete lighting solution without worrying about cables or additional triggers and receivers.
- DNG RAW and JPEG File Formats
- Take complete control of your images in post by using the DNG RAW format or create standard, easily accessible JPEGs with the GR II. The camera also offers in-body RAW development for computer-free editing of your files.
- Built-In Wi-Fi Connectivity with NFC
- A first for the GR-series, this camera offers built-in Wi-Fi connectivity with NFC, for quick tap-to-connect functionality. This allows it to wirelessly connect to smartphones and tablets for remote operation and transfer of images.
UPC: 026649758430 In the Box Ricoh GR II Digital Camera DB-65 Li-Ion Rechargeable Battery USB Cable AC-U1 USB Power Adapter Hand Strap Hot Shoe Cover Limited 1-Year Warranty Unveiled: Ricoh GR II Digital Camera John Harris 06/17/2015 User Manual PDF 8.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh GR II Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh 175843 Specs | | | Pixels | Actual: 16.9 Megapixel
Effective: 16.2 Megapixel | | Sensor | APS-C CMOS | | Bit Depth | 12-Bit | | File Formats | Still Images: DNG, JPEG
Movies: AVC/H.264
Audio: WAV | | Max Resolution | 16 MP: 4928 x 3264 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Image Stabilization | None | | Color Spaces | sRGB, Adobe RGB | | | | Lens | 7 Elements in 5 Groups
2 Aspherical
Effective Focal Length: 18.3mm (35 mm Equivalent: 28mm)
Aperture: f/2.8 (W) to f/16 | | Filter Thread | 49mm with optional GH-3 Hood & Adapter | | Zoom | None | | Focus Range | Normal: 11.76" to Infinity / 29.87 cm to Infinity
Macro: 3.9" to Infinity / 9.91 cm to Infinity | | | | ISO Sensitivity | Auto, 100 to 25600 | | Shutter | Type: Electronic & Mechanical
Speed: 1/4000 to 30 Seconds | | Exposure Metering | Center-Weighted, Multi, Spot | | Exposure Modes | Modes: Aperture Priority, Auto, Bulb, Manual, Movie, My Settings, Program, Shutter Priority, Shutter/Aperture Priority, Time
Metering Range: EV 1.8 to EV 17.8
Compensation: -4 EV to +4 EV (in 1/3 EV Steps) | | White Balance | Auto, CTE, Cloudy, Color Temperature, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Natural White), Fluorescent (Warm White), Incandescent, Incandescent 2, Manual, Multi-P AUTO, Outdoors, Shade | | Continuous Shooting | Up to 4 fps at 16.9 MP for up to 999 Exposures (JPEG Format)
Up to 4 fps at 16.9 MP for up to 10 Exposures (Raw Format) | | Interval Recording | Yes | | | | Flash Modes | Auto
Auto/Red-Eye Reduction
Flash On
Flash On w/ Red-Eye Reduction
Manual
Slow Sync
Slow Sync/Red-Eye Reduction
Wireless | | Built-In Flash | Yes | | Effective Flash Range | 3.3 to 9.8' / 1.0 to 3.0 m | | External Flash Connection | Hot Shoe | | | | Built-In Memory | 54 MB | | Memory Card Type | SD
SDHC
SDXC | | | | Video Recording | Yes | | Resolution | 1920 x 1080p: 30 fps, 25 fps, 24 fps
1280 x 720p: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
640 x 480p: 30 fps, 25 fps, 24 fps | | | | Video Clip Length | Up to 4 GB or 25 Minutes | | Audio Recording | Built-In Mic: With Video (Mono) | | | | Viewfinder Type | None | | Screen | 3.0" LCD (1,230,000 Pixels) | | Screen Coverage | 100% | | | | Connectivity | AV / USB Multi, HDMI D (Micro) | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) Built In | | GPS | No | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Waterproofing | None | | | | Battery | 1 x DB-65 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh | | AC Power Adapter | AC-5C AC Adapter (Not Included) | | | | Dimensions (W x H x D) | 4.6 x 2.5 x 1.4" / 11.7 x 6.3 x 3.6 cm | | Weight | 7.80 oz / 221 g without battery or memory card | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.0 x 5.5 x 3.8" |
