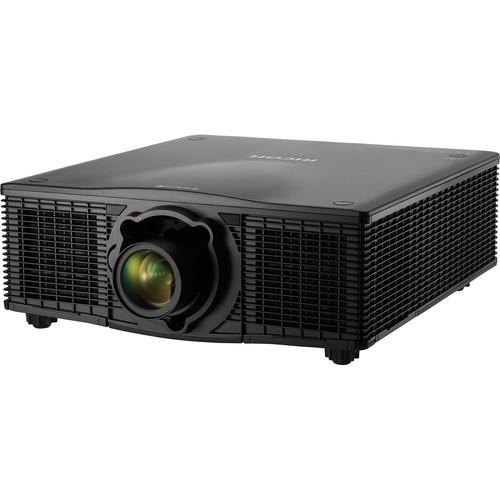

User Manual for Ricoh PJ KU12000 12000-Lumen 1920 x 1200 Dual-Lamp DLP Projector Click to enlarge the picture
Contents of the user manual for the Ricoh PJ KU12000 12000-Lumen 1920 x
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
|
User manual for the Ricoh PJ KU12000 12000-Lumen 1920 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|
Product description The PJ KU12000 12000-Lumen 1920 x 1200 Dual-Lamp DLP Projector from Ricoh is designed with a dual-lamp system and a brightness of 12,000 lumens, so you can project clearly even in spaces with excessive ambient lighting. The projector is useful in showcasing important presentations, videos, and lifelike projections in auditoriums, churches, conference centers, and other larger venues with crisp text and breathtaking colors. Choose from six interchangeable lenses (sold separately) to customize projections to fit the size of the room and the needs of your audience. Connect to diverse media with ultra-reliable HDBaseT connectivity. Take advantage of 360-degree tilting to project on ceilings, angled walls, and floors. Use automation to focus on getting your message across without distractions. This PJ KU12000 projector is sold without a lens. - Features
-
- High-definition, widescreen WUXGA
- Projection brightness up to 12,000 lumens
- Dual-lamp design
- HDBaseT connectivity
- 1920 x 1200 dpi resolution
- 5,000:1 contrast ratio
- HDMI, DVI-D, and VGA ports for better connectivity
- Features 360-degree tilt-free, portrait mode, Eco mode, blending, geometric correction, Picture-in-Picture (PiP), and Picture-Beside-Picture (PBP) functions
- Supports the following OS: Windows Server 2008/2008 (x64)/2008 R2 (64-bit); Windows 8.1/8.1 (x64); Windows 8/8 (x64); Windows 7/7 (x64); Windows Vista/Vista (x64)
- Crestron, PJLink, and AMX utilities supported
In the Box Ricoh PJ KU12000 12000-Lumen 1920 x 1200 Dual-Lamp DLP Projector (No Lens) VGA Cable DVI to HDMI Adapter Power Cord Remote Control and Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh PJ KU12000 12000-Lumen 1920 x 1200 Dual-Lamp DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh KU12000 Specs | | | Display System | 1-Chip 0.96" DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 12,000 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 5000:1 | | DLP Link 3D | Yes | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Keystone Correction | Vertical: ± 20°
Horizontal: ± 20° | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x DVI-D Video (Input)
1 x Unspecified Signal (DE-9) Video (Input)
1 x 5BNC Video (Input)
2 x Ethernet (RJ45) LAN
1 x 3G-SDI (BNC) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x Unspecified Signal (DE-9) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Type-A Female
1 x Mini-USB Type-A Female
1 x RS-232C (Unspecified Connector) Control | | | | Light Source | Lamp (2 x UHP) | | Lamp Power | 465 W | | Expected Lamp Life | Low Brightness: 2000 Hours
Medium Brightness: 1500 Hours | | Fan Noise | Low Brightness: 38 dB
Medium Brightness: 41 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 1150 W
Low Brightness: 920 W | | Temperature | Storage
14 to 140°F (-10 to 60°C)
Humidity: 5 - 90% | | Dimensions (W x H x D) | 20.5 x 7.6 x 23.3" / 52.1 x 19.3 x 59.2 cm | | Weight | 52.4 lb / 23.8 kg |
