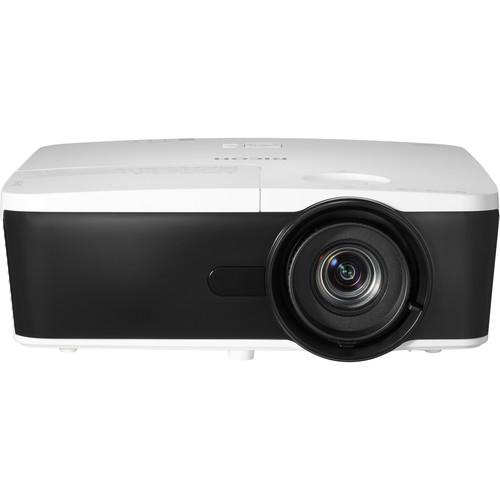

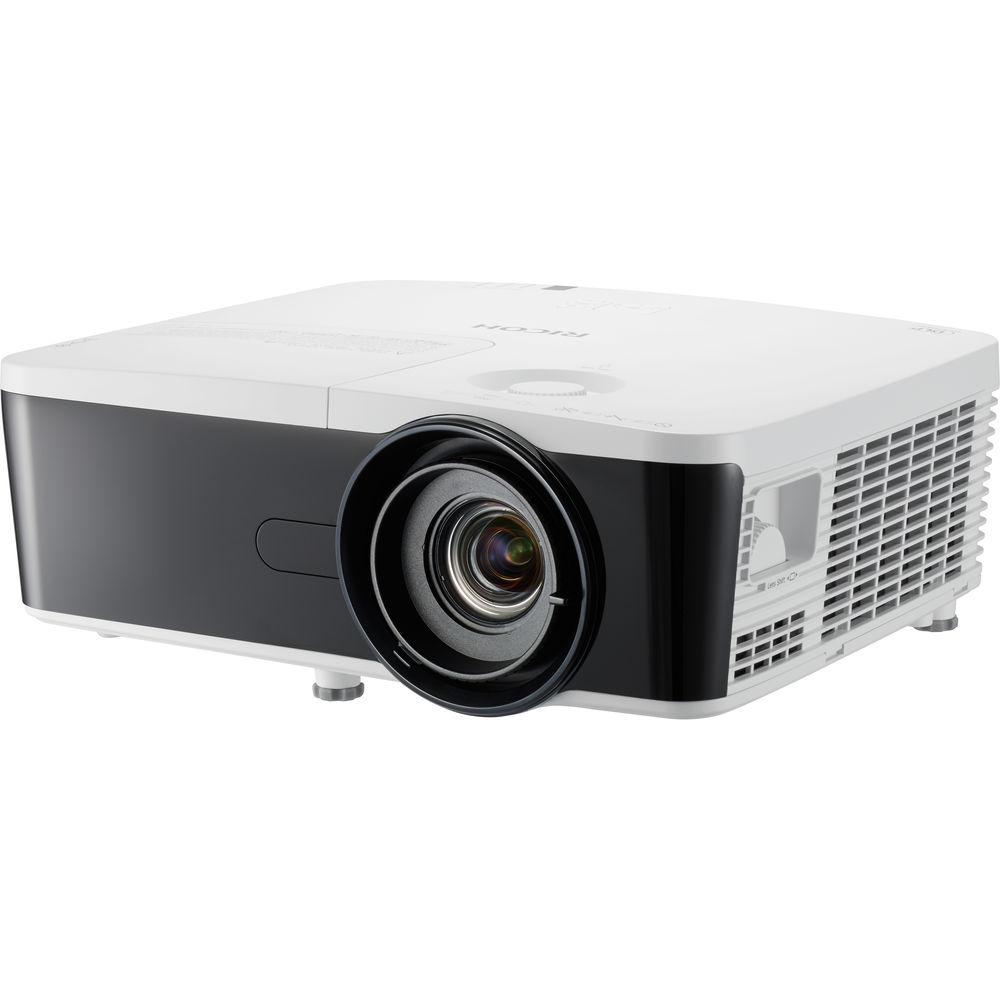

Product description The PJ WU5570 5500-Lumen WUXGA DLP Projector from Ricoh can be used for presentations in mid-size conference rooms, training centers, classrooms, auditoriums, exhibition halls and more. Whether you're in a windowless room, spacious auditorium, or a sun-drenched showroom, you can light up your presentation with up to 5500 lumens to produce clear images unaffected by ambient lighting. A contrast ratio of 9,000:1 delivers clear delineation between light and dark colors, so your text and graphics are crisp and clearly visible for your entire audience.With the PJ WU5570, you can showcase action-packed movies, brilliant images, detailed schematics, and more with 1920 x 1200 (WUXGA) image resolution and 16:10 aspect ratio. The projector balances itself to reduce distortion, or you can make your own adjustments to trapezoidal distortion using a four-point correction function. With the keystone correction image adjustment, you can project on non-traditional objects, such as columns and beams, without losing any of the sharpness or clarity from conventional screenings. - Easy-to-Use Controls
- Mount the PJ WU5570 so it's always ready to go when you are, without searching for cords or waiting for IT assistance. With on-screen prompts and one-touch remote controls, you can dive right into your presentation with ease, without unnecessary distractions or delays. Administrators can use optional management software, including PJLink and Crestron RoomView, to check status, adjust settings, and even power the unit on or off from a remote location so you can concentrate on your core tasks.
- Flexible Connectivity
- Use one of the many HDMI connection ports on the PJ WU5570 to plug in almost any camera, DVD player, computer, or other media device. The system also comes with built-in 10W speakers, so audio resonates even in large auditoriums, atriums, and conference centers.
- Eco Mode for Low Power Consumption
- When used in Eco mode, the projector starts up and shuts down quickly, without residual noise that can interfere with your discussions. Toggle to Eco mode to reduce the amount of energy the projection system uses for each image. For example, darker images require less light, so less energy is needed and lamp life expectancy extends up to 4,000 hours.
- Other Features
-
- Supports AV muting, freezing, resizing (magnifying), user logo
- Supports manual keystone (vertical & horizontal) and auto keystone (vertical)
- Password protection
- Wall Color mode
- Kensington lock
- 3D Projection-ready
- Firmware update via USB
In the Box Ricoh PJ WU5570 5500-Lumen WUXGA DLP Projector RGB Cable VGA Cable Power Cable Remote with Batteries Filter Lens Cap Limited 3-Year Warranty Limited 90-Day Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh PJ WU5570 5500-Lumen WUXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh PJ WU5570 Specs | | | Display System | 1-Chip 0.67" DLP | | Native Chip Resolution | 1920 x 1200 (WXGA) | | Max Brightness | 5500 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 9000:1 | | Scan | Horizontal: 30 to 100 Hz

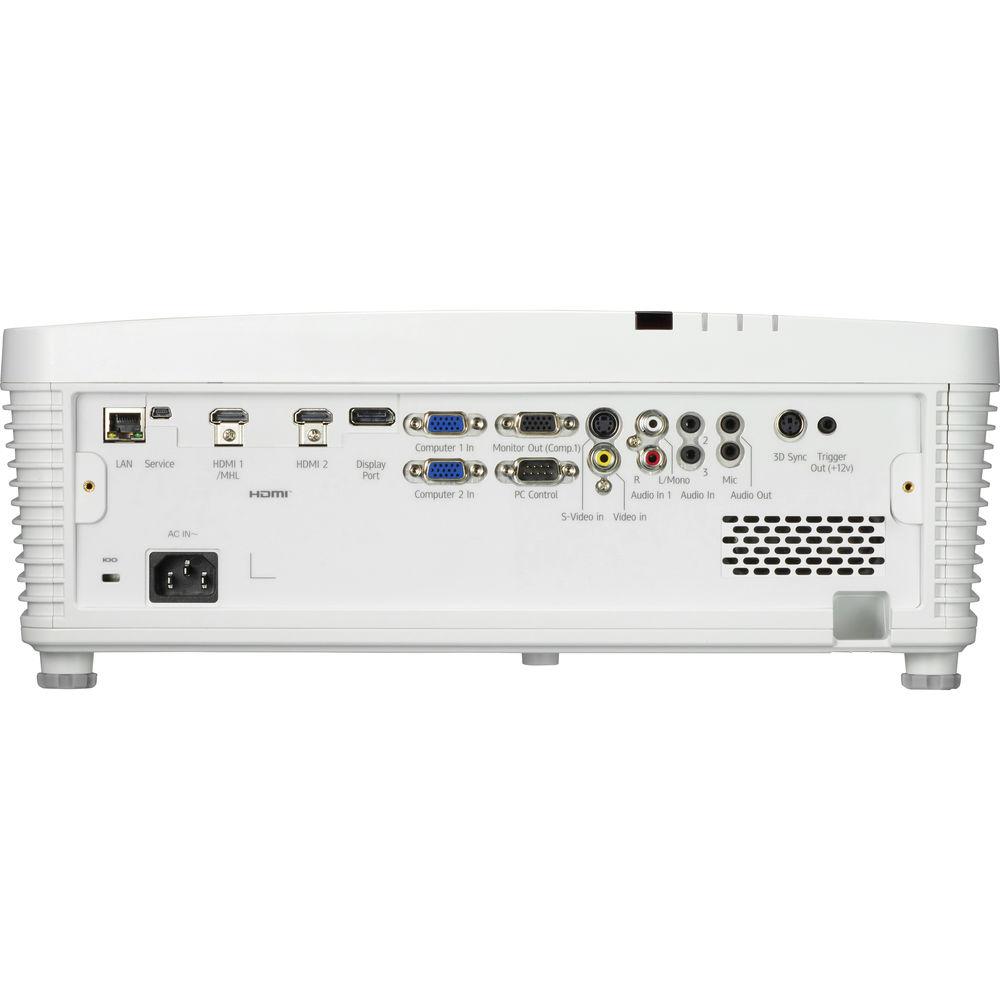

Vertical: 50 to 85 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.8x | | Throw Distance | 3.28 - 44.2' / 1 - 13.472 m | | Throw Ratio | 1.241 - 2.222:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Auto | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x HDMI with MHL Support Audio/Video (Input)
1 x HDMI Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x DisplayPort Audio/Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Component (3RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
2 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x Mini-USB Type-B Female
1 x Unspecified Signal (DE-9) Control | | | | Lamp Power | 365 W
292 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 4000 Hours | | Fan Noise | Medium Brightness: 35 dB
Low Brightness: 32 dB | | Security | Cable Lock Slot
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: <450 W
Low Brightness: 360 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 16.7 x 14.0 x 5.9" / 42.4 x 35.6 x 15.0 cm | | Weight | 13.97 lb / 6.34 kg approximately |
