User Manual for Ricoh PJ WU6181N 6200-Lumen WUXGA LCD Projector Click to enlarge the picture
Contents of the user manual for the Ricoh PJ WU6181N 6200-Lumen WUXGA LCD
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
 |
User manual for the Ricoh PJ WU6181N 6200-Lumen WUXGA LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|

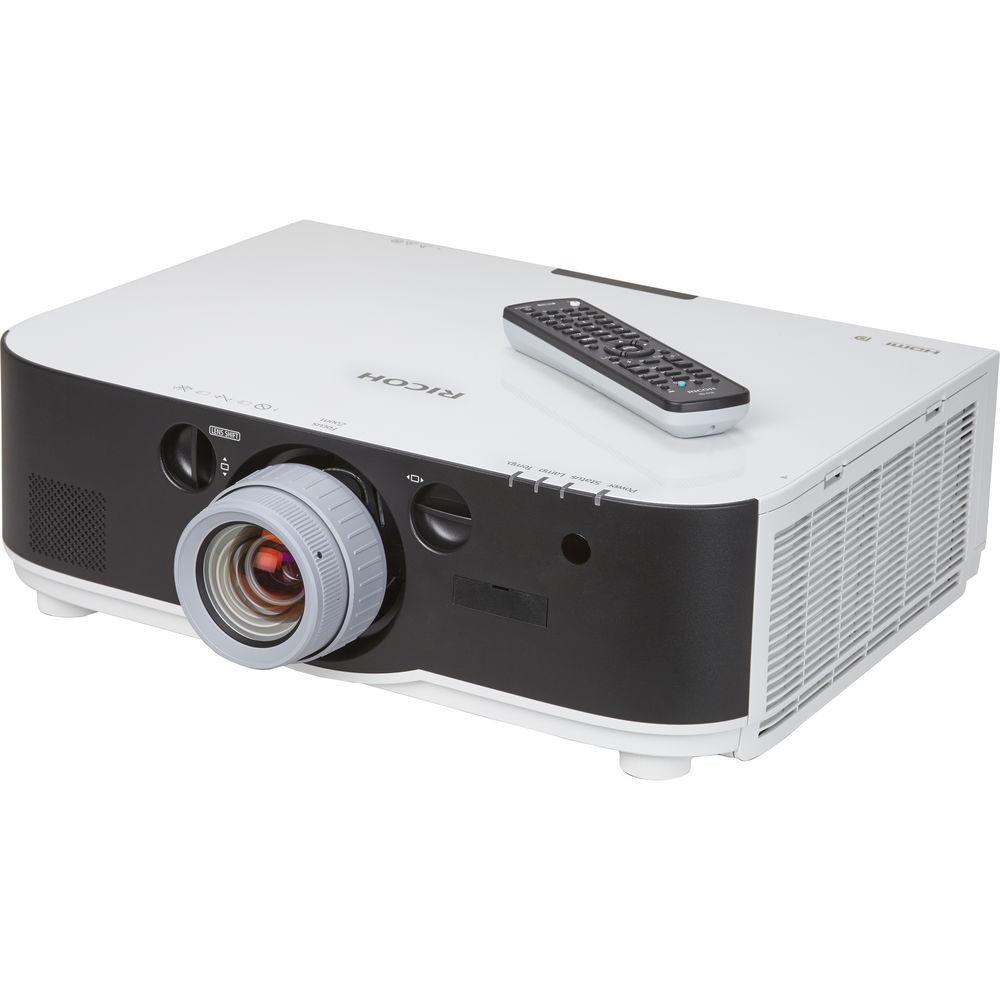

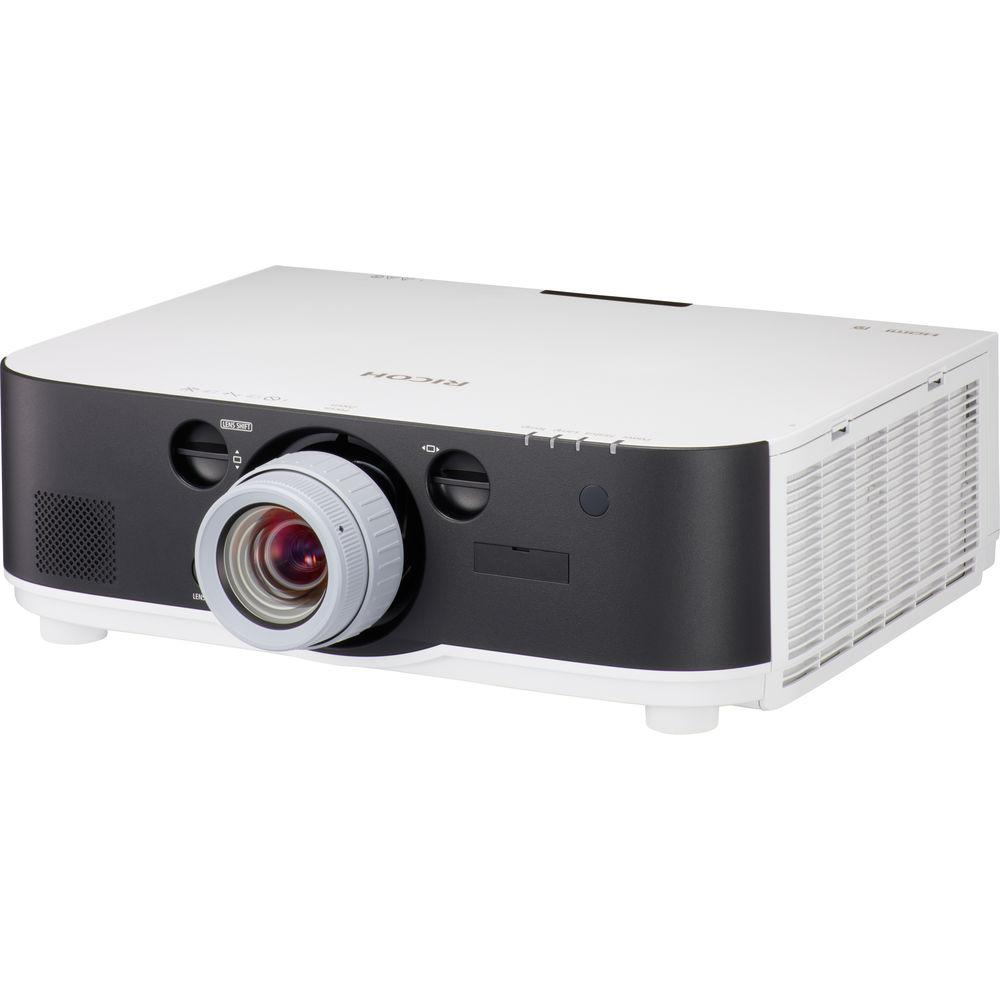

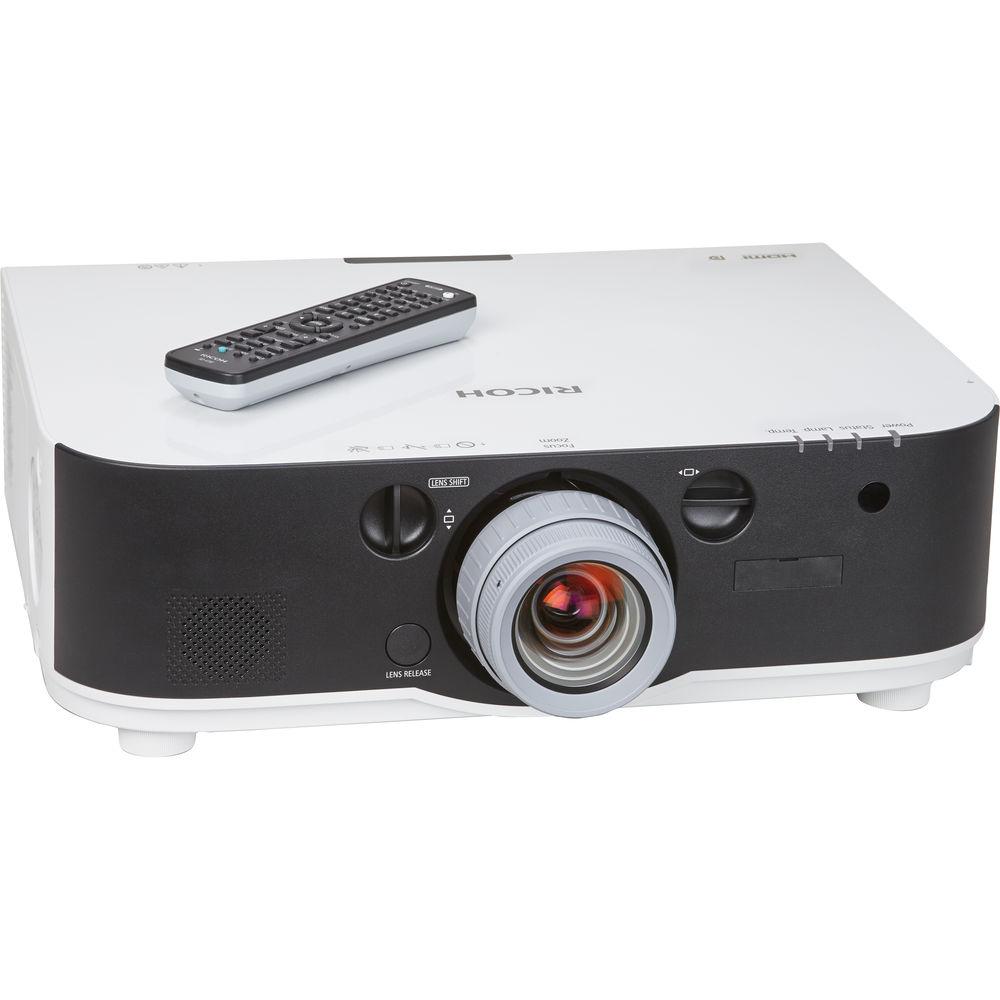

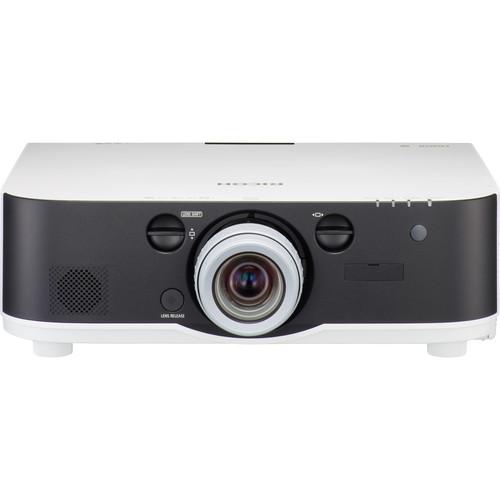

Product description The PJ WU6181N 6200-Lumen WUXGA LCD Projector from Ricoh offers a resolution of 1920 x 1200 and contrast ratio of 6000:1, delivering remarkable image quality under any lighting condition. It is ideal for projecting your multimedia content in lecture halls, classrooms, and conference rooms. It can meet the needs of audiences from 10 to 100 people. Its operation is convenient and intuitive, thanks to the included remote control. There are a wide choice of connectivity options including HDMI, component, USB, and optional Wi-Fi LAN. - Powerful Image Projection
-
- High power output of 483W makes the projector ideal for audiences from 10 to 100 people
- High-resolution capacity allows you to project presentations onto screens as large as 500” (diagonal)
- Keystone correction eliminates image distortion, even when you project onto curved and irregular surfaces
- Connectivity Options
-
- Two HDMI connections are provided so you can project high-quality images, including the 3D content
- USB port allows you to screen slideshows without the need for a computer connection
- LAN connection allows use of remote input devices, while the optional Wi-Fi LAN connection eliminates the need for a network cable
- Included remote control operation simplifies screening presentations
- High-Quality Contrast and Imaging
-
- 6200-Lumen output provides high brightness and vivid colors, even for projection onto big screens in large venues such as hotel conference rooms, art galleries, and education lecture halls
- A contrast ratio of 6000:1 gives relaxed and comfortable viewing over long periods
- Provides the latest WUXGA display resolution of 1920 x 1200 pixels
- Flexible Screening Options
-
- Portrait mode setting allows you to use these projectors easily for digital signage applications, ideal for events and retail applications
- Portrait mode also allows for more flexible digital mapping onto a variety of surfaces and shapes for creative and impactful presentations
In the Box Ricoh PJ WU6181N 6200-Lumen WUXGA LCD Projector (No Lens) Power Cable RGB Cable Remote Control with Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh PJ WU6181N 6200-Lumen WUXGA LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

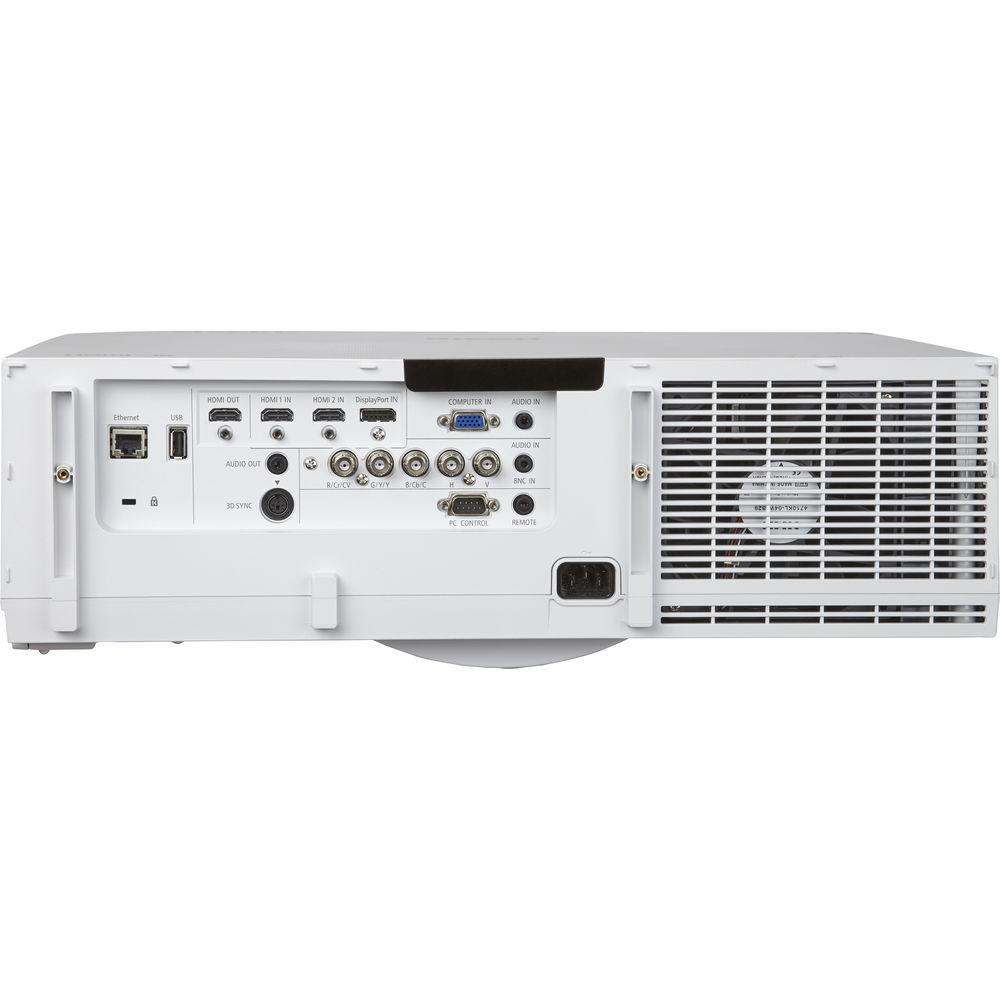

Technical parametersRicoh PJ WU6181N Specs | | | Display System | 0.76" LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | WUXGA | | Max Brightness | 6200 Lumens | | Contrast Ratio | 6000:1 | | Dynamic Contrast Ratio | 10,000:1 | | Scan | Horizontal: 30 to 100 kHz
Vertical: 50 to 85 Hz | | | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x HDMI Video
1 x 5BNC Video
1 x Component (3RCA) Video
1 x Composite (BNC) Video
2 x 1/8" (3.5 mm) Mini Audio
1 x USB Type-B Female | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Lamp Power | 350 W
264 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 4000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 33 dB | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 483 W
Low Brightness: 377 W
Standby Mode (Lamp Off): 0.11 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 80 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 80 - 80% | | Dimensions (W x H x D) | 19.6 x 14.1 x 5.6" / 499.0 x 359.0 x 142.0 mm | | Weight | 18.5 lb / 8.4 kg |
