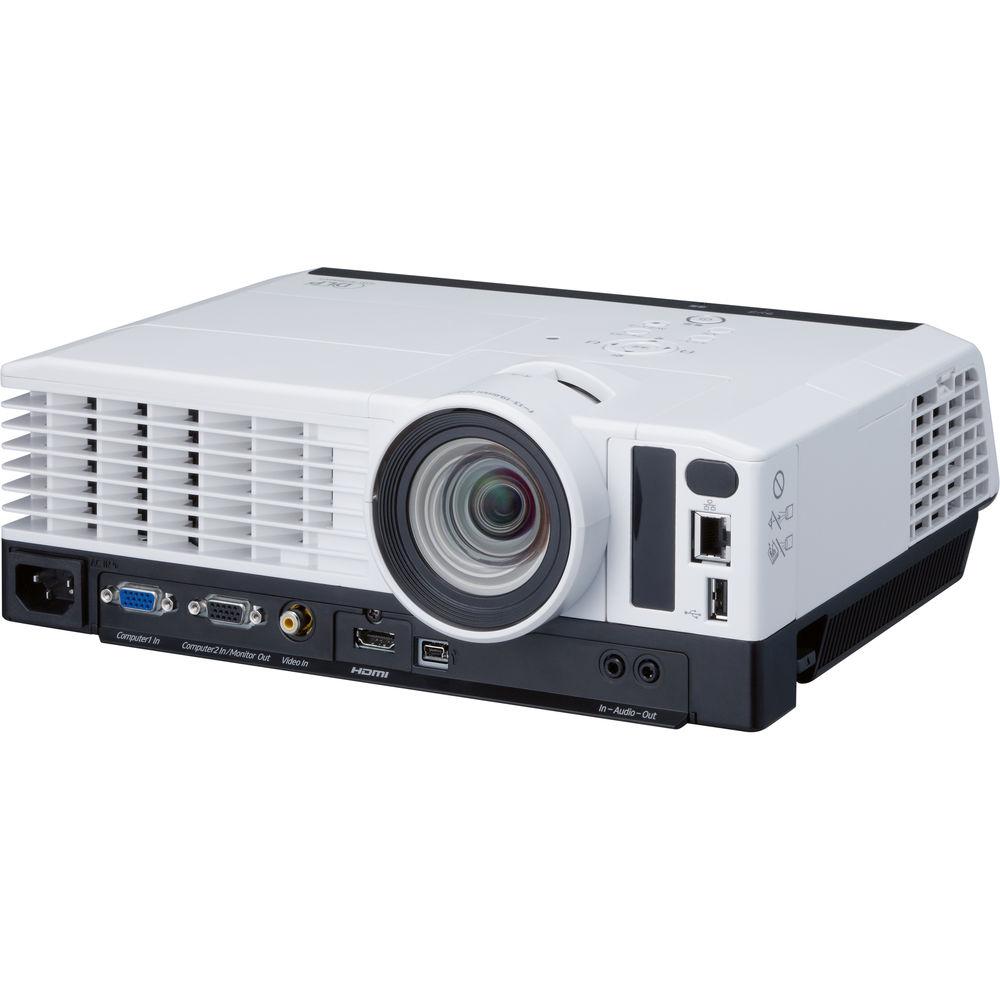

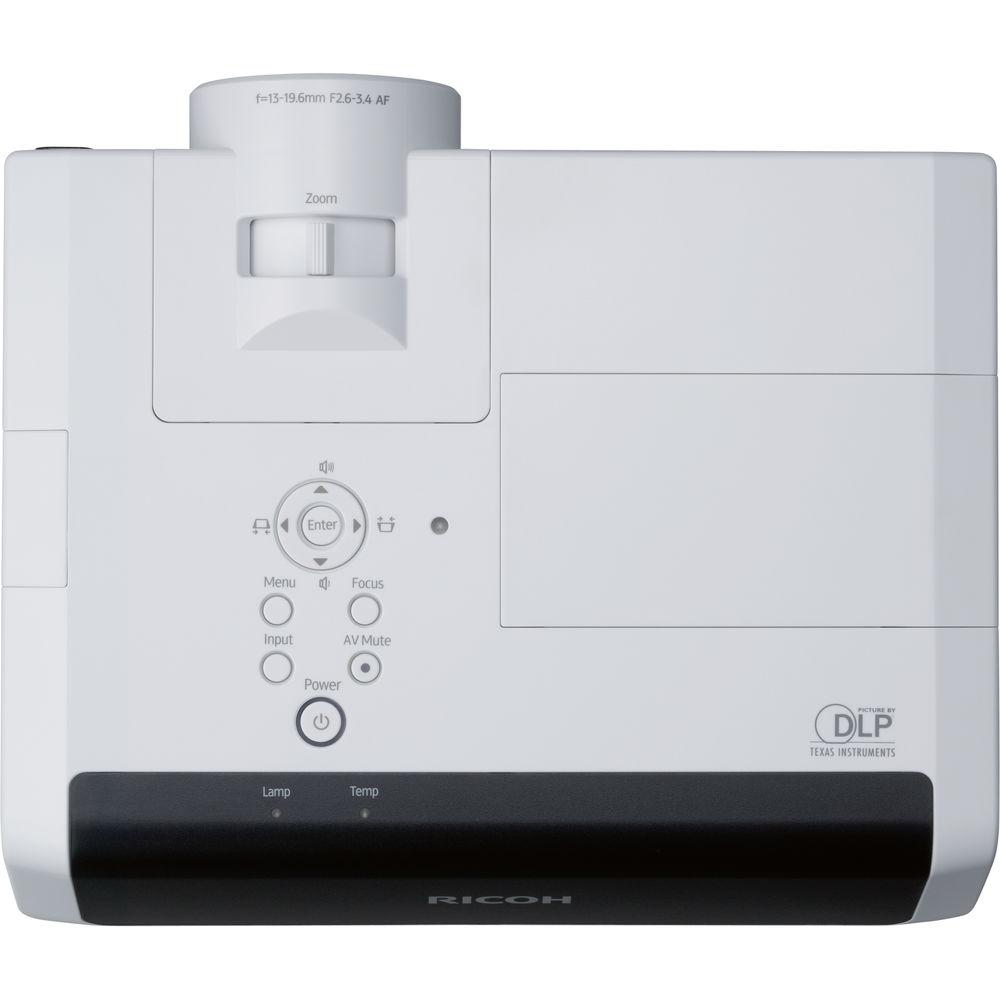

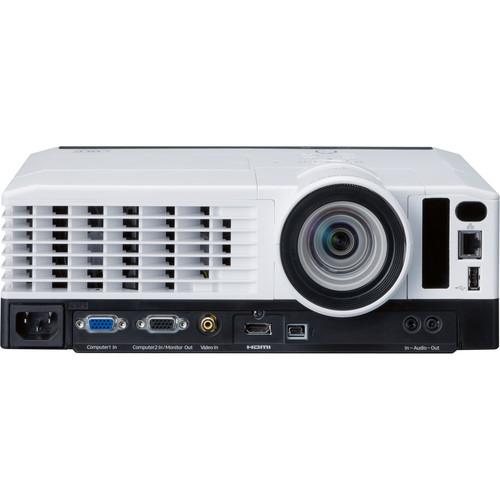

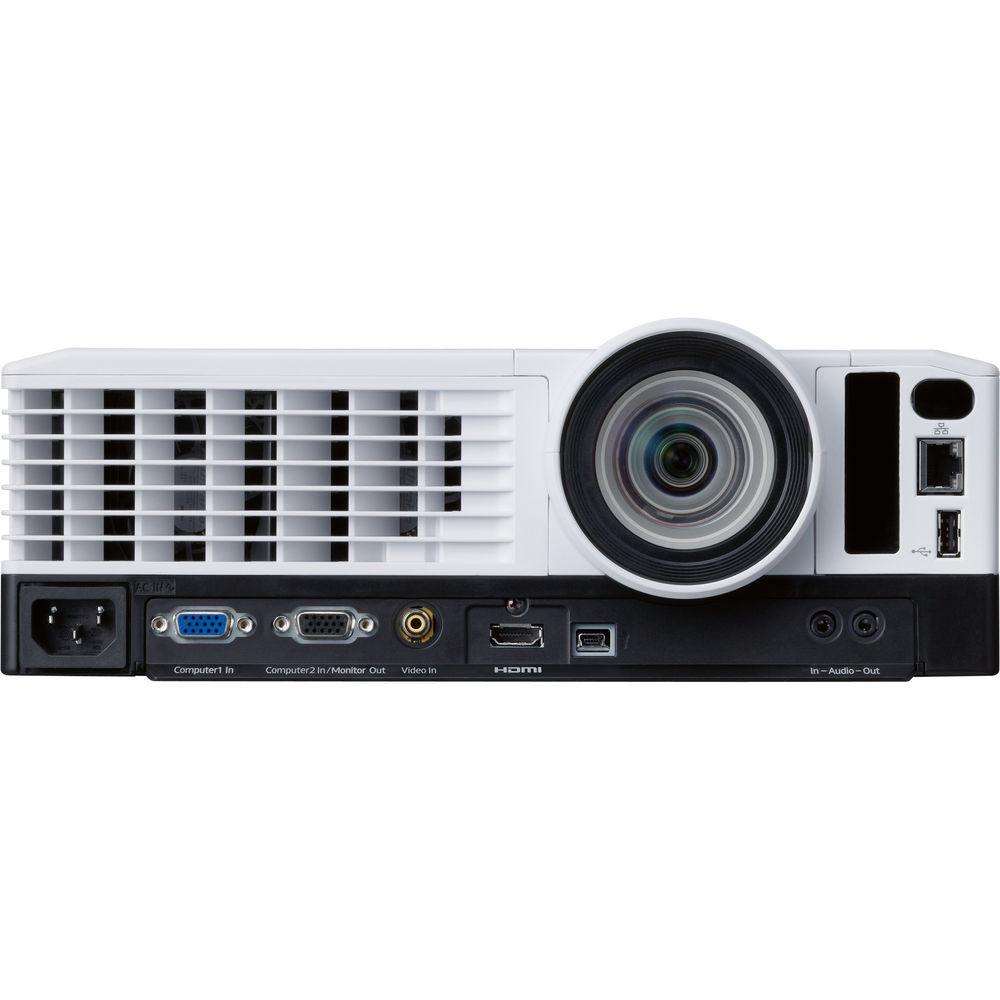

User Manual for Ricoh PJ WX3351N Desk Edge Series WXGA Single-Chip DLP Projector Click to enlarge the picture
Contents of the user manual for the Ricoh PJ WX3351N Desk Edge Series
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
 |
User manual for the Ricoh PJ WX3351N Desk Edge Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|
Product description The PJ WX3351N Desk Edge Series WXGA Single-Chip DLP Projector from Ricoh allows you to project clear images from the edge of any table or stand. Intuitive controls, advanced connectivity, and a 360° viewing angle allows you to display critical information on the wall, ceiling, or floor of conference and training rooms. You can use an optional interactive kit to encourage collaboration with your audience. With Miracast support, you can share images and information directly from the screen of your personal Microsoft or Android device (sold separately). You can also save files to a USB flash drive (sold separately) and plug it directly into the projector to begin your presentation.With the same lens technology as a digital SLR camera, the Ricoh PJ WX3351N can showcase clear images up to 400" diagonally from a table's edge with less glare and fewer shadows. Its footprint is similar to a letter-sized piece of paper. All connections are on the front of the device, so there are no cables, fans, or heat to distract participants. With PJLink, administrators can power the unit on or off, configure settings, and run status reports remotely to ensure everything is functioning properly. You can connect to the network through the LAN, wirelessly, or both. For example, you can use your wired secure network and have your guests access the presentation using the wireless network to protect any sensitive information. If images are distorted or out of focus, the projector balances itself and auto-focuses instantly. Colors can even be adjusted to compensate for the color of the projection surface. For manual operation, you can access easy-to-reach controls on top of the projector, or use the convenient remote control without distracting your audience. - Display images, movies, and more with up to WXGA (1280 x 800) resolution
- Connect to DVD or Blu-ray players for live-action displays, including 3D projections and MPEG4 formats
- Features a brightness rating reaching 3,600 lumens with a 13,000:1 contrast ratio
- Auto Brightness mode senses the amount of light in the room and makes adjustments automatically
- With Digital Light Processing (DLP) and Eco Mode, the device requires less heat and energy
- Power settings and lamp brightness can be preset to extend lamp life and reduce operating costs
- Built-in speakers eliminate additional speaker costs
- Supports AV muting (blanking), freezing, resizing (magnifying), auto keystone correction (vertical), digital zoom (80 to 100%), password protection, wall color mode, Eco mode, automatic brightness control, multi-screen projection (one PC to four projectors), carbon meter, color universal design, presentation timer, Blu-ray 3D projection-ready, timer set on/off, projector management, firmware update
- Crestron, AMX, and DLNA compatible

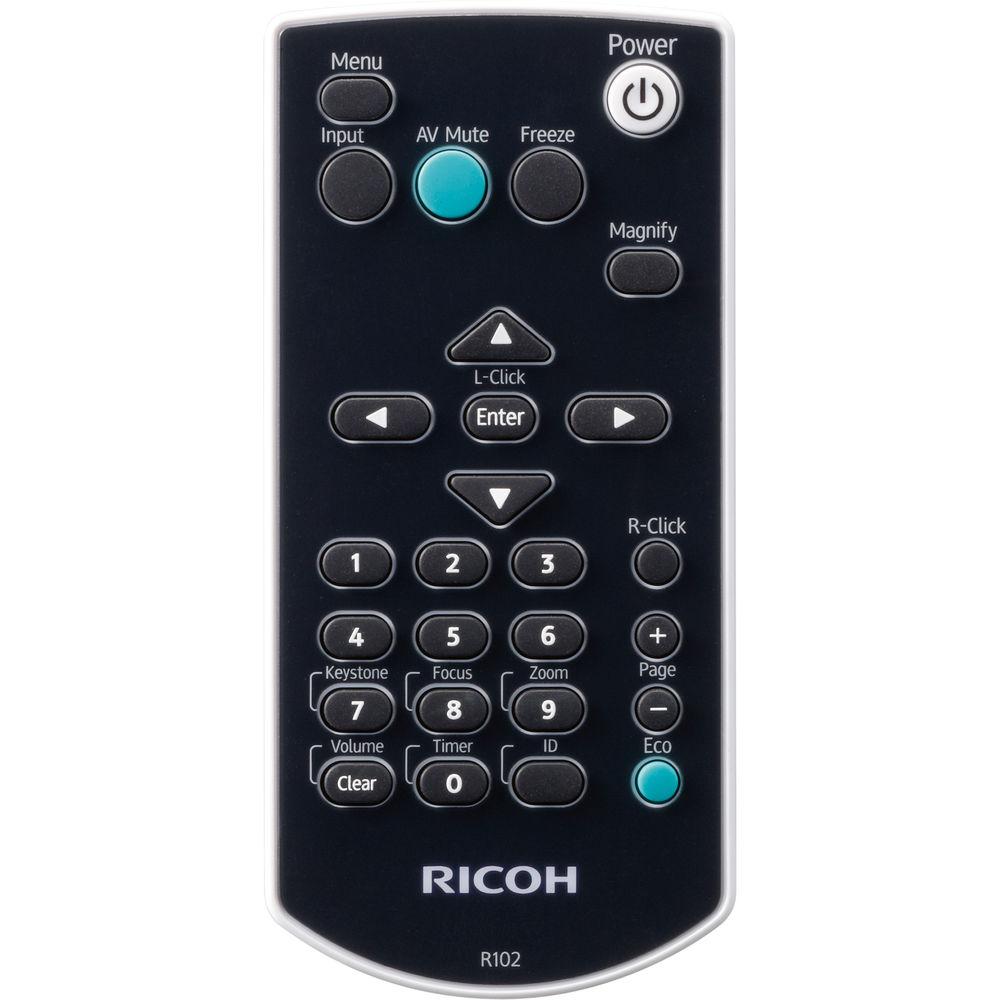

UPC: 026649320101 In the Box Ricoh PJ WX3351N Desk Edge Series WXGA Single-Chip DLP Projector 9.8' RGB Cable 9.8' 3-Pin Power Cord Soft-Side Carrying Case Remote Control CD-ROM Limited 3-Year Warranty Limited 90-Day Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh PJ WX3351N Desk Edge Series WXGA Single-Chip DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh PJ WX3351N Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 3300 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 13000:1 | | Scan | Horizontal: 15 to 100 kHz
Vertical: 23 to 85 Hz | | | | Focus | Auto | | Throw Distance | 30.3 - 481.9" / 76.962 - 1224.026 cm | | Throw Ratio | 0.89 - 1.40:1 | | Projection Size | 40 - 400" / 101.60 - 1016.00 cm | | | | Keystone Correction | Auto | | Digital Zoom | 1.5x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x Mini DVI Video (Input)
1 x Mini DVI Video (Output)
1 x Component (3RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB 2.0 Type-A Female
1 x HDMI Audio/Video | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Lamp Power | 250 W | | Expected Lamp Life | Medium Brightness: 3500 Hours
Low Brightness: 5000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 32 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Photo File Types | JPEG | | Supported Video File Types | MP4, MPEG2 | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Norwegian
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: <316 W
Low Brightness: 209 W
Standby Mode (Lamp Off): 0.3 W
Standby Mode (Lamp Off): <1.4 W | | Temperature | Operating
41 to 95°F (5 to 35°C)
Humidity: 30 - 70% | | Dimensions (W x H x D) | 11.6 x 9.2 x 3.9" / 29.5 x 23.4 x 9.9 cm | | Weight | 6.8 lb / 3.1 kg approximately | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 16.9 x 13.0 x 9.0" |
