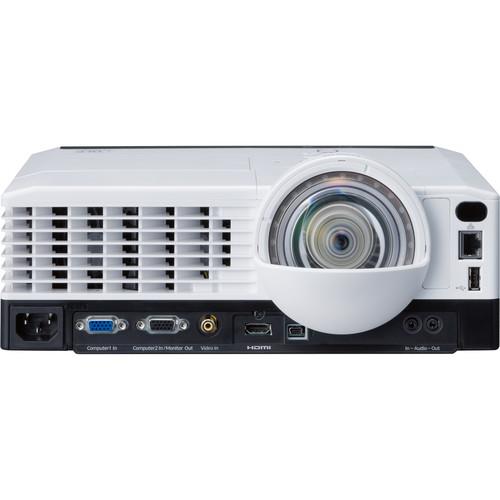

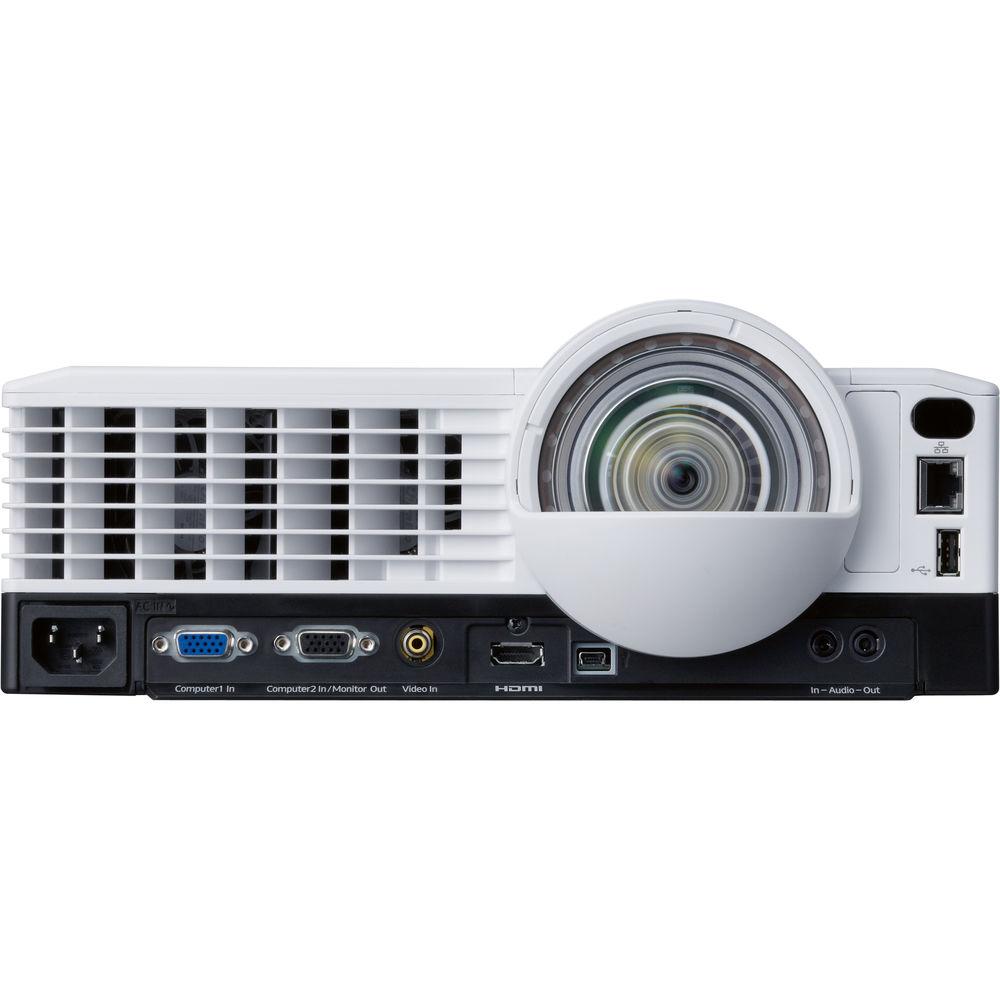

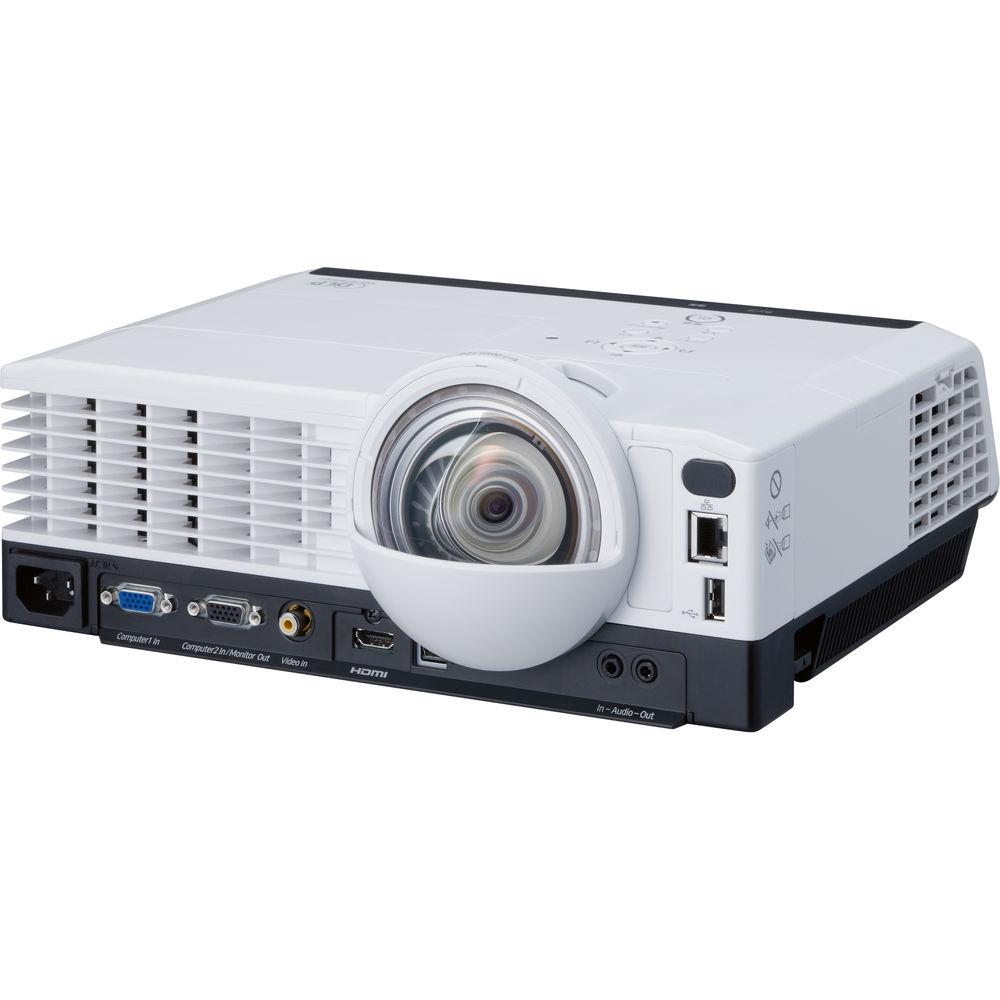

User Manual for Ricoh PJ WX4241N 3300-Lumen WXGA Single-Chip DLP Short Throw Projector Click to enlarge the picture
Contents of the user manual for the Ricoh PJ WX4241N 3300-Lumen WXGA Single-Chip
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
 |
User manual for the Ricoh PJ WX4241N 3300-Lumen WXGA Single-Chip contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|
Product description The PJ WX4241N 3300-Lumen WXGA Single-Chip DLP Short Throw Projector from Ricoh allows you to project clear images, movies, training videos, and more in a classroom. Because it's designed specifically for short throw projection, you can place the projector closer to the screen. It can be placed as close as 23" from the screen and can project precise images up to 400" diagonally. This helps the PJ WX4241N to eliminate shadows, glare, cables, and other distractions.When you pair it with an optional interactive kit, you can transform the projector into an interactive whiteboard and add critical information during presentations. With drawing software it's easy to embed clean, precise shapes or lines around key areas of your presentation to personalize it on the fly for each audience. You can add discussion notes, or hand a pen to a participant in the room and have them add their own insights for a true interactive experience.Whether you use the projector on a table's edge or mount it in the ceiling, you can take advantage of its 360° projection angle to ensure your projected display is exactly where you want it. And thanks to wireless LAN support, the PJ WX4241N projector supports Miracast. - Presentation begins moments after you turn it on; when it's done, the device can shut down automatically without residual noise
- Use the presentation timer to keep your meeting on schedule

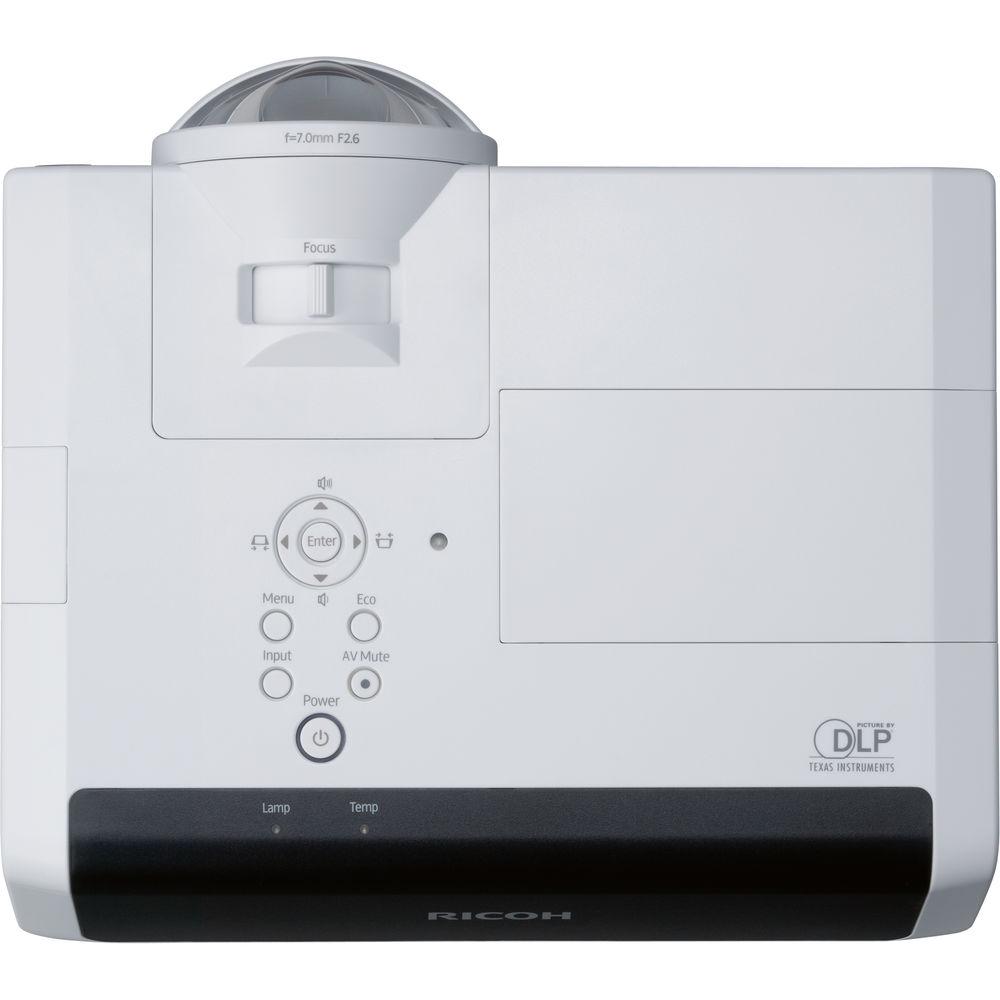

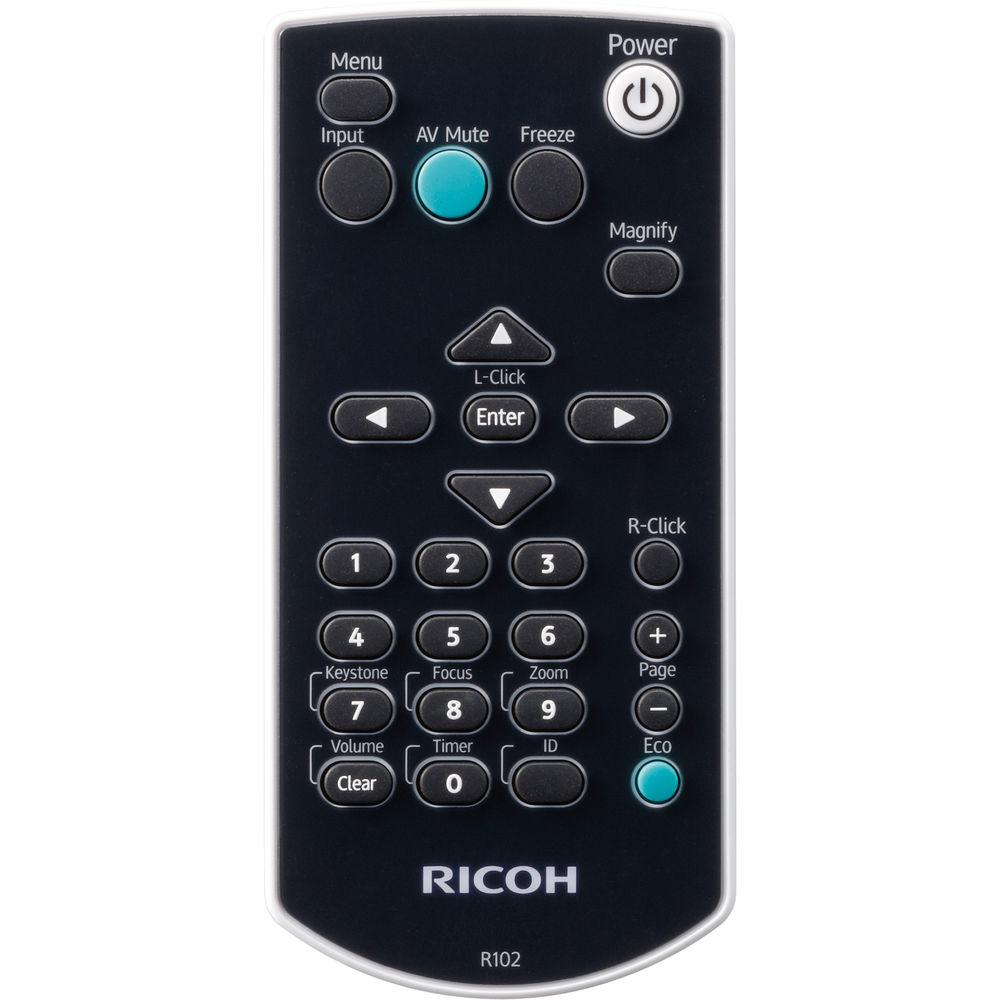

- Access all controls on the top of the device or use the convenient remote control to operate it manually without blocking the projection
- The projector balances itself and uses keystone auto correction to minimize vertical distortion
- Auto Brightness mode delivers hands-free brightness level adjustments to complement the level of ambient room lighting
- You can even adjust the colors of projected images to compensate for the color of the projection surface
- The projector has the same lens technology as a digital SLR camera, so you can showcase sharp, vivid images
- Connect it to DVD or Blu-ray players using the HDMI port for large-screen movies and training videos, even in MPEG4 or 3D formats
- Brightness rating of 3300 lumens and a 13,000:1 contrast ratio
- Because the projector features DLP technology, it requires less heat and energy to produce crisp, clear, and bright projections
- Settings can be controlled remotely via PJLink, so administrators can configure settings, check status, and even power the unit on or off remotely to simplify tasks for inexperienced presenters
- With Eco mode, power settings and lamp brightness can be preset to extend lamp life and help reduce operating costs
- Use multi-screen mode to show the same presentation with four different projectors in four different locations at the same time
- Supports AV mute (blank), freezing, resizing (magnifying), and wall color mode
- Blu-ray 3D projection ready
- Crestron, AMX, and DLNA compatible
- PC-free presentation for JPEG/MPEG2/MPEG4 files via USB
UPC: 026649320125 In the Box Ricoh PJ WX4241N 3300-Lumen WXGA Single-Chip DLP Short Throw Projector RGB Cable (9.8') Three-Pin Power Cord (9.8') Software CD-ROM Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh PJ WX4241N 3300-Lumen WXGA Single-Chip DLP Short Throw Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh PJ WX4241N Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 3300 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 13000:1 | | Scan | Horizontal: 15 to 100 kHz
Vertical: 23 to 85 Hz | | | | Focus | Manual | | Throw Distance | 24 - 169.6" / 60.96 - 430.784 cm | | Throw Ratio | 0.47:1 | | Projection Size | 60 - 400" / 152.40 - 1016.00 cm | | | | Keystone Correction | Auto | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x Mini DVI Video (Input)
1 x Mini DVI Video (Output)
1 x Component (3RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB 2.0 Type-A Female
1 x HDMI Audio/Video | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Lamp Power | 250 W | | Expected Lamp Life | Medium Brightness: 3500 Hours
Low Brightness: 5000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 32 dB | | Security | Password Protection | | Supported Photo File Types | JPEG | | Supported Video File Types | MP4, MPEG2 | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Norwegian
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: <316 W
Low Brightness: 209 W
Standby Mode (Lamp Off): 0.3 W
Standby Mode (Lamp Off): <1.4 W | | Temperature | Operating
41 to 95°F (5 to 35°C)
Humidity: 30 - 70% | | Dimensions (W x H x D) | 11.6 x 9.2 x 3.9" / 29.5 x 23.4 x 9.9 cm | | Weight | 6.8 lb / 3.1 kg approximately | | | | Package Weight | 11.4 lb | | Box Dimensions (LxWxH) | 14.8 x 14.4 x 9.4" |
