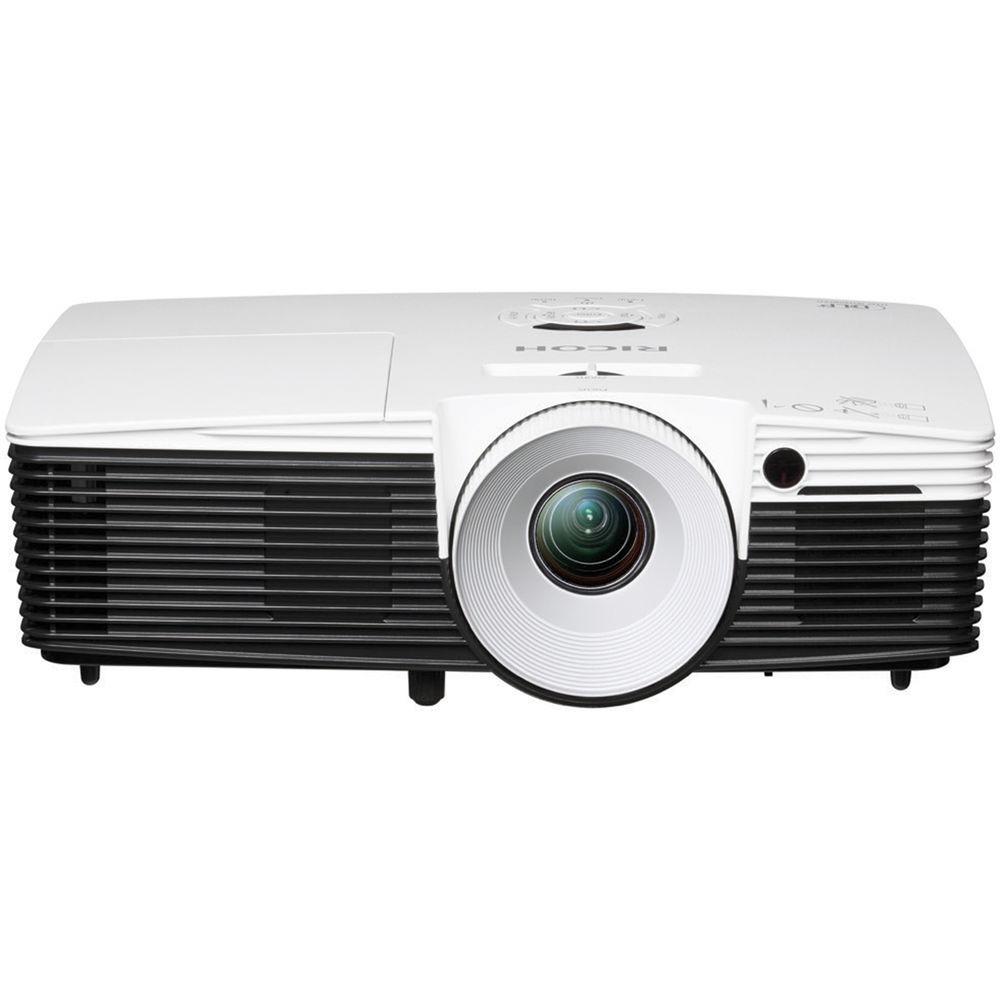

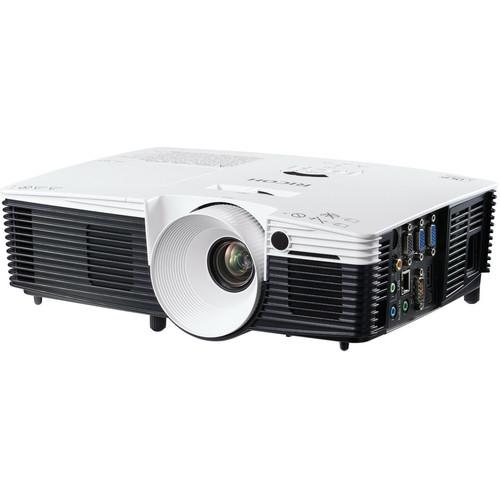

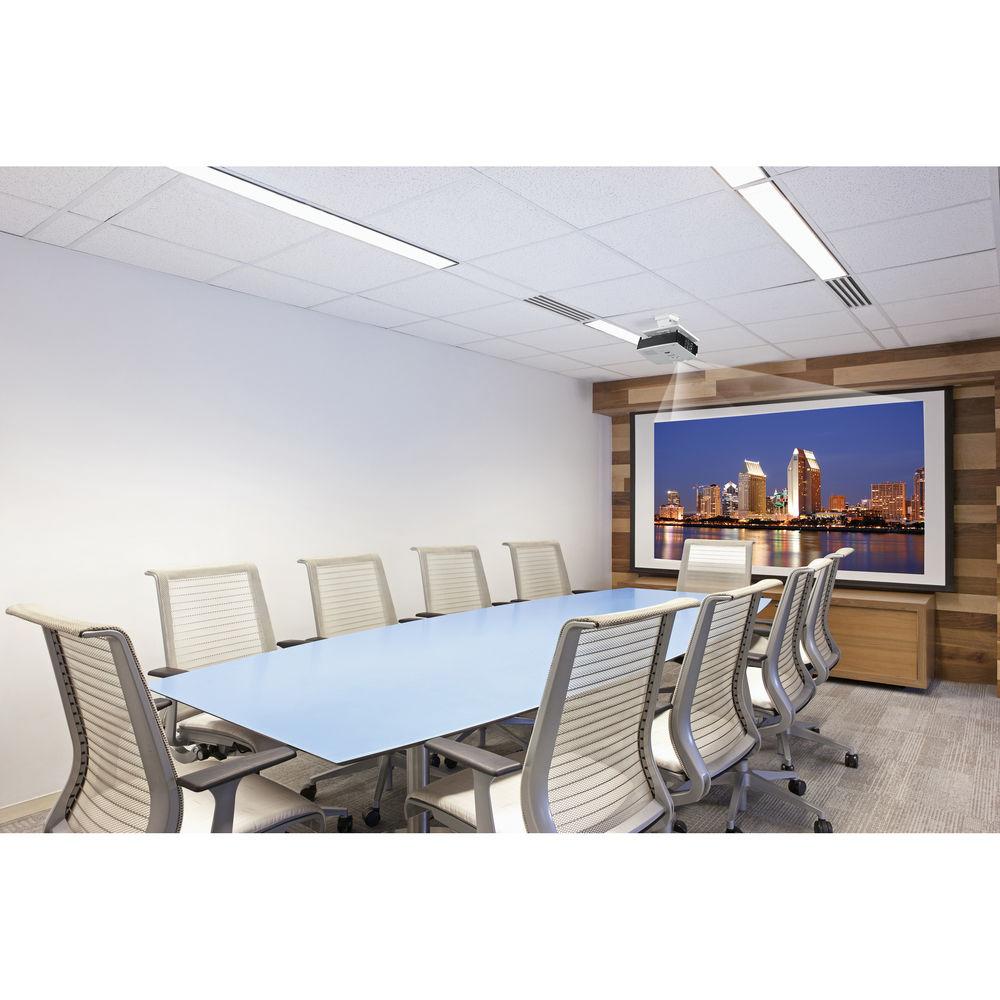

User Manual for Ricoh PJ WX5460 4100-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Ricoh PJ WX5460 4100-Lumen WXGA DLP
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
 |
User manual for the Ricoh PJ WX5460 4100-Lumen WXGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|

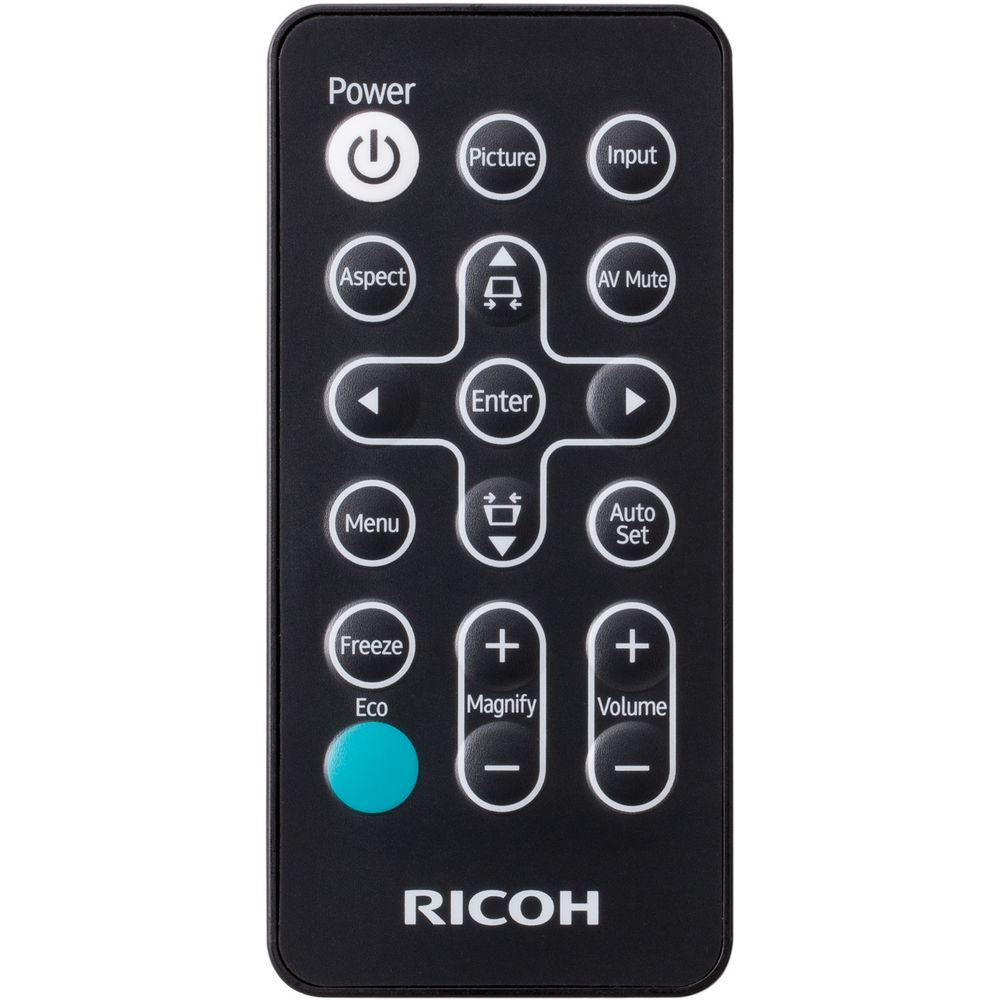

Product description The PJ WX5460 4100-Lumen WXGA DLP Projector from Ricoh features a WXGA resolution of 1280 x 800, a 10,000:1 contrast level, and long lamp life (up to 4000 hours in Eco mode). The remote control makes operation easy, and the wide choice of interface connections, including HDMI, allows input from a range of devices for maximum flexibility. With the included carrying case, this projector can be carried easily for set-up in any location. It features an RS-232C port for PC control. - Display images, movies, and more with up to a 1280 x 800 (WXGA) resolution
- Up to 4100 lumens to project bright images such as drawing, x-ray, and specifications even in minimal light
- HDMI connectivity and a contrast rate of up to 10,000:1 to display moving images or to highlight the smallest print on a financial spreadsheet with precision
- Easily connect to any camera, DVD player or other media device and share images, movies, information and more
- Display images within 5 seconds of turning on the device and shut it down immediately without residual noise
- With Digital Light Processing (DLP) and Eco mode, the device requires less heat and energy
- Projector Management Utility:
Windows Vista (32-bit/64-bit version) Ultimate, Business, Home Premium, Home Basic
Windows 7 (32-bit/64-bit version) Home Premium, Professional, Ultimate, Enterprise
Windows 8 (32-bit/64-bit version) Pro, Enterprise
Windows 8.1 (32-bit/64-bit version) Pro, Enterprise
Windows Server 2008 SP2 (32-bit/64-bit version)
Windows Server 2008 R2 Standard SP1 (64-bit version) - Adjuster, AV Mute, Freeze, Re-size (Magnify), Wall Color Mode, Kensington Lock, Eco Mode, 3D Projection Ready (for use with optional Ricoh PJ 3D Glasses Type 2)
In the Box Ricoh PJ WX5460 4100-Lumen WXGA DLP Projector RGB VGA Cable Power Cord Utility CD-ROM Lens Cap Remote Control CR2025 Battery Carrying Case Limited 90-Day Warranty on Lamp Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh PJ WX5460 4100-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

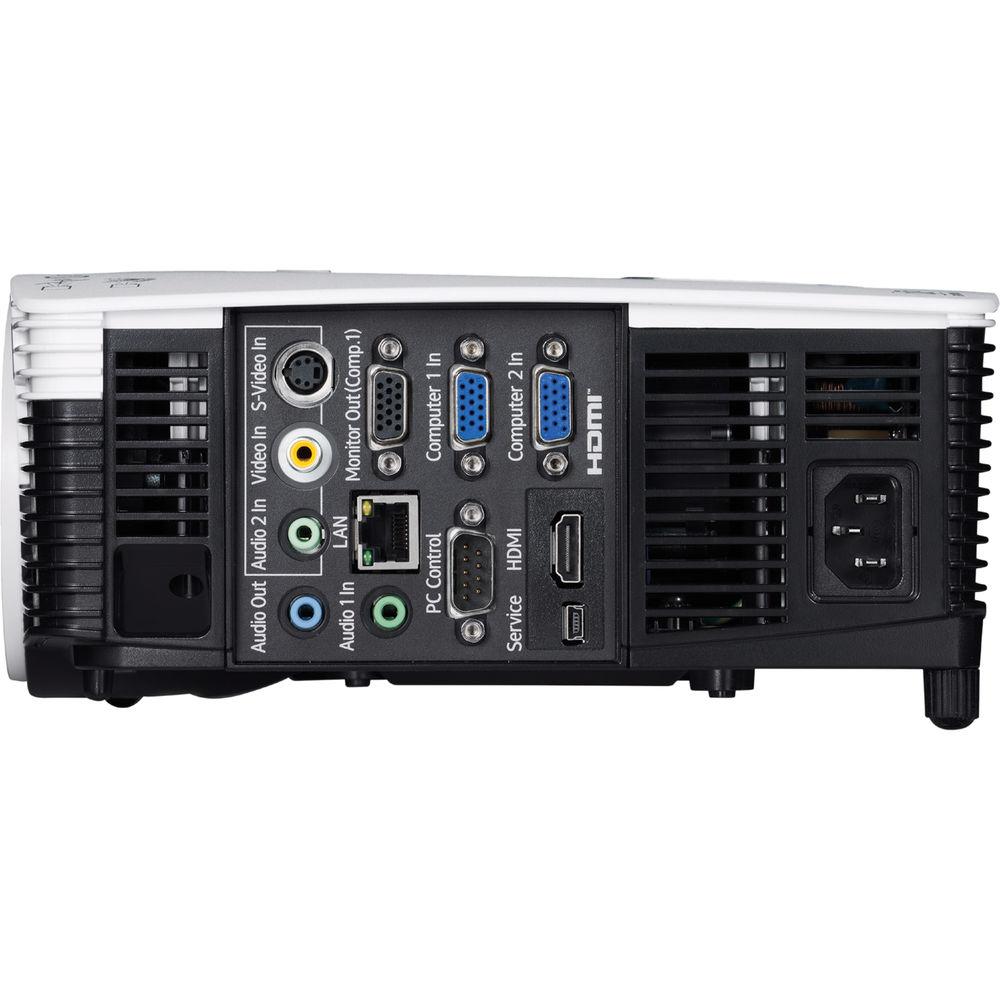

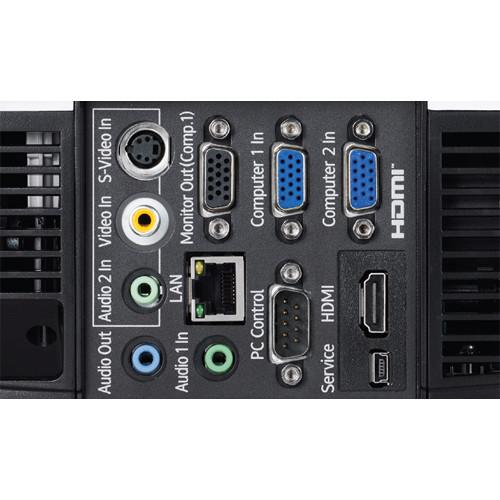

Technical parametersRicoh PJ WX5460 Specs | | | Display System | 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 4100 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 2000:1 | | DLP Link 3D | Yes | | | | Focus | Manual | | Throw Distance | 3.281 - 32.808' / 1 - 10 m | | Throw Ratio | 1.55 - 1.7:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x HDMI Video
1 x Unspecified Signal (DE-9) Control
1 x Ethernet (RJ45) LAN Video Input: 1 x RCA Jack

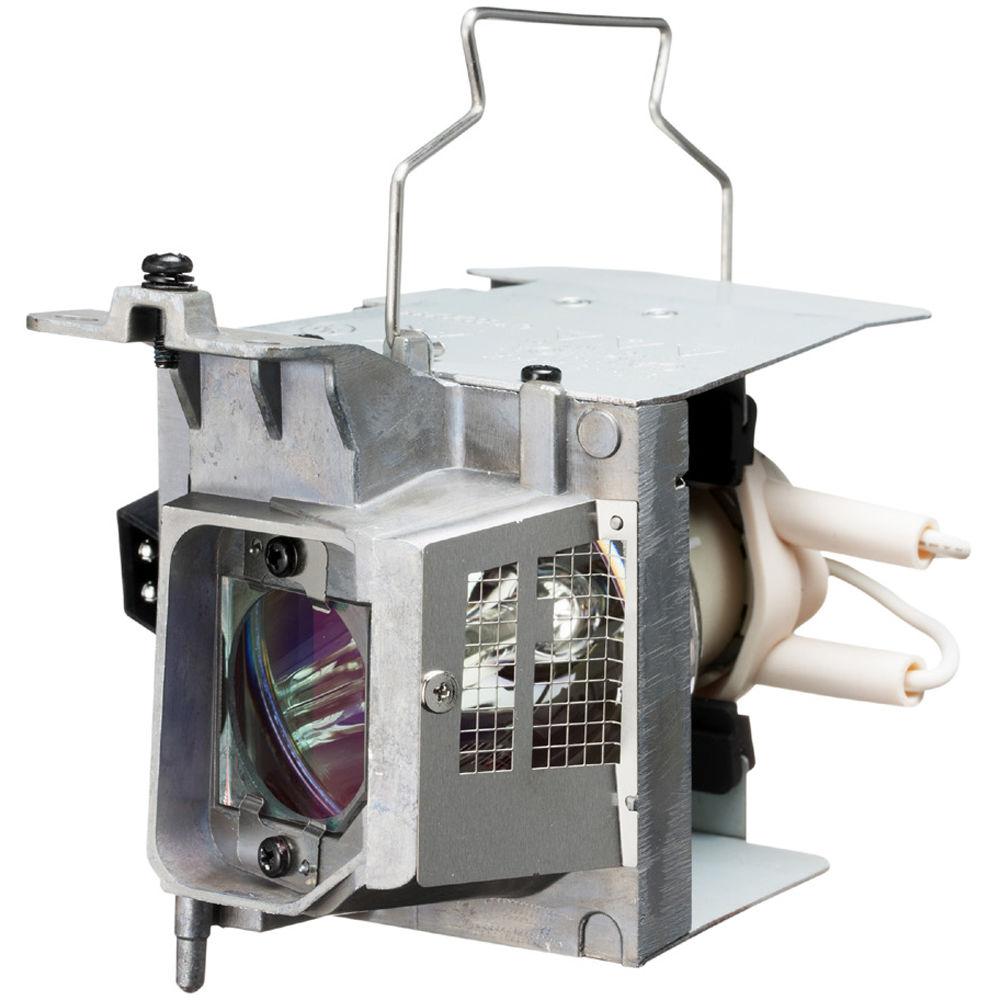

USB: 1 x Type minB (for firmware update) | | | | Lamp Power | 260 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 4000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 34 dB | | Security | Security Bar | | Power Consumption | Medium Brightness: 363 W
Low Brightness: 308 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Storage
41 to 104°F (5 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 12.4 x 4.0 x 8.8" / 31.5 x 10.2 x 22.4 cm | | Weight | 6.6 lb / 3.0 kg |
