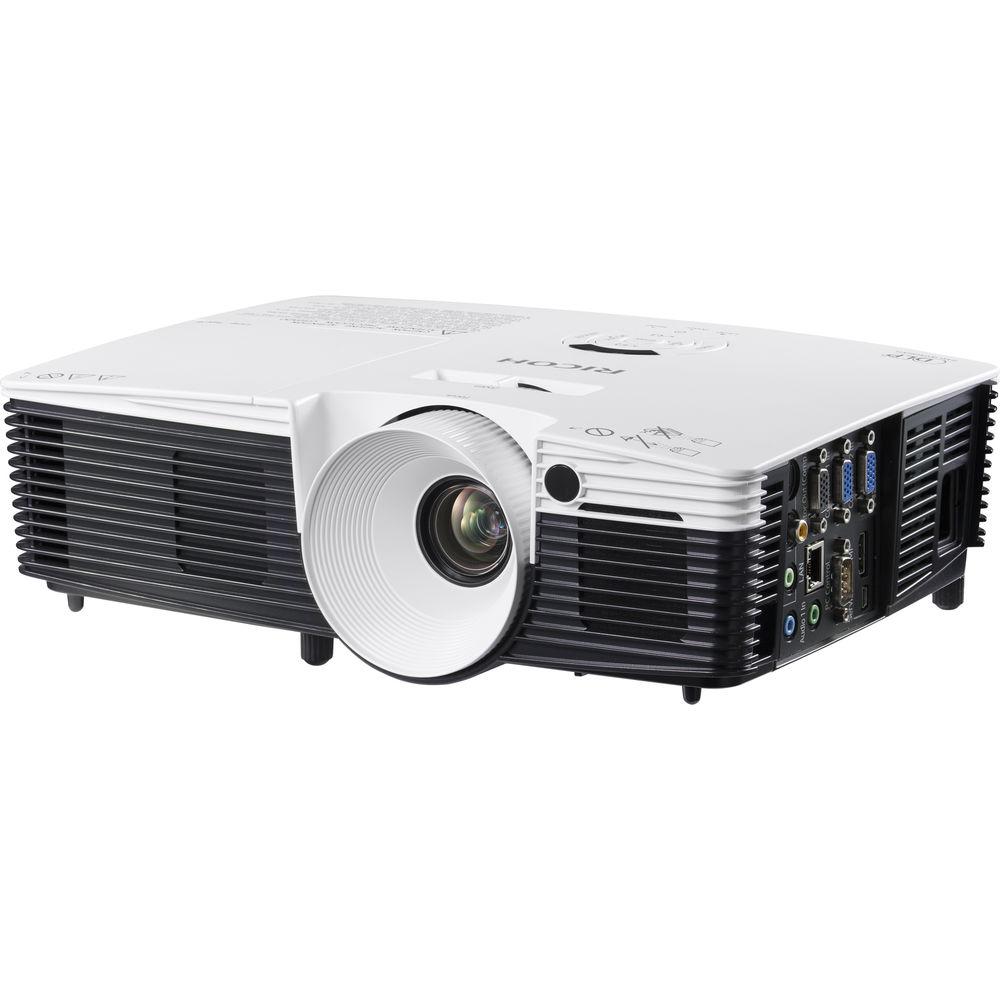

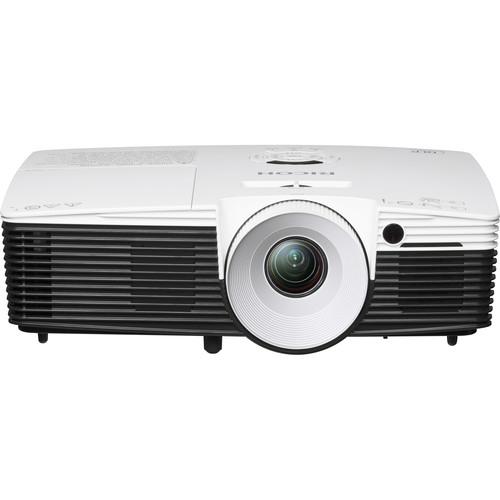

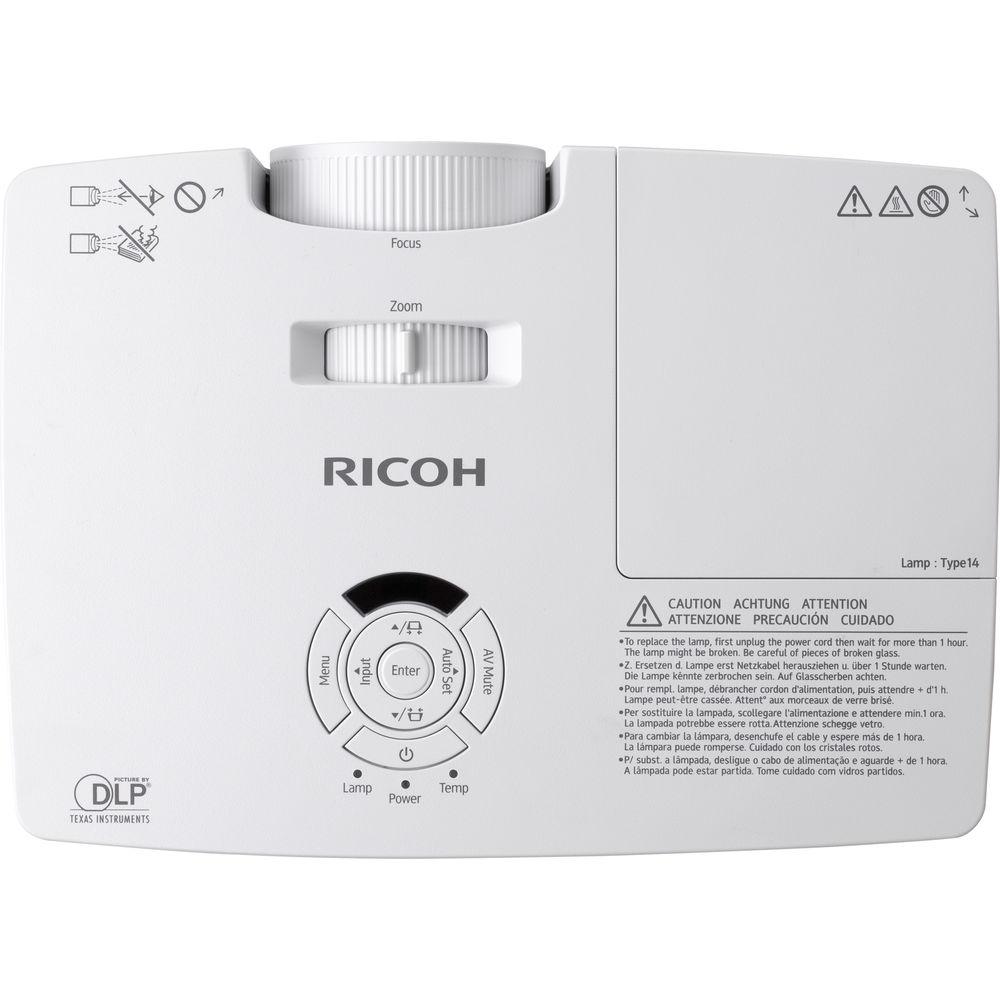

Product description The compact PJ WX5460 4100-Lumen WXGA Single-Chip DLP Projector from Ricoh features a 4100-lumen output and 1280 x 800 native resolution, providing high brightness and sharp vivid colors for comfortable viewing. The robust design makes this projector durable and reliable, requiring minimal maintenance. The EcoMode ensures long lamp life, cutting replacement and energy costs. - Compact and Easy-to-Use
-
- Intuitive to operate requiring no special expertise
- With a footprint just larger than an A4 sheet of paper and weighing only 7 lb, it is easy to carry and set up the projector in any convenient location
- Built-in 10W speaker eliminates the need for an external sound system for your presentations
- Wide Choice of Connectivity Options
-
- HDMI interface lets you project high-quality images, including the latest 3D content (optional 3D glasses required)
- The projector also has input ports for two computers, as well as a LAN connection
- For maximum convenience, an output port to a monitor and an audio-out connection for linking to an external sound system are provided
- Bright & Clear Images
-
- At 4000-Lumen brightness, projected images are clear and easy to view over long periods
- BrilliantColor technology offers up to six-color processing, enhancing secondary colors
- A lamp life up to 3,000 hours in standard mode can be extended to 4,000 hours, using EcoMode to lower the lamp brightness and reduce energy consumption
- Reliable, Simple Operation
-
- Reliable build quality for all your presentation needs

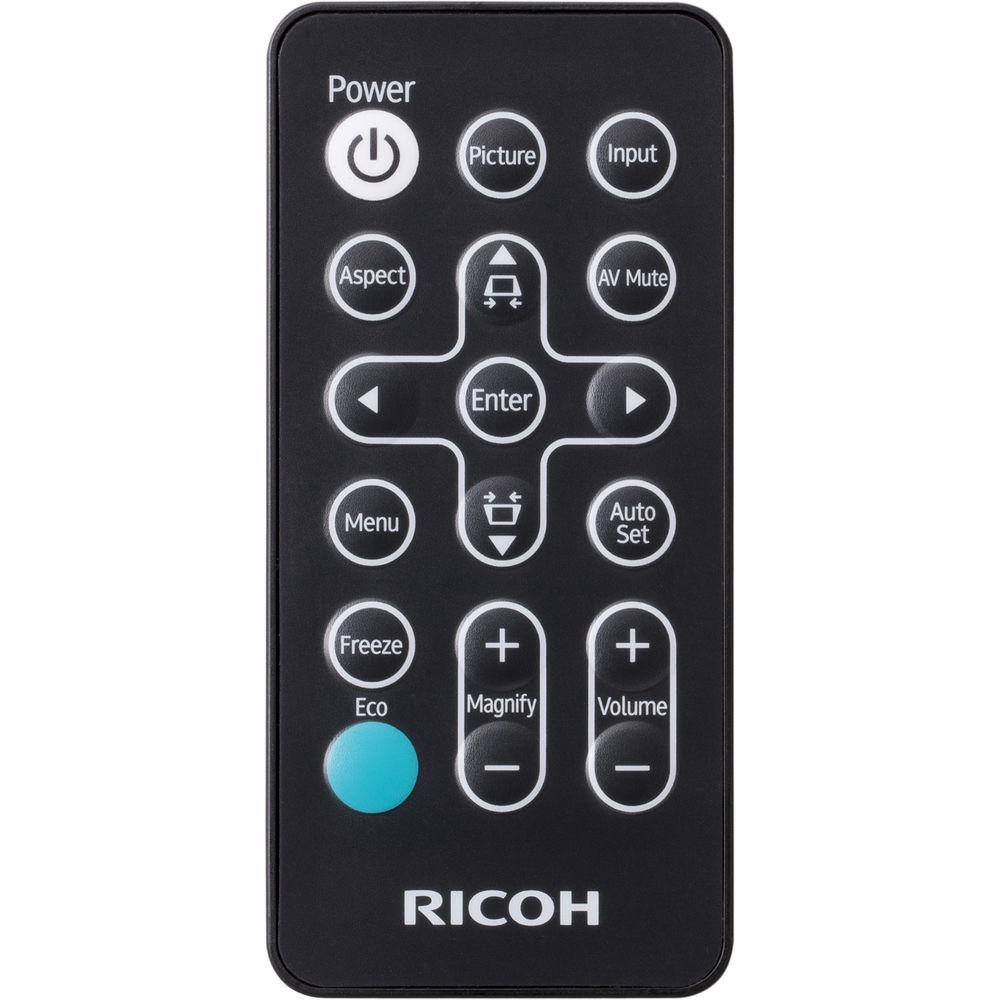

- High-quality lens provides clear and vibrant images for your audience, and the included remote makes operation easy for you
- With a high contrast mode up to 10,000:1 you can screen vivid color presentations
In the Box Ricoh PJ WX5460 4100-Lumen WXGA Single-Chip DLP Projector Power Cable RGB Cable Remote Control with Batteries Carrying Case Lens Cap Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh PJ WX5460 4100-Lumen WXGA Single-Chip DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh PJ WX5460 Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 | | Supported Resolutions | WXGA
XGA
SVGA
VGA
UXGA
SXGA | | Max Brightness | 4100 Lumens | | Contrast Ratio | 2000:1 | | Dynamic Contrast Ratio | 10,000:1 | | Scan | Horizontal: 30 to 100 kHz

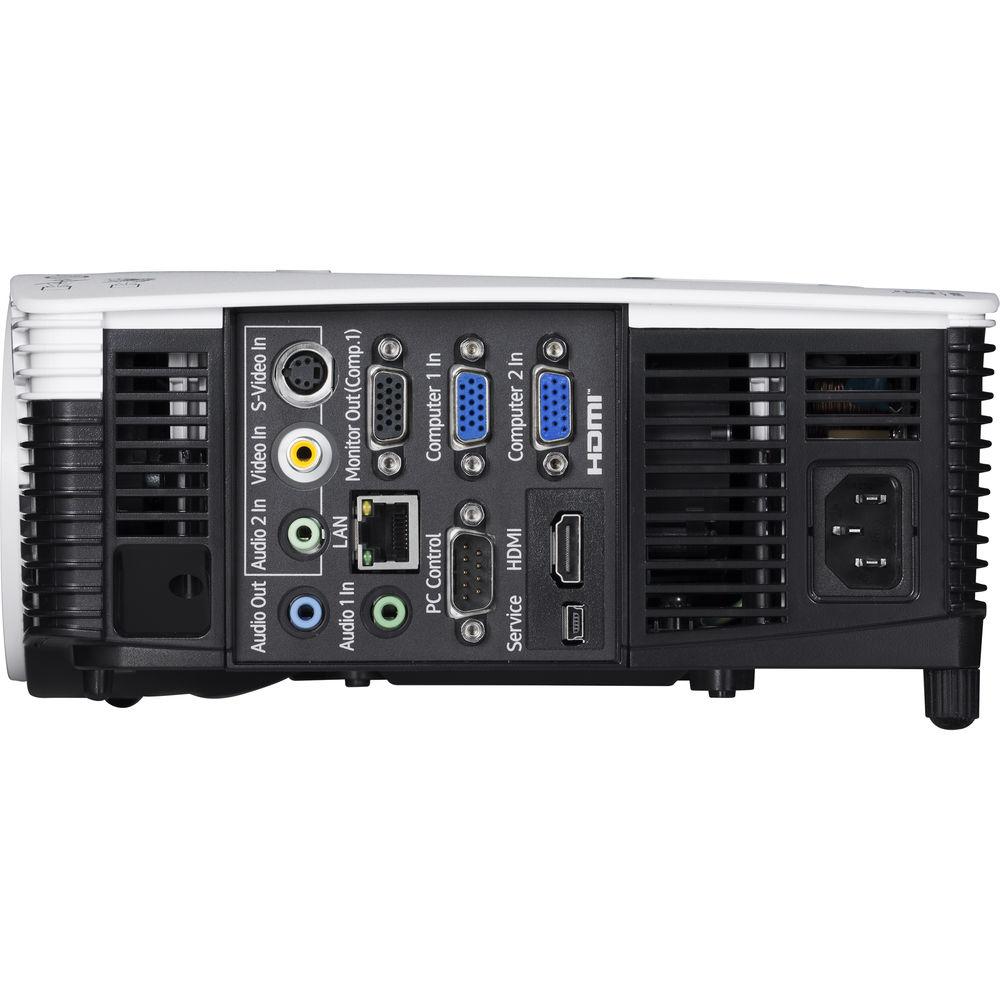

Vertical: 50 to 85 Hz | | | | Optical Zoom | Manual: 1.2x | | Throw Distance | 3.281 - 32.808' / 1 - 10 m | | Throw Ratio | 1.55 - 1.7:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video
1 x Component (3RCA) Video
1 x RS-232C (Unspecified Connector) Video
1 x 1/8" (3.5 mm) Mini Audio
1 x USB Type-B Female
1 x HDMI Video | | | | Lamp Power | 260 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 4000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 34 dB | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 347 W
Low Brightness: 292 W
Standby Mode (Lamp Off): 0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 80 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 80 - 80% | | Dimensions (W x H x D) | 12.4 x 4.0 x 8.8" / 314.2 x 101.7 x 223.5 mm | | Weight | 6.6 lb / 3 kg |
