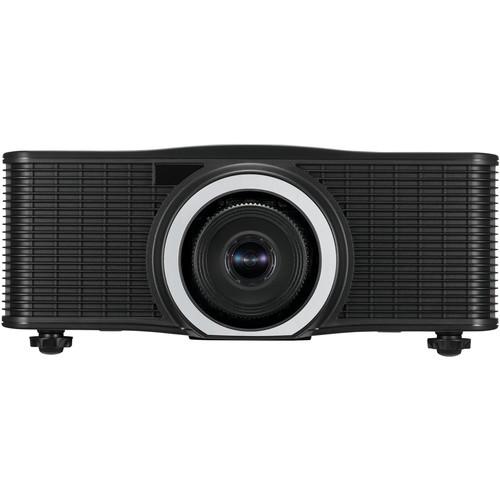

User Manual for Ricoh PJ WXL6280 6000-Lumen WXGA HD DLP Projector Click to enlarge the picture
Contents of the user manual for the Ricoh PJ WXL6280 6000-Lumen WXGA HD
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
|
User manual for the Ricoh PJ WXL6280 6000-Lumen WXGA HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|
Product description The PJ WXL6280 6,000-Lumen WXGA HD DLP Projector from Ricoh offers 6000 lumens of brightness, a high contrast 1100:1 ratio, and a 16:10 aspect ratio. It delivers high definition images and videos in larger conference rooms, auditoriums, churches, and other venues. Because it combines laser technology with the brilliance of digital light processing (DLP) projection, you can share your ideas with brighter colors and sharper lines for more lifelike representations. It features multiple PC and HDMI terminals, as well as optional lenses. It projects up to 300” diagonally with a crisp and clear display. The projector can display widescreen WXGA images with 1280 x 800 dpi resolution in more than 1.07 billion colors, and a 16:10 aspect ratio with high luminosity and 3D projection for even more lifelike reproductions without downscaling for HD widescreen TV signals, DVDs, and Blu-ray images.
The projector features a wireless remote with functions for the motorized lens (sold separately), such as horizontal and vertical shift, zoom, and focus, allowing you to fine-tune presentations in seconds. With keystone correction image adjustment, images are balanced to resolve distortion issues. You can also use the Eco mode option to adjust brightness on darker levels, using less energy without compromising image quality. It offers 20,000 hours of maintenance-free operation. Laser technology keeps heat emission to a minimum and replaces lamps that can burn out before or during presentations.
The PJ WXL6280 features connectivity up to 328’ via HDBaseT, allowing you to show uncompressed video in HD format over existing network cabling without degrading the signal or compromising image quality. - Projects up to 300" diagonally
- Laser projection displays videos, images, spreadsheets, and other presentations using 6000 lumens
- Displays WXGA images with 1280 x 800 dpi resolution along with HDMI connectivity, for crystal clear projection
- Choice of media source, including computers, TVs, DVDs, and more
- 360° Tilting to showcase images on floors, ceilings, angled walls, and more
- Laser life of 20,000 hours
- Laser technology replaces lamps that can burn out before or during presentations
- With keystone correction image adjustment, images are balanced to resolve distortion issues
- Eco mode option to adjust brightness on darker levels and use less energy without compromising image quality
- HDBaseT connectivity for uncompressed video in HD format over existing network cabling, without degrading the signal or compromising image quality
- Picture-by-Picture, Pincushion, Portrait Mode, Security Bar, Kensington Lock, 3D Projection (Frame sequential XGA/720p only), Eco Mode, Firmware Update
In the Box Ricoh PJ WXL6280 6000-Lumen WXGA HD DLP Projector (No Lens) RGB Cable Power Cord Remote Control with Batteries Lens Mount Cover Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh PJ WXL6280 6000-Lumen WXGA HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh WXL6280 Specs | | | Display System | 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA @ 60 Hz
Maximum: UXGA @ 60 Hz | | Max Brightness | 6000 Lumens | | Aspect Ratio | 16:10 | | Dynamic Contrast Ratio | 1100:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential (up to 720p) | | Color Wheel | 3-Segment (R, G, B) | | Scan | Horizontal: 15 to 91.1 kHz
Vertical: 24 to 85 kHz | | | | Projection Size | 50 - 300" / 127.00 - 762.00 cm | | | | Keystone Correction | Vertical: ± 20°
Horizontal: ± 20° | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | None | | | | Inputs/Outputs | 1 x HDBaseT (RJ45) Video (Input)
1 x HDMI Video (Input)
1 x DVI-D Video (Input)
1 x Component (3BNC) Video (Input)
1 x Unspecified Signal (DE-9) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input/Output) | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 35 dB
Low Brightness: 33 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 540 W
Low Brightness: 260 W | | Dimensions (W x H x D) | 19.0 x 7.3 x 20.0" / 48.3 x 18.5 x 50.8 cm | | Weight | 39.6 lb / 18.0 kg without lens |
