User Manual for Ricoh PJ X5460 4000-Lumen XGA Single-Chip DLP Projector Click to enlarge the picture
Contents of the user manual for the Ricoh PJ X5460 4000-Lumen XGA Single-Chip
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
 |
User manual for the Ricoh PJ X5460 4000-Lumen XGA Single-Chip contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|
Product description The compact PJ X5460 4000-Lumen XGA Single-Chip DLP Projector from Ricoh features a 10000:1 contrast ratio that provides high brightness and vivid colors for comfortable viewing. The robust design makes this projector durable and reliable, requiring minimal maintenance. The EcoMode ensures long lamp life, cutting replacement and energy costs. - Compact and Easy to Use
-
- Intuitive to operate requiring no special expertise
- With a footprint just larger than an A4 sheet of paper and weighing only 7 lb, it is easy to carry and set up the projector in any convenient location
- Built-in 10W speaker eliminates the need for an external sound system for your presentations
- Wide Choice of Connectivity Options
-
- HDMI interface lets you project high-quality images, including the latest 3D content (optional 3D glasses required)
- The projector has input ports for two computers as well as LAN connection
- For maximum convenience, an output port to a monitor and an audio-out connection for linking to an external sound system are provided
- Bright & Clear Images
-
- At 4000-lumen brightness, projected images are clear and easy to view over long periods
- BrilliantColor technology offers up to six-color processing, enhancing secondary colors
- Lamp life of up to 3,000 hours in standard mode can be extended to 4,000 hours, using EcoMode to lower lamp brightness and reduce energy consumption
- Reliable, Simple Operation
-
- Reliable build quality for all your presentation needs
- High-quality lens provides clear and vibrant images for your audience

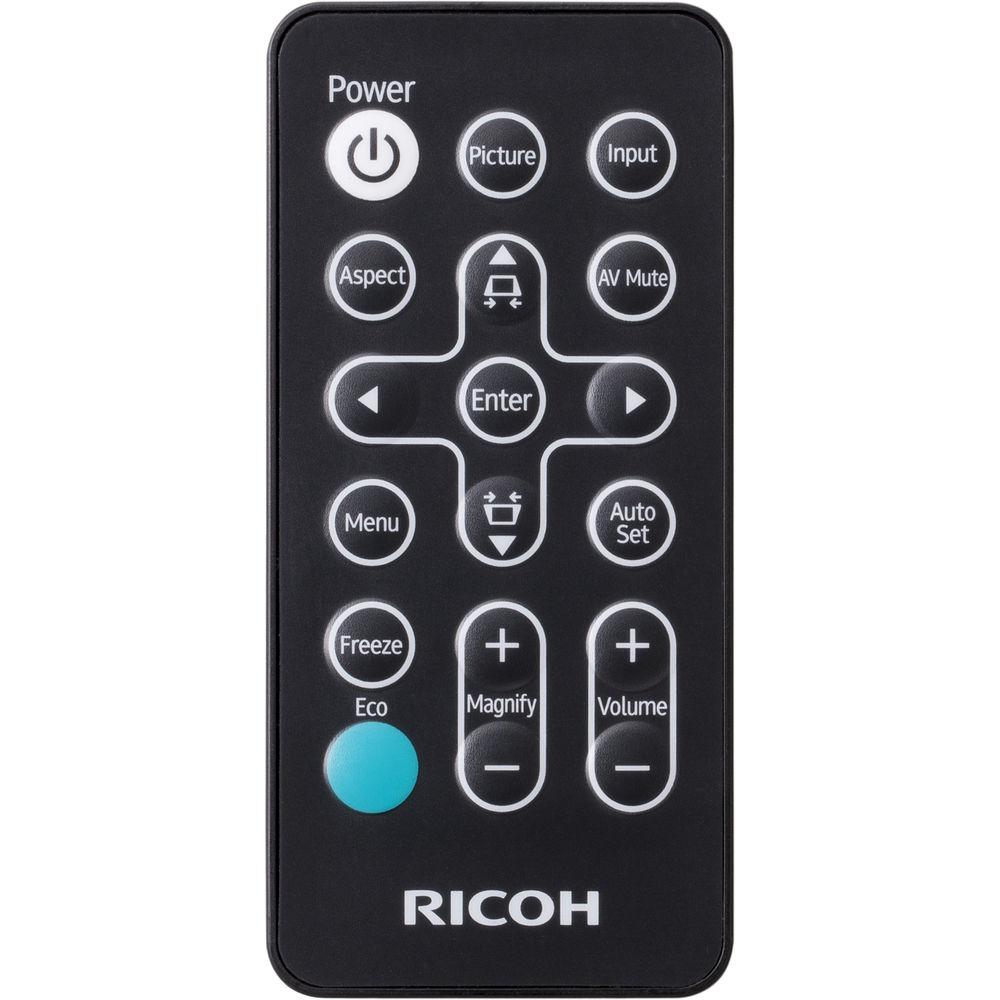

- The included remote control makes operation easy for you
- With a high-contrast mode up to 10,000:1, you can screen vivid color presentations
In the Box Ricoh PJ X5460 4000-Lumen XGA Single-Chip DLP Projector Power Cable RGB Cable Remote Control with Batteries Carrying Case Lens Cap Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh PJ X5460 4000-Lumen XGA Single-Chip DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh PJ X5460 Specs | | | Display System | 1-Chip 0.55" DLP | | Native Chip Resolution | 1024 x 768 | | Supported Resolutions | WXGA
XGA
SVGA
VGA
UXGA
SXGA | | Max Brightness | 4000 Lumens | | Contrast Ratio | 2200:1 | | Dynamic Contrast Ratio | 10,000:1 | | Scan | Horizontal: 30 to 100 kHz

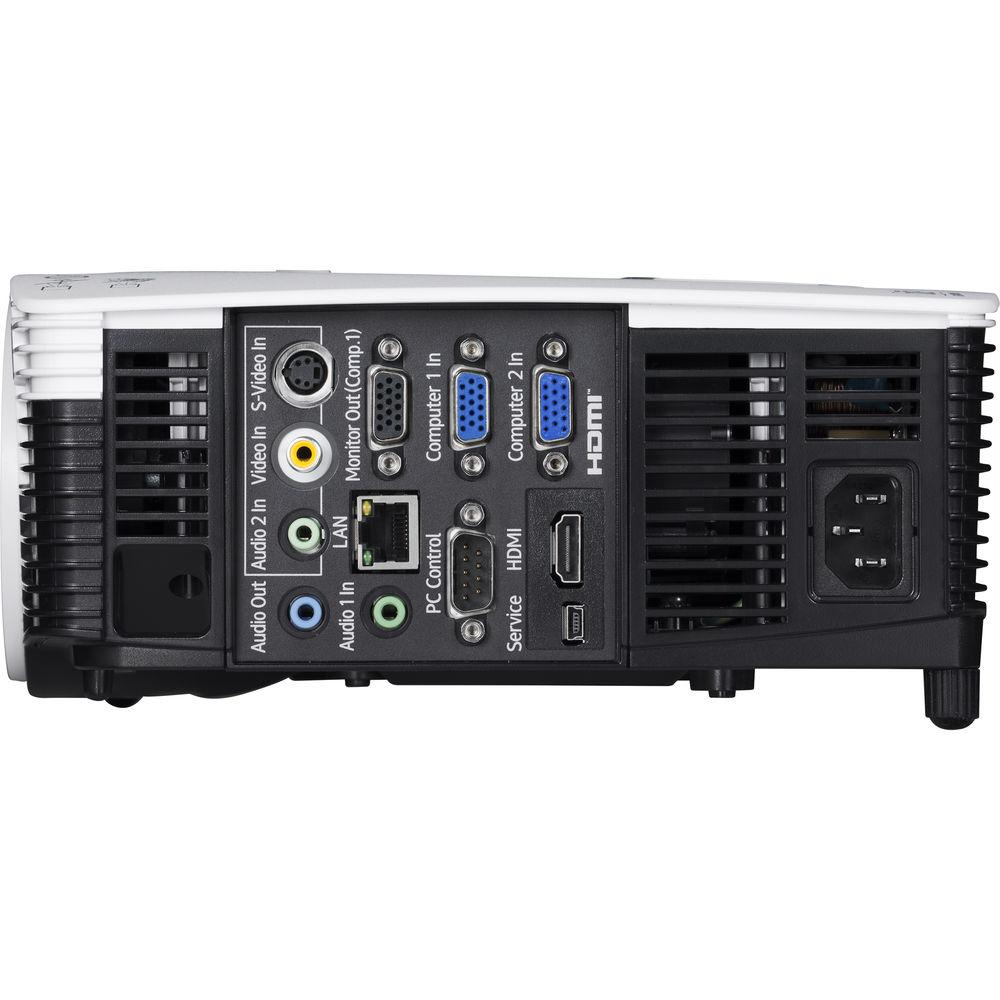

Vertical: 50 to 85 Hz | | | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.937 - 39.37' / 1.2 - 12 m | | Throw Ratio | 1.95 - 2.15:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video
1 x Component (3RCA) Video
1 x RS-232C (Unspecified Connector) Video
1 x 1/8" (3.5 mm) Mini Audio
1 x USB Type-B Female
1 x HDMI Video | | | | Lamp Power | 260 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 4000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 34 dB | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 347 W
Low Brightness: 292 W
Standby Mode (Lamp Off): 0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 80 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 80 - 80% | | Dimensions (W x H x D) | 12.4 x 4.0 x 8.8" / 314.2 x 101.7 x 223.5 mm | | Weight | 6.6 lb / 3 kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
