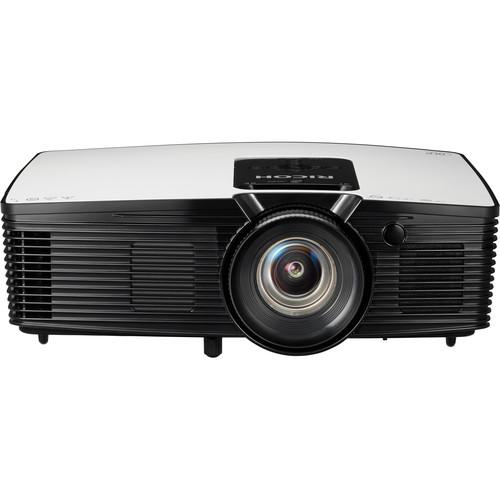

User Manual for Ricoh PJHDC5420 2500-Lumen Full HD DLP Projector Click to enlarge the picture
Contents of the user manual for the Ricoh PJHDC5420 2500-Lumen Full HD DLP
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
|
User manual for the Ricoh PJHDC5420 2500-Lumen Full HD DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|
Product description The PJHDC5420 2500-Lumen Full HD DLP Projector from Ricoh offers 2500 lumens of brightness, a high contrast ratio of 9,000:1, and a standard widescreen 16:9 aspect ratio. It delivers a Full HD visual experience, whether you are displaying movies and games on a home theater, showing educational videos at museums and science centers, or delivering presentations and videos at work. It provides high-end color technology. This entry-level home theater projector displays images the way they were intended, with accurate detail and life-like color. It projects a crisp and clear display up to 300” diagonally. It displays up to 1920 x 1080 dpi with HDMI connectivity for crystal-clear projection of information, as well as movies on DVDs and Blue-ray disks, without having to downscale.
The projector has an enhanced six-segment RGBRGB color wheel that maximizes color without artificially boosting white, resulting in deeper, richer colors, and lifelike natural skin tones. It supports multiple image and color correction modes, and adjusts to different surface colors and textures, ambient lighting conditions, and video formats. Through an embedded MHL (Mobile High Definition Link), it can be connected to tablets and mobile phones for seamless streaming of movies and games. A lamp life of 3,000 hours (up to 6,000 hours in Eco mode) provides both energy efficiency and low maintenance costs. - Projects up to 300" diagonally
- Displays Full HD (up to 1920 x 1080p) along with HDMI connectivity for crystal clear projection
- Suitable for visually demanding 2D and 3D applications
- Embedded MHL (Mobile High-Definition Link) helps in connecting the projector to tablets and mobile phones for seamless streaming of movies and games
- Can integrate the projector with other communication systems such as Ricoh interactive whiteboards, digital signage, and videoconferencing tools
In the Box Ricoh PJHDC5420 2500-Lumen Full HD DLP Projector RGB VGA Cable Lens Cap Remote Control with CR2025 Battery Carrying Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh PJHDC5420 2500-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh HDC5420 Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Max Brightness | 2500 Lumens | | Contrast Ratio | 9000:1 | | DLP Link 3D | Yes | | Color Wheel | 3-Segment (R/G/B) | | | | Focus | Manual | | Throw Distance | 27.9 - 379.5" / 70.866 - 963.93 cm | | Throw Ratio | 1068 - 1.451:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 260 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 6000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 33 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 352 W
Low Brightness: 280 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 12.4 x 4.1 x 8.8" / 31.5 x 10.4 x 22.4 cm | | Weight | 6.6 lb / 3.0 kg |
