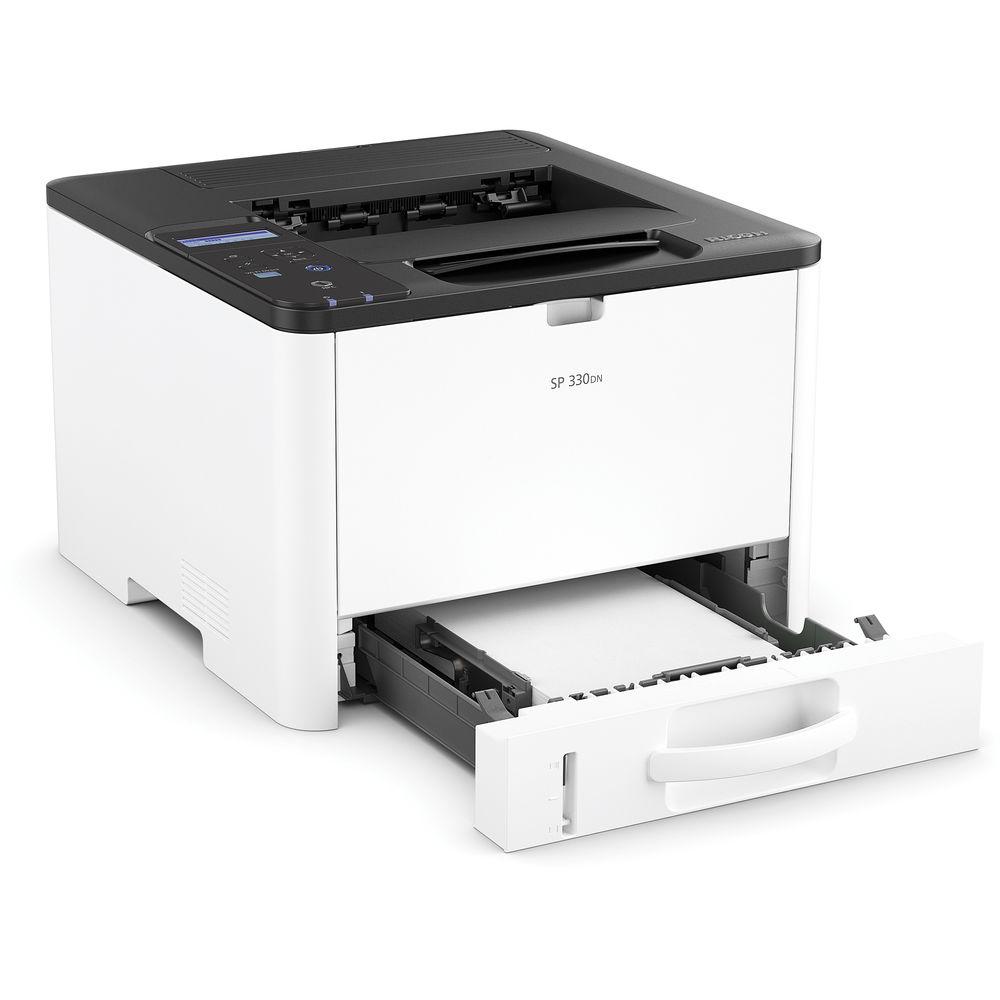

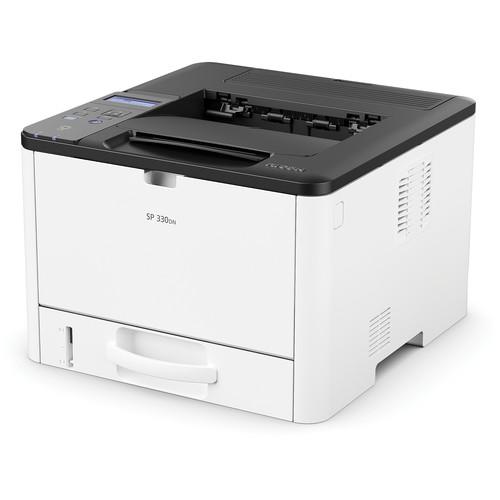

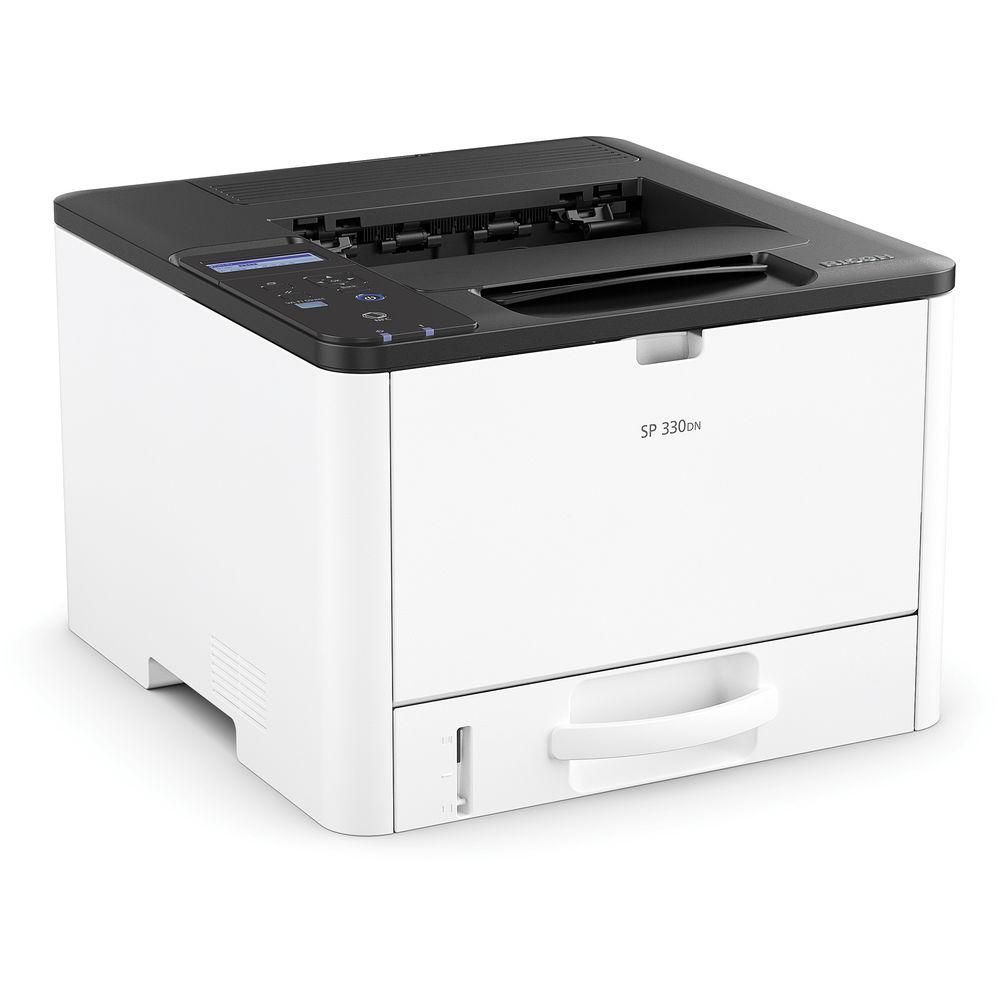

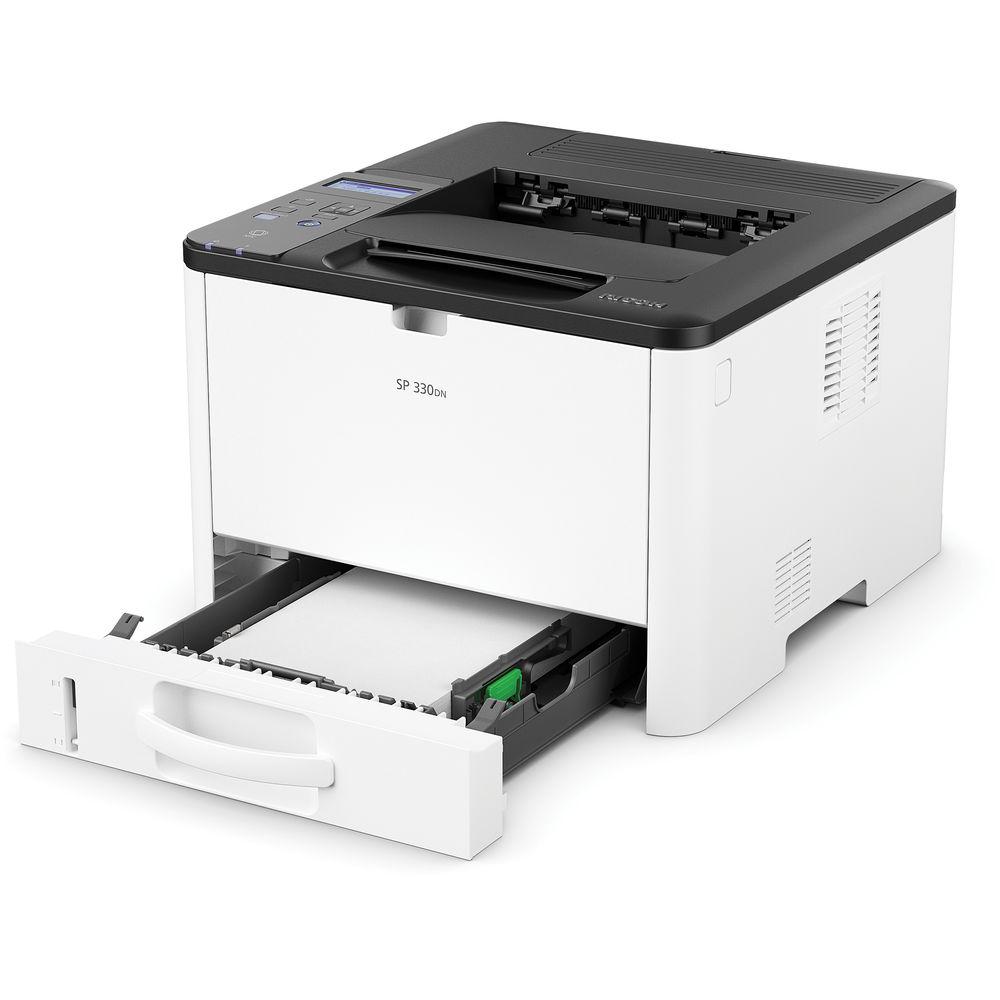

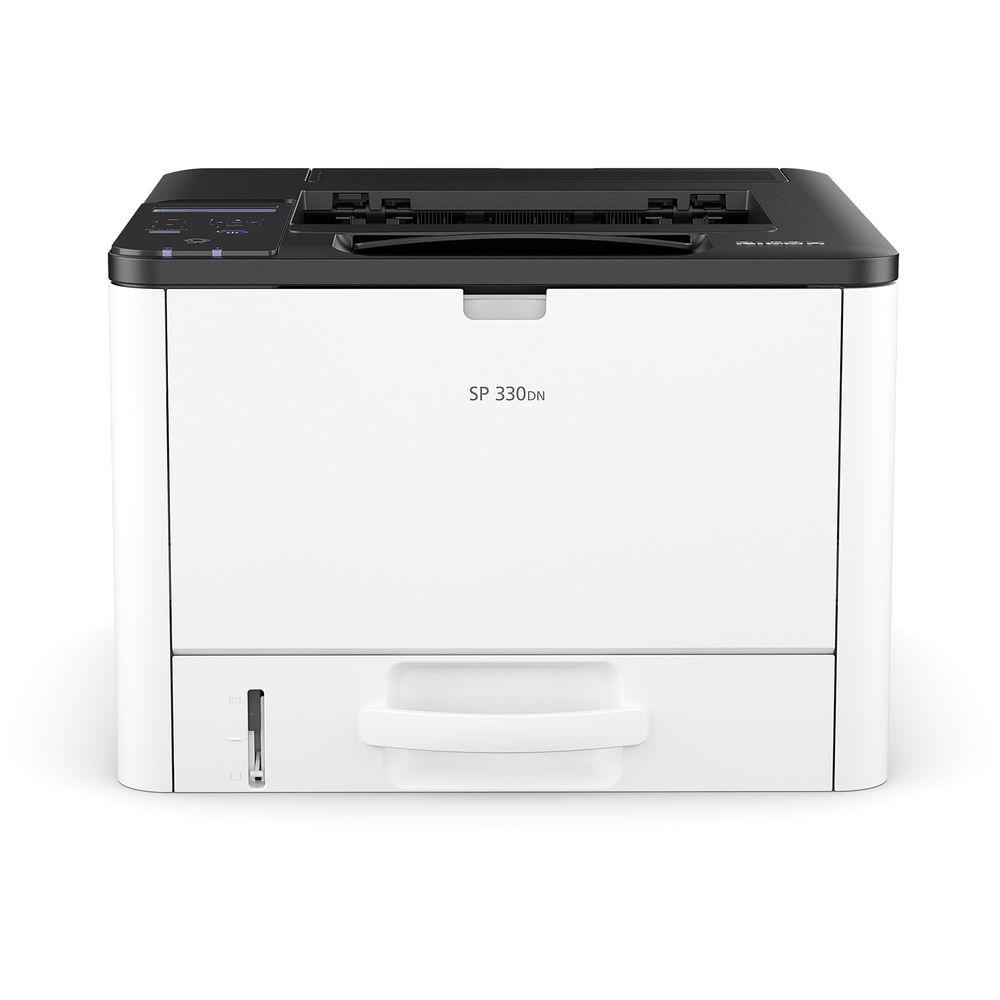

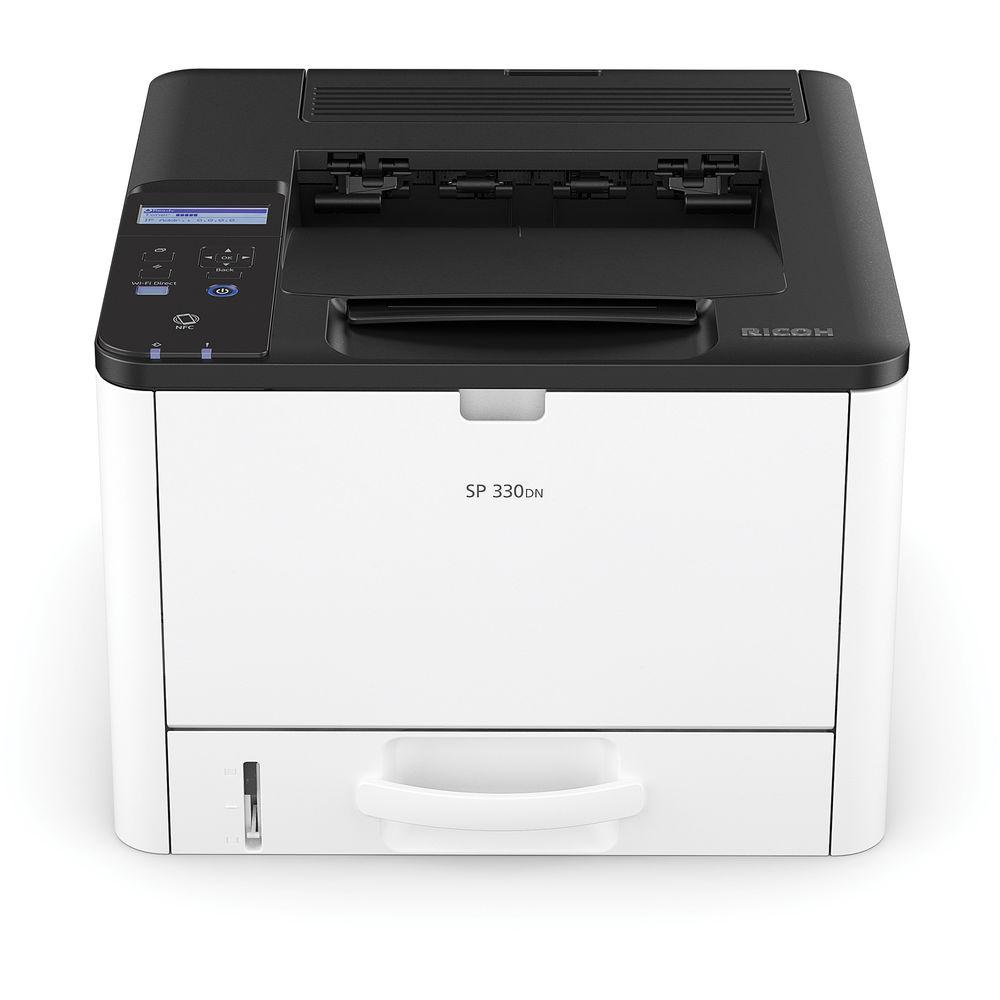

User Manual for Ricoh SP 330DN Monochrome Laser Printer Click to enlarge the picture
Contents of the user manual for the Ricoh SP 330DN Monochrome Laser Printer
- Product category: Laser Printers Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Laser Printers
 |
User manual for the Ricoh SP 330DN Monochrome Laser Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|
Product description The Ricoh SP 330DN Monochrome Laser Printer is capable of detailed black and white prints at speeds up to 34 ppm. It has a print resolution of 1200 x 1200 dpi and can work with 8.5 x 14" documents. Additionally, it is fast to get started with a first print out time of just 7.1 seconds. A four-line LCD control panel allows you to easily check the print status and settings. A 250-sheet input tray and a 50-sheet bypass tray are available for paper media handling and this capacity can be expanded to a total of 550 sheets with the 250-sheet paper feed unit (sold separately). Also, the printer has a monthly duty cycle of 35,000 pages for reliability and features USB 2.0 Type-B and Ethernet connectivity. This printer can also support wireless printing if you purchase the optional IEEE 802.11 Interface Unit Type P16. UPC: 026649082689 In the Box Ricoh SP 330DN Monochrome Laser Printer Starter Toner Power Cable Driver Disc Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh SP 330DN Monochrome Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh 408268 Specs | | | Printing Technology | Laser | | Print Resolution | 1200 x 1200 dpi
1200 x 600 dpi
600 x 600 dpi | | Print Speed | 34 ppm | | First Print Out Time | 7.1 Seconds | | Duplex Printing | Yes | | Color Type | Black | | Configuration | 1 x Toner | | Monthly Duty Cycle | 35,000 Pages | | Printer Language | Adobe PostScript 3, HP PCL 6, PCL 5e | | | | Paper Handling | Input Tray 1, Input Tray 2, Input Tray 3, Output Tray | | Media Sizes | Input Tray 1: 5.5 x 8.5 to 8.5 x 14" / 13.97 x 21.59 to 21.59 x 35.56 cm
Input Tray 1: 3.94 x 5.83 to 8.5 x 14" / 10.01 x 14.81 to 21.59 x 35.56 cm
Input Tray 2: 5.5 x 8.5 to 8.5 x 14" / 13.97 x 21.59 to 21.59 x 35.56 cm
Input Tray 1: 3.54 x 5.51 to 8.5 x 14" / 8.99 x 14.00 to 21.59 x 35.56 cm
Input Tray 1: 8.5 x 11 to 8.5 x 14" / 21.59 x 27.94 to 21.59 x 35.56 cm | | Media Weight | Input Tray 1: 52 to 162 gsm / 14 to 43 lb
Input Tray 2: 52 to 162 gsm / 14 to 43 lb
Input Tray 1: 60 to 105 gsm / 16 to 28 lb | | Paper Capacity | Input Tray 1: 250 Sheets
Input Tray 2: 50 Sheets
Output Tray: 125 Sheets | | Special Media Support | Envelopes | | | | Interface | RJ45, USB Type-B | | Processor | 350 MHz | | Memory | 128 MB | | Operating System Support | Linux, Windows, macOS/OS X | | | | AC Input Power | 120 VAC, 60 Hz | | Power Consumption | 960 W (Maximum)
0.66 W (Sleep) | | Dimensions (W x H x D) | 14.6 x 10.3 x 15.4" / 370.8 x 261.6 x 391.2 mm | | Weight | 28.7 lb / 13 kg | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 21.0 x 19.0 x 13.0" |
