User Manual for Ricoh SP 4510SF All-in-One Monochrome LED Printer Click to enlarge the picture
Contents of the user manual for the Ricoh SP 4510SF All-in-One Monochrome LED
- Product category: Laser Printers Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Laser Printers
|
User manual for the Ricoh SP 4510SF All-in-One Monochrome LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|

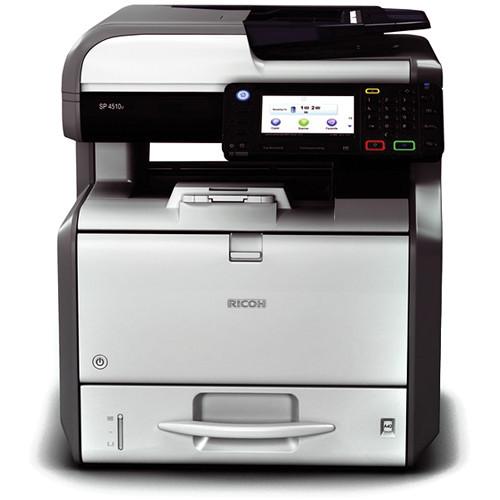

Product description Quickly print, scan, fax, and copy in a compact space with the SP 4510SF All-in-One Monochrome LED Printer from Ricoh. It is a very capable black & white printer with a print speed of up to 42 ppm and a 1200 x 1200 dpi resolution. Also, when working with custom print sizes it can produce an 8.5 x 35.4" document. Scanning is possible through the inclusion of a flatbed scanner and ADF. The scanner has a resolution of 1200 dpi and can work with color documents at a rate of 31 ipm. Additionally, the ADF has duplexing capabilities.
For quickly accessing commonly used settings, the SP 4510SF has a 4.3" color touchscreen with a variety of button and customizable shortcuts. Direct printing and scanning options are available as well with a USB host port for a storage device and a built-in SD card slot. Paper handling is also well done with a 500-sheet standard tray, a 100-sheet bypass tray, and 50-sheet ADF, as well as a 250-sheet output tray for batch jobs. And, for connecting to a computer it has both USB 2.0 and Ethernet options. - Optional Wi-Fi connectivity and hard drive accessories
- Scan directly to a variety of file formats, including searchable PDFs
- Scan-to-email, scan-to-folder, and other scan-to options are available
- Advanced security features and encryption
UPC: 026649073021 In the Box Ricoh SP 4510SF All-in-One Monochrome LED Printer Starter Toner Cartridge (~6,000 Pages) Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh SP 4510SF All-in-One Monochrome LED Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Ricoh SP 4510SF All-in-One Monochrome LED Printer can be downloaded in PDF format at the link stated below.
Technical parametersRicoh SP 4510SF Specs | Functions | Print, scan, copy, fax | | | | Printing Technology | LED with electro-photographic printing technology | | Print Color | Black & white | | Maximum Resolution | 1200 x 1200 dpi | | Print Speed | 42 ppm | | Toner Cartridge Compatibility | SP 4500HA Print Cartridge (~12,000 pages)
SP 4500A Print Cartridge (~6,000 pages)
SP 4500LA Print Cartridge (~3,000 pages) | | First Print Out Speed | 5.1 seconds | | Duplex Printing | Automatic | | Printer Duty Cycle | Monthly Duty Cycle: 150,000 prints
Monthly Volume: 10,000 prints | | Print Features | Scheduled print, auto continue, store and skip errored job, classification code, PDF direct print, sample/hold/stored and locked print, WSD printer, unauthorized copy prevention, poster print, collate, toner saving mode | | | | Scanner Type | ADF
Flatbed | | Image Sensor | CCD | | Scan Resolution | Color and Black & White: 600 dpi
TWAIN: 1200 dpi | | Scan Speed | Black & White: 32 ipm
Color: 31 ipm | | Maximum Scan Area | Flatbed: 8.5 x 11.7" (21.6 x 29.7 cm)
ADF: 8.5 x 23.6" (21.6 x 60.0 cm) | | Scan Modes | Text, text/line art, text/photo, photo, glossy photo color (26-bit), grayscale (8-bit) | | Scan File Format | JPEG, Single/Multi-Page TIFF, PDF, High Compression PDF, PDF/A | | Protocols | Network: TCP/IP
Email: SMTP, POP3, IMAP4
Scan-to-Folder: SMB, FTP, WSD Scanner | | Scanner Features | Scan-to-email with LDAP support, scan-to-folder, scan-to-URL, network TWAIN, scan-to-media (USB/SD, WSD scanner | | | | Maximum Resolution | 600 x 600 dpi | | Maximum Copy Size | ADF: 8.5 x 23.6" (21.6 x 60.0 cm) one-sided, 8.5 x 14.0" (21.6 x 35.6 cm) two-sided, 8.5 x 35.4" (21.6 x 90.0 cm) custom
Scanner Glass: 8.5 x 11.7" (21.6 x 29.7 cm) | | Input | ADF
Scanner glass | | Duplex Copying | Yes | | Quantity | 99 copies | | Reduction / Enlargement | 25-400% in 1% increments | | Copy Features | ID card copy, auto/manual density control, auto start, batch mode, mixed sized originals, copy modes (text, text/photo, photo), generation copy pale, combine pages, margin adjustment, auto tray switching, image rotation, electronic sort, job program (25), user codes (1,000) | | | | Modem Speed | 33.6 kbps with auto fallback | | Transmission Speed | G3: 2 seconds per page (JBIG compression) | | Fax Resolution | 200 dpi | | Fax Speed | Scanning: 22 spm | | Compression | MH, MR, MMR, JBIG | | Fax Memory | 4 MB (320 sheets) | | Speed Dial Locations | 1,000 standard, 2,000 with HDD
100 group dials | | Fax Features | Dual access, duplex reception, 12-hour backup, LAN-fax, internet fax (T.37), IP fax (T.38), fax forwarding to email/HDD/folder, PSTN, PBX | | | | Paper Handling | Paper tray
Bypass tray
Automatic reversing document feeder
Output tray | | Paper Capacity | Input Tray: 500 sheets
Bypass Tray: 100 sheets
ADF: 50 sheets
Output Tray: 250 sheets | | Paper Types | Plain, recycled, thick, OHP (transparency), letterhead, preprinted, and envelopes | | Paper Sizes | Paper Tray: 3.94 x 5.82" (10.0 x 14.8 cm) to 8.5 x 14.0" (21.6 x 35.6 cm)
Bypass Tray: 2.37 x 5.00" (6.0 x 12.7 cm) to 8.50 x 35.43" (21.6 x 90.0 cm) | | Media Weight | 14-43 lb bond (52-162 gsm)
90 lb index | | | | Interfaces | USB 2.0
Ethernet (1000/100/10BASE-T) | | Direct Print Capable | USB 2.0 host port
SD card slot | | Mobile Printing Features | Smart Device Print & Scan App | | OS Compatibility | Windows XP, Vista, 7, 8, 8.1, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2
Mac OS X 10.5 or later PS only
UNIX filters for Sun Solaris
HP-UX
Red Hat Linux
SCO OpenServer
IBM AIX
SAP R/3, Citrix Presentation Server 4.5, Citrix XenApp 5.0, 6.0, 6.5 | | Memory | Standard: 1 GB RAM
Maximum: 1.5 GB RAM | | Processor | 533 MHz | | Fonts | PCL6: 45 fonts
PCL5: 45 fonts + 13 international fonts
PostScript3: 136 fonts | | Printer Language | Standard: PCL6/5e, Adobe PostScript 3, PDF Direct
Optional: XPS | | Hard Drive Capacity | 320 GB (optional) | | Network Protocol Support | TCP/IP (IPv4, IPv6) | | Network Security | Administrator and user authentication, user lockout, auto logout, menu protect, data encryption (address book/user authentication information/job logs/temporary stored document/network interface settings/system settings), network security via TCP/IP access control, encrypted communications using SSL/TLS, IPsec, or IEEE 802.1X, SMNPv3, IPP authentication, Kerberos authentication encryption, Wireless LAN security (WEP, WPA2/WPA2-PSK), protect document data with locked and stored print, unauthorized copy prevention, compulsory security stamp, HDD data overwrite and encryption | | Wireless Configuration | Optional: IEEE 1284, IEEE 802.11a/b/g/n | | Account and System Management | @Remote, SmartDeviceMonitor, Device Manager NX, Web SmartDeviceMonitor, Web Image Monitor | | | | Display | 4.3" (10.9 cm) color touchscreen | | Power Requirements | 120 VAC, 60 Hz, 10 A | | Power Consumption | Operating: 616 W
Sleep Mode: 1 W | | Typical Power Consumption | 1.756 kWh/week | | Warm-Up Time | 14 seconds
Recovery from Sleep Mode: 9.2 seconds | | Certifications | ENERGY STAR
EPEAT Silver | | Dimensions | 16.5 x 16.8 x 19.0" (41.9 x 42.7 x 48.4 cm) | | Weight | 50.6 lb (23 kg) | | | | Package Weight | 59.6 lb | | Box Dimensions (LxWxH) | 23.0 x 21.0 x 21.0" |
